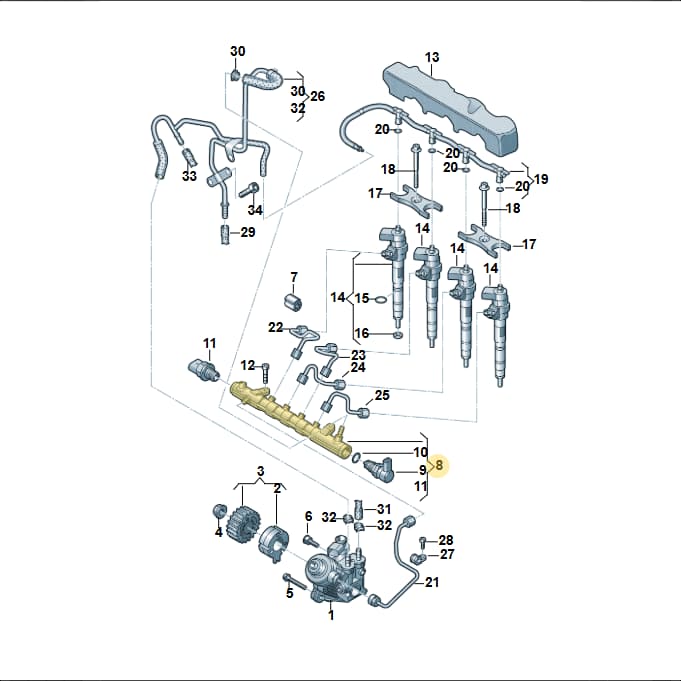

Number 8 marks the part’s position in the exploded view.

Product overview

Genuine OEM Volkswagen Fuel Rail, part number 04L130089B. This component distributes high-pressure fuel to the injectors. It is a critical part of the fuel injection system, ensuring consistent fuel pressure. Genuine OEM fuel rails ensure precise fuel delivery and system integrity.

Technical details

Category
Fuel System
Country of origin
Germany
Customs (HS) code
84099900
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
31.5 × 8 × 6 cm
Shipping weight
1.32 kg

Parts diagram & fitment

27 vehicles

Fuel Rail — locate 04L130089B Volkswagen Fuel Rail | Genuine OEM in the official exploded view and explore the surrounding assembly.

Parts in this assembly(28)
  • 1Pump 04L130755E
  • 3Pulley 04L130101C
  • 4Collar Nut WHT002244
  • 5Screw N10714501
  • 6Bolt N10665001
  • 7Damper 03L130118
  • 9Valve 057130764AB
  • 10Seal Ring N90451902
  • 11Sensor 04L906054F
  • 12Screw N91128701
  • 13Insulation 04L130380F
  • 14Injector 04L130277AA
  • 15Seal Ring WHT000884
  • 16Seal Ring 059130519
  • 17Clamp Piec 04L130216
  • 18Screw WHT005478
  • 19Pipe 04L130235N
  • 20Seal Ring WHT006497A
  • 21Pipe 04L130321
  • 22Pipe 03L130301AR
  • 23Pipe 03L130301AS
  • 24Pipe 03L130301AT
  • 25Pipe 03L130301BA
  • 26Fuel Line 04L201360M
  • 27Clamp N91171101
  • 28Bolt N10335206
  • 30Clamp N90986501
  • 32Clamp 4B0422379
Compatible / alternative parts(12)
  • Part 04L130755D
  • Part 04L130755E
  • Part WHT005478
  • Part 1J0919133B
  • Part 03L130301AA
  • Part 03L130301AB
  • Part 03L130301AC
  • Part 03L130301AR
  • Part 03L130301AS
  • Part 03L130301AT
  • Part 03L130301BA
  • Part 03L130301T

Diagrams & fitment data powered by oemdiagrams.com
