Product overview

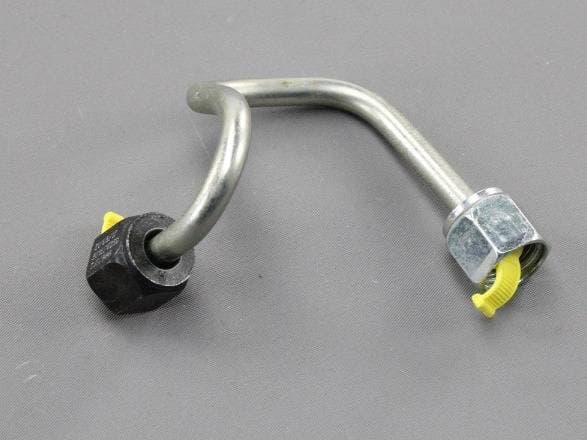

Genuine OEM Volkswagen Fuel Pressure Pipe, part number 04L130301D. This high-pressure pipe is responsible for delivering precisely pressurized fuel from the common rail or fuel pump to the fuel injector at the cylinder. It is an integral part of the engine's fuel delivery system. Constructed from robust steel, this pipe is designed to withstand extreme fuel pressures and engine vibrations. Weighing approximately 0.066 kg, its precise bends and fittings ensure correct routing and a secure, leak-free connection. Opting for a genuine OEM fuel pressure pipe guarantees the correct material strength, internal diameter, and exact geometry for safe and reliable fuel delivery.

Technical details

Category
Fuel System
Customs (HS) code
84099900
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
9.5 × 6.5 × 4.5 cm
Shipping weight
0.07 kg

Parts diagram & fitment

8 vehicles

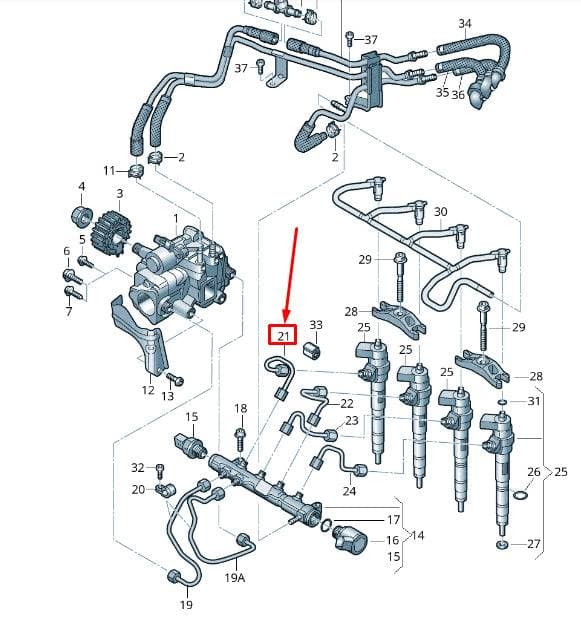

Pressure Pipe — locate 04L130301D Volkswagen Fuel Pressure Pipe | Fuel System in the official exploded view and explore the surrounding assembly.

Parts in this assembly(31)
  • 1Pump 04B130755K
  • 2Clamp N91208604
  • 3Pulley 04L130101
  • 3Pulley 04L130101C
  • 4Collar Nut WHT002244
  • 5Bolt N10665001
  • 7Screw N10714501
  • 8Fuel Line 04L130308F
  • 11Clamp 4B0422379
  • 12Bracket 04L130389
  • 13Bolt N91203201
  • 14Rail 04L130093
  • 15Sensor 04L906054F
  • 16Valve 04L130764B
  • 17Seal Ring WHT008239
  • 18Screw N91128701
  • 19Pipe 04L130321D
  • 20Clamp N91171101
  • 22Pipe 04L130302D
  • 23Pipe 04L130303D
  • 24Pipe 04L130304D
  • 25Injector 04L130277BA
  • 26Seal Ring WHT000884
  • 27Seal Ring 04L130519B
  • 28Clamp Piec 03L130216
  • 29Screw WHT005490
  • 30Pipe 04L130235L
  • 31Seal Ring WHT007480A
  • 32Bolt N10335206
  • 33Damper 03L130118
  • 37Bolt N10405604
Compatible / alternative parts(12)
  • Part 04L130302D
  • Part 04L130303D
  • Part 04L130304D
  • Part WHT005490
  • Part N10714501
  • Part 04L130235L
  • Part 04L130321D
  • Part 04L130093
  • Part WHT002244
  • Part 1H0919133
  • Part 04B130755K
  • Part 04L130277AP

Diagrams & fitment data powered by oemdiagrams.com

04L130301D Volkswagen Fuel Pressure Pipe | Fuel System is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
