04L131521 Connecting Pipe
€56.13 excl. VAT
- 04L131521This pageNot stocked
Jul 2015 - 04L131521AFCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

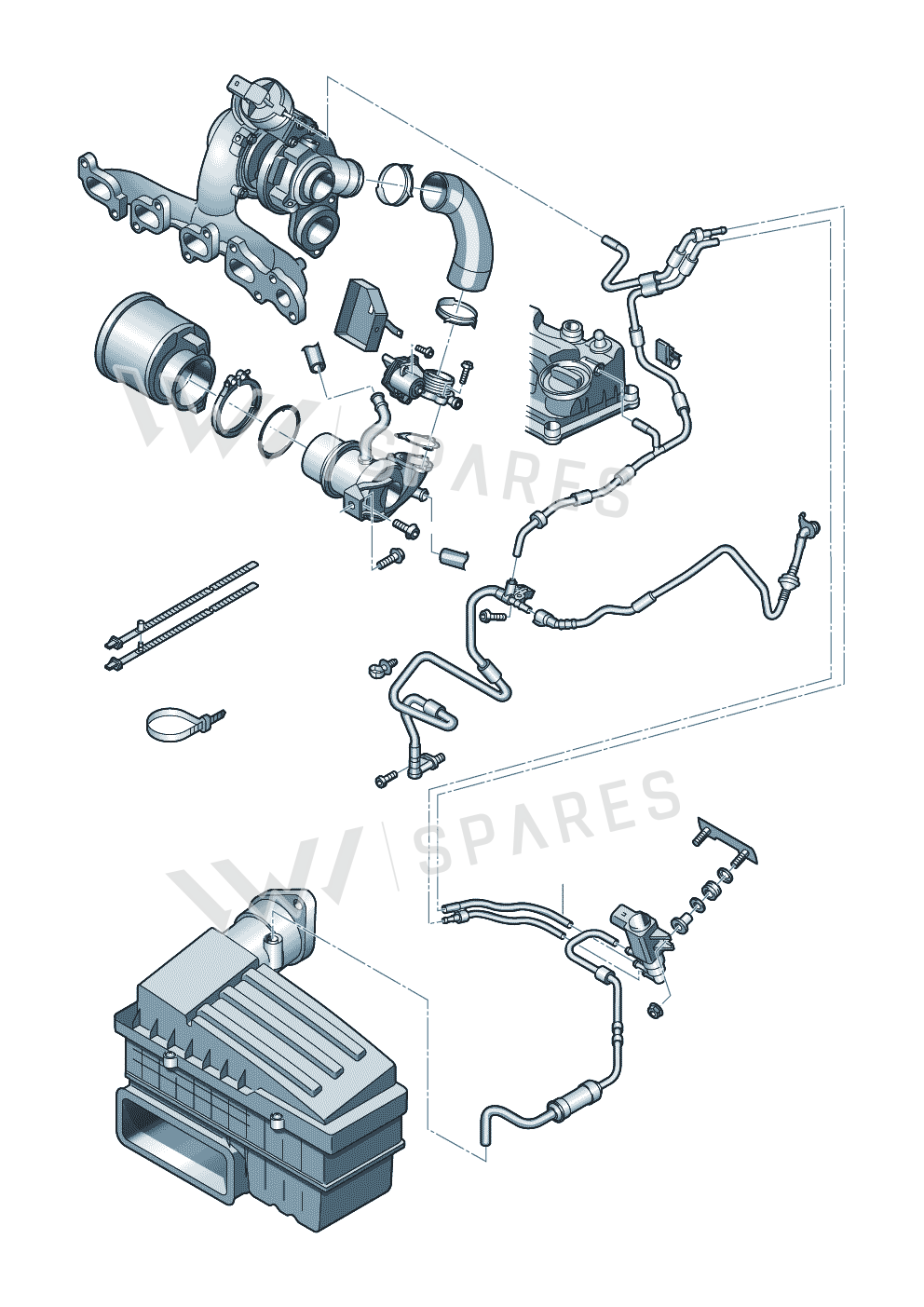

8 vehiclesConnecting Pipe — locate Connecting Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Radiator 04L131512D
- 1Radiator 04L131512P
- 1Radiator 04L131512F
- 2Valve 04L131501C
- 3Sleeve 04L971461AC
- 3Sleeve 04L971461C
- 4Seal 04L131547A
- 5Bolt N10196103
- 6Screw N10664901
- 7Screw N10669502
- 8Part 04L131513C
- 9Seal 04L131547
- 10Clamp 04L131455A
- 12Clamp 04L131539
- 13Hose 04L129456D
- 14Bracket N10507901
- 16Screw N10285505
- 17Clip 04L131213
- 18Hose 04L131051C
- 19Hose 04L131051B
- 19Hose 04L131055B
- 20Collar Nut N01508210
- 21Converter 1K0906627B
- 22Spacer 1K0906435
- 23Thrustring 1K0906139
- 24Grommet 046131887
- 25Thrustring 1K0906139A
- 26Plate 046130405
- 33Screw N10717001
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi TTS Coupe 2.0 | 2014-2023 | 11 | 1 | TR1 |
| Golf 1.4 BlueMotion | 2014-2017 | 11 | 1 | |
| Golf Estate 1.4 | 2014-2017 | 11 | 1 | |
| Golf Estate | 2013-2017 | 11 | 1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 11 | 1 | |
| Octavia | 2012-2017 | 11 | 1 | |
| Audi A3 Sportback | 2012-2016 | 11 | 1 | |
| Leon ST Stylance | 2012-2016 | 11 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Pipe is fitted on: Audi TTS Coupe 2.0 2014-2023; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Golf Estate 2013-2017; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016.
