Product overview
Genuine OEM Audi Fuel Lines Set, part number 04L201360AG. This component is part of the vehicle's fuel system, responsible for delivering fuel from the tank to the engine. The set comprises the specific hoses and connectors required for proper fuel flow. Constructed from materials resistant to fuel and high pressures, these lines ensure a reliable and leak-free connection. Genuine OEM fuel lines are critical for maintaining the integrity of the fuel system and preventing leaks, ensuring safe and efficient engine operation.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 70 × 30 × 9 cm
- Shipping weight
- 0.76 kg
Parts diagram & fitment

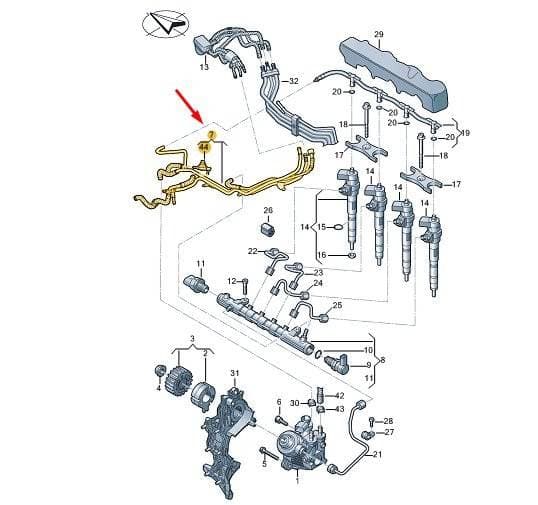

4 vehicles1 Set Fuel Pipes — locate 04L201360AG Audi Fuel Lines Set | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(44)
- 1Pump 04L130755E
- 3Pulley 04L130101C
- 3Pulley 04L130101
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Bolt N10665001
- 7Pipe 04L201360AH
- 7Pipe 04L201360AK
- 7Pipe 04L201360AQ
- 7Pipe 04L201360AF
- 8Rail 04L130089G
- 9Valve 04L130764D
- 9Valve 04L130764C
- 10Seal Ring WHT008239
- 10Seal Ring WHT004740A
- 11Sensor 04L906054E
- 11Sensor 04L906054
- 12Screw N91128701
- 13Repair Set 8W0201214AE
- 14Injector 04L130277AB
- 14Injector 04L130277AC
- 14Injector 04L130277AE
- 14Injector 04L130277AF
- 14Injector 04L130277AL
- 14Injector 04L130277AM
- 14Injector 04L130277N
- 14Injector 04L130277P
- 15Seal Ring WHT000884
- 16Seal Ring 059130519
- 17Clamp Piec 04L130216
- 18Screw WHT005478
- 19Pipe 04L130235K
- 20Seal Ring WHT006497
- 21Pipe 04L130321
- 22Pipe 03L130301AR
- 23Pipe 03L130301BF
- 24Pipe 03L130301BG
- 25Pipe 03L130301BA
- 26Damper 03L130118
- 27Clamp N91171101
- 28Bolt N10335206
- 29Bump Strip 04L130380J
- 30Clamp 4B0422379
- 44Sensor 04B906054C
Diagrams & fitment data powered by oemdiagrams.com
04L201360AG Audi Fuel Lines Set | Genuine OEM is fitted on: Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020.
