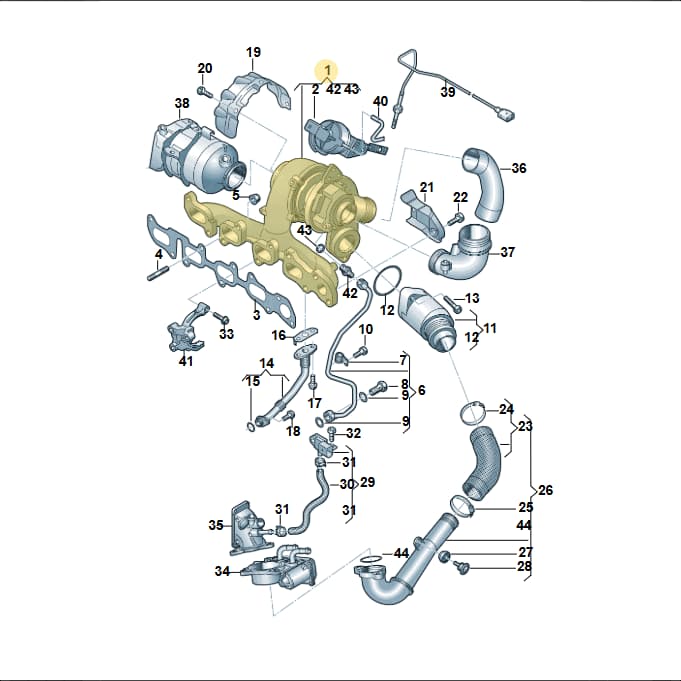

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Exhaust Manifold With Turbocharger, part number 04L253020Q. This integrated unit combines the exhaust manifold with the turbocharger, a critical component for increasing engine power by forcing compressed air into the combustion chambers. It is located in the engine's exhaust system. The turbocharger housing is typically made of cast iron and steel for high-temperature resistance. Genuine OEM parts ensure precise fitment and the correct material properties for the demanding exhaust environment.
Catalogue entry: TURBO; For vehicles with variable.
Fitted with: 04L253039B SEAL, N90894601 hexagon nut, self-locking, N0138133 seal ring, N10524202 BOLT, 04L145117 SEAL. RING, WHT007702 SEAL. RING, 04B145757 SEAL, N90592705 BOLT, N90737107 BOLT, N10680303 BOLT.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42 × 23 × 25 cm
- Shipping weight
- 11.08 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
11 vehiclesExhaust Manifold With Turbocharger — locate 04L253020Q Volkswagen Exhaust Manifold With Turbocharger | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 2Repair Kit 04L198716
- 3Seal 04L253039B
- 4Bolt N90188902
- 5Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 6Pipe 04L145771H
- 7Clamp 04L145807
- 8Screw N0210719
- 9Seal Ring N0138133
- 10Bolt N10524202
- 11Damper 04L131111M
- 12Seal Ring 04L145117
- 13Screw N91117502
- 14Oil Line 04L145736E
- 15Seal Ring WHT007702
- 16Seal 03L145757G
- 17Bolt N90592705
- 18Bolt N90737107
- 19Heat Sh 04L129969K
- 20Bolt N10680303
- 21Heat Sh 04L129969J
- 23Hose 04L145828D
- 24Clamp N10518801
- 25Clamp N10619801
- 26Chargetube 04L145762CC
- 27Grommet 867129669
- 28Socket 3C0145830
- 29Hose 04L145049AJ
- 30Hose 04L131850A
- 31Clamp N90686701
- 32Bolt N10335206
- 33Bolt N90440003
- 44Seal Ring 04L145119A
Compatible / alternative parts(12)
Vehicle fitment table11
Europe (10)
| Vehicle | Years | Pos. |
|---|---|---|
| Kodiaq | 2024- | 1 |
| Tiguan 2.0 | 2023- | 1 |
| Tarraco FR | 2018-2024 | 1 |
| Kodiaq | 2018-2022 | 1 |
| Audi Q3 quattro | 2018-2019 | 1 |
| Tiguan 2.0 4Motion | 2017-2024 | 1 |
| Arteon | 2017-2023 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 1 |
| Touran 2,0 BlueMotion | 2015-2024 | 1 |
| Passat saloon | 2014-2024 | 1 |
Other markets (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04L253020Q Volkswagen Exhaust Manifold With Turbocharger | Genuine OEM is fitted on: Kodiaq 2024-; Tiguan 2.0 2023-; Tarraco FR 2018-2024; Kodiaq 2018-2022; Audi Q3 quattro 2018-2019; Tiguan 2.0 4Motion 2017-2024; Arteon 2017-2023; Tiguan 2.0 4Motion 2016-2024; Touran 2,0 BlueMotion 2015-2024; Passat saloon 2014-2024; Tiguan 2.0 4Motion 2016-2022.
