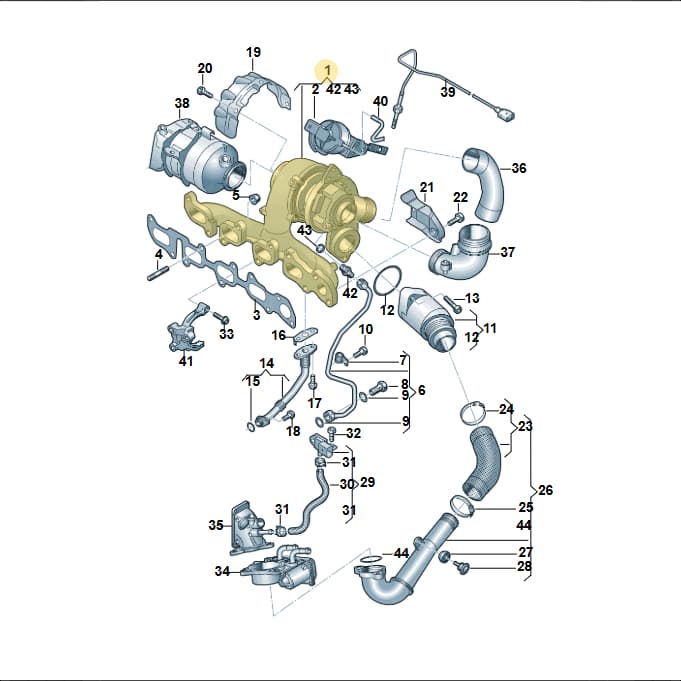

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Turbocharger Assembly, part number 04L253020S. This assembly is a critical component of the engine's exhaust and intake systems, forcing compressed air into the cylinders to increase power. It is mounted to the exhaust manifold. Manufactured to exact specifications for optimal performance and durability. Genuine OEM parts ensure precise fit and function.
Catalogue entry: TURBO; For vehicles with variable.
Fitted with: 04L253020A TURBO, 04L253020H TURBO, 04L253020HX TURBO, 04L253020SX TURBO, 04L253039B SEAL, N90188902 BOLT, N90894601 hexagon nut, self-locking, N0138133 seal ring, N10524202 BOLT, 04L145117 SEAL. RING, WHT007702 SEAL. RING, 04B145757 SEAL.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 84148011
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42 × 28 × 22 cm
- Shipping weight
- 10.68 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
20 vehiclesExhaust Manifold With Turbocharger — locate 04L253020S Volkswagen Turbocharger Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Part 04L253016H
- 1Part 04L253020A
- 1Part 04L253020H
- 1Part 04L253020HX
- 1Part 04L253020SX
- 3Seal 04L253039B
- 4Bolt N90188902
- 5Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 6Pipe 04L145771J
- 7Clamp 04L145807
- 8Screw N0210717
- 9Seal Ring N0138133
- 10Bolt N10524202
- 11Damper 04L131111T
- 12Seal Ring 04L145117
- 13Screw N91117502
- 14Oil Line 04L145736E
- 15Seal Ring WHT007702
- 16Seal 03L145757G
- 17Bolt N90592705
- 18Bolt N90737107
- 19Heat Sh 04L129969K
- 20Bolt N10680303
- 21Heat Sh 04L129969J
- 23Hose 04L145828D
- 24Clamp N10518801
- 25Clamp N10619801
- 26Chargetube 04L145762AD
- 27Grommet 867129669
- 28Socket 3C0145830
- 29Hose 04L145049L
- 30Hose 04L131850A
- 31Clamp N90686701
- 32Bolt N10335206
- 33Bolt N90440003
- 42Union 028145786
- 43Seal Ring N90707001
- 44Seal Ring 04L145119A
Vehicle fitment table20
Europe (20)
| Vehicle | Years | Pos. |
|---|---|---|
| Kamiq | 2019- | 1 |
| T-Cross 1,0 | 2018-2024 | 1 |
| Arona FR | 2017- | 1 |
| Ibiza FR | 2017- | 1 |
| T-Roc BlueMotion | 2017-2024 | 1 |
| Polo 1.0 BlueMotion | 2017-2024 | 1 |
| Karoq | 2017-2022 | 1 |
| Octavia | 2017-2020 | 1 |
| Ateca Style | 2016- | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 1 |
| golf 2.0 | 2016-2020 | 1 |
| Leon ST Stylance | 2016-2020 | 1 |
| Audi A3 Sportback | 2016-2020 | 1 |
| Audi A3 Cabrio | 2016-2020 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 1 |
| Touran 2,0 BlueMotion | 2015-2024 | 1 |
| Golf Sportsvan 1.6 | 2014-2020 | 1 |
| Golf Estate | 2013-2017 | 1 |
| Golf 1.4 BlueMotion | 2012-2017 | 1 |
| Leon ST Stylance | 2012-2016 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04L253020S Volkswagen Turbocharger Assembly | Genuine OEM is fitted on: Kamiq 2019-; T-Cross 1,0 2018-2024; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi Q2 2.0 TDI 2016-2018; Touran 2,0 BlueMotion 2015-2024; Golf Sportsvan 1.6 2014-2020; Golf Estate 2013-2017; Golf 1.4 BlueMotion 2012-2017; Leon ST Stylance 2012-2016.
