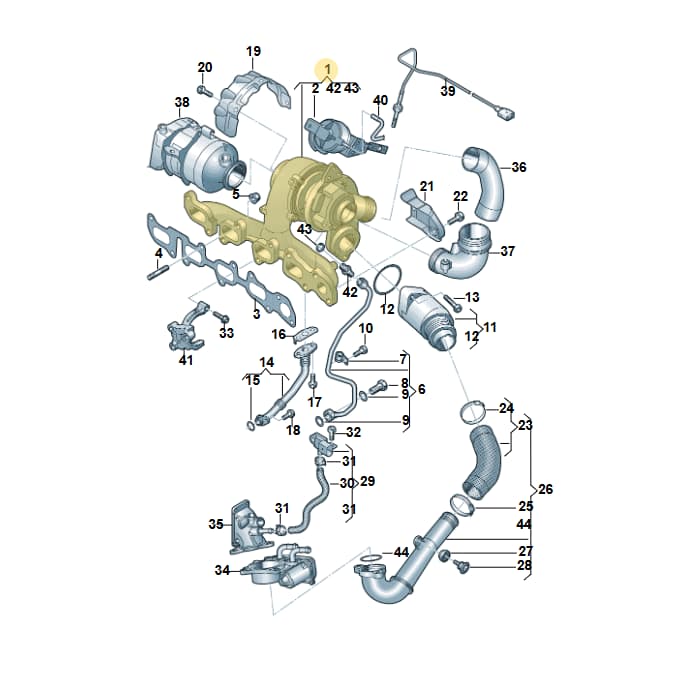

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Exhaust Manifold With Turbocharger, part number 04L253056P. This integrated unit combines the exhaust manifold with the turbocharger, a critical component for increasing engine power by forcing compressed air into the combustion chambers. It is located in the engine's exhaust system. The turbocharger housing is typically made of cast iron and steel for high-temperature resistance. Genuine OEM parts ensure precise fitment and the correct material properties for the demanding exhaust environment.
Catalogue entry: TURBO CUPA; For vehicles with variable.
Fitted with: 04L253010T TURBO, 04L253010TX TURBO, 04L253056PX TURBO, 04L253039B SEAL, 04L253039G SEAL, N90894601 hexagon nut, self-locking, N0138133 seal ring, N10524202 BOLT, 04L145117 SEAL. RING, WHT007702 SEAL. RING, 04B145757 SEAL, N90592705 BOLT.
Technical details
- Category
- Exhaust
- Country of origin
- Germany
- Customs (HS) code
- 84213200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 41.5 × 27 × 21 cm
- Shipping weight
- 14.47 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CUNA, DJGA
Equipment codes
- DK7
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesExhaust Manifold With Turbocharger — locate 04L253056P Volkswagen Exhaust Manifold With Turbocharger | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Part 04L253056PX
- 3Seal 04L253039G
- 4Bolt N90188902
- 5Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 6Pipe 04L145771H
- 7Clamp 04L145807
- 8Screw N0210717
- 9Seal Ring N0138133
- 10Bolt N10524202
- 11Damper 04L131111AD
- 12Seal Ring 04L145117
- 13Bolt N10124408
- 14Oil Line 04L145736E
- 15Seal Ring WHT007702
- 16Seal 04B145757
- 17Bolt N90592705
- 18Bolt N90737107
- 19Heat Sh 04L129969K
- 20Bolt N10680303
- 21Heat Sh 04L129969J
- 23Hose 04L145828D
- 24Clamp N10518801
- 25Clamp N10619801
- 26Chargetube 04L145762AD
- 27Grommet 867129669
- 28Socket 3C0145830
- 29Hose 04L145049L
- 30Hose 04L131850A
- 31Clamp N90686701
- 32Bolt N10335206
- 33Bolt N90440003
- 42Union 028145786
- 43Seal Ring N90707001
- 44Seal Ring 04L145119A
Compatible / alternative parts(12)
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Octavia | 2017-2020 | 1 | |
| golf 2.0 | 2016-2020 | 1 | |
| Audi A3 Sportback | 2016-2020 | 1 | 1 |
| Audi A3 Cabrio | 2016-2020 | 1 | |
| Leon ST Stylance | 2016-2020 | 1 | |
| Sharan BlueMotion | 2015-2022 | 1 | |
| Alhambra Stylance | 2015-2022 | 1 | |
| Passat saloon | 2014-2024 | 1 | |
| Audi TTS Coupe 2.0 | 2014-2023 | 1 | 1 |
| Audi Q3 2.0 TDI | 2014-2019 | 1 | |
| Golf Estate | 2013-2017 | 1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 1 | |
| Tiguan 4Motion | 2011-2018 | 1 |
