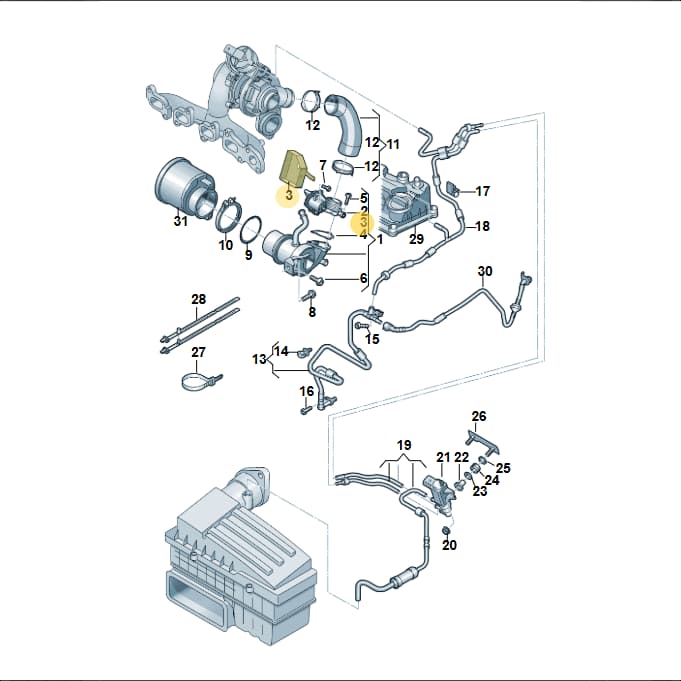

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Mat, part number 04L971461AP. This mat provides insulation and protection against high temperatures for sensitive components. It is positioned near the turbocharger assembly. Weighing approximately 0.012 kg, this mat is designed to withstand extreme heat. Genuine OEM parts ensure proper material composition and shape for effective heat insulation and durability in high-temperature engine environments.
Catalogue entry: Sleeve.
Technical details
- Category
- Intake & Turbo
- Country of origin
- Germany
- Customs (HS) code
- 57032999
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 24 × 12 × 4.5 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- DFFA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
31 vehiclesHeat Protection Sleeve — locate 04L971461AP Volkswagen Heat Protection Mat | Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Radiator 04L131512BQ
- 2Valve 04L131501M
- 4Seal 04L131547A
- 5Bolt N10196103
- 6Screw N10664901
- 7Screw N10669502
- 8Screw N10717001
- 9Seal 04L131547
- 10Clamp 04L131455A
- 11Pipe 04L131521AE
- 12Clamp 04L131539
- 13Hose 04L129456D
- 14Bracket N10507901
- 16Screw N10285505
- 17Clip 04L131213
- 18Hose 04L131051C
- 19Hose 04L131055J
- 20Collar Nut N01508210
- 21Converter 1K0906627B
- 22Spacer 1K0906435
- 23Thrustring 1K0906139
- 24Grommet 046131887
- 25Thrustring 1K0906139A
- 26Plate 046130405
- 27Cable Tie 3W0971838
- 28Binder 4A0820199
- 32Part 04L131513C
Compatible / alternative parts(12)
Vehicle fitment table31
Europe (30)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Kodiaq | 2024- | 3 | ||
| Tiguan 2.0 | 2023- | 3 | ||
| Kamiq | 2019- | 3 | 1 | |
| T-Cross 1,0 | 2018-2024 | 3 | ||
| Tarraco FR | 2018-2024 | 3 | 1 | |
| Kodiaq | 2018-2022 | 3 | 1 | |
| Audi Q3 quattro | 2018-2019 | 3, 21 | 1 | |
| Arona FR | 2017- | 3 | 1 | |
| Ibiza FR | 2017- | 3 | 1 | |
| T-Roc BlueMotion | 2017-2024 | 3 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 3 | 1 | |
| Polo 1.0 BlueMotion | 2017-2024 | 3 | ||
| Arteon | 2017-2023 | 3 | ||
| Karoq | 2017-2022 | 3 | 1 | |
| Octavia | 2017-2020 | 3 | 1 | |
| Ateca Style | 2016- | 3 | 1 | |
| Tiguan 2.0 4Motion | 2016-2024 | 3 | ||
| Kodiaq | 2016-2024 | 3 | 1 | |
| golf 2.0 | 2016-2020 | 3 | ||
| Leon ST Stylance | 2016-2020 | 3 | 1 | |
| Audi A3 Sportback | 2016-2020 | 3, 8 | 1 | |
| Audi A3 Cabrio | 2016-2020 | 8 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 3, 10 | 1 | |
| Touran 2,0 BlueMotion | 2015-2024 | 3 | ||
| Sharan BlueMotion | 2015-2022 | 3 | 1 | |
| Alhambra Stylance | 2015-2022 | 3 | 1 | PR:G0K,G0L, |
| caddy kombi | 2015-2020 | 30 | 1 | |
| Passat saloon | 2014-2024 | 3 | ||
| Golf Sportsvan 1.6 | 2014-2020 | 3 | ||
| Leon ST Stylance | 2012-2016 | 3 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 3 |
Diagrams & fitment data powered by oemdiagrams.com
04L971461AP Volkswagen Heat Protection Mat | Turbocharger is fitted on: Kodiaq 2024-; Tiguan 2.0 2023-; Kamiq 2019-; T-Cross 1,0 2018-2024; Tarraco FR 2018-2024; Kodiaq 2018-2022; Audi Q3 quattro 2018-2019; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi Q2 2.0 TDI 2016-2018; Touran 2,0 BlueMotion 2015-2024; Sharan BlueMotion 2015-2022; Alhambra Stylance 2015-2022; caddy kombi 2015-2020; Passat saloon 2014-2024; Golf Sportsvan 1.6 2014-2020; Leon ST Stylance 2012-2016; Tiguan 2.0 4Motion 2016-2022.
