Product overview
Genuine OEM Audi timing chain slide rail, part number 057109509F. This component provides essential guidance and support for the timing chain, maintaining proper tension and alignment within the engine timing assembly. It is located as indicated in the timing drive system diagram. Genuine OEM parts are critical for this application to ensure the correct material hardness and surface finish, preventing premature chain wear and maintaining optimal engine timing synchronization.
Technical details
- Category
- Belts, Chains & Tensioners
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11.9 × 4.5 × 1.7 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment

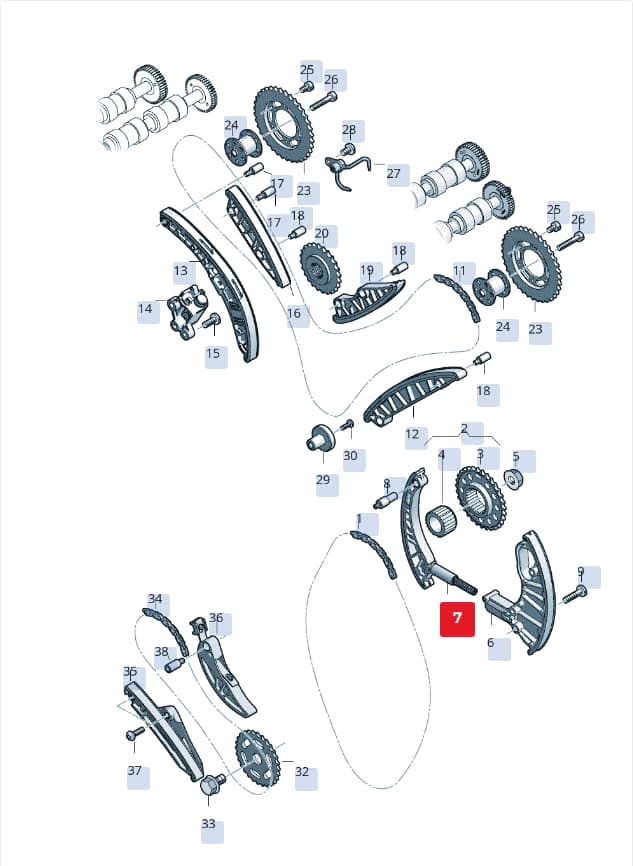

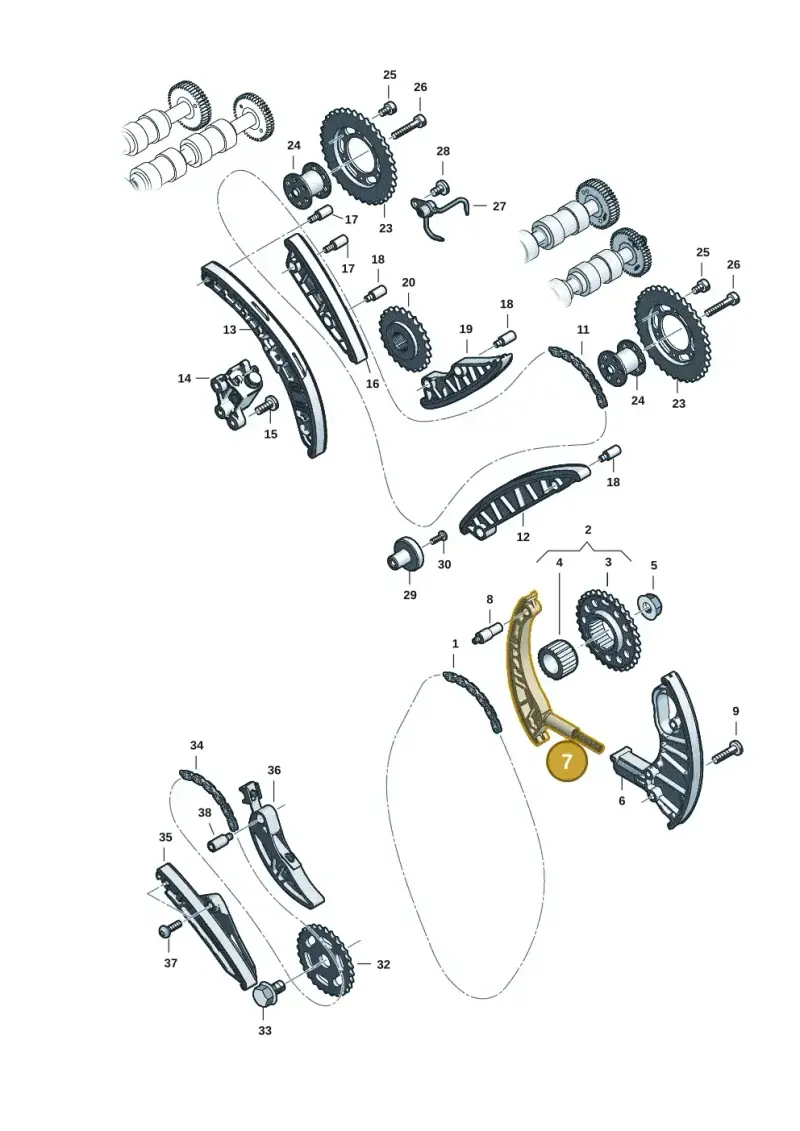

3 vehiclesSlide Rail — locate 057109509F Audi Timing Chain Slide Rail | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 057109507E — the later replacement part.
