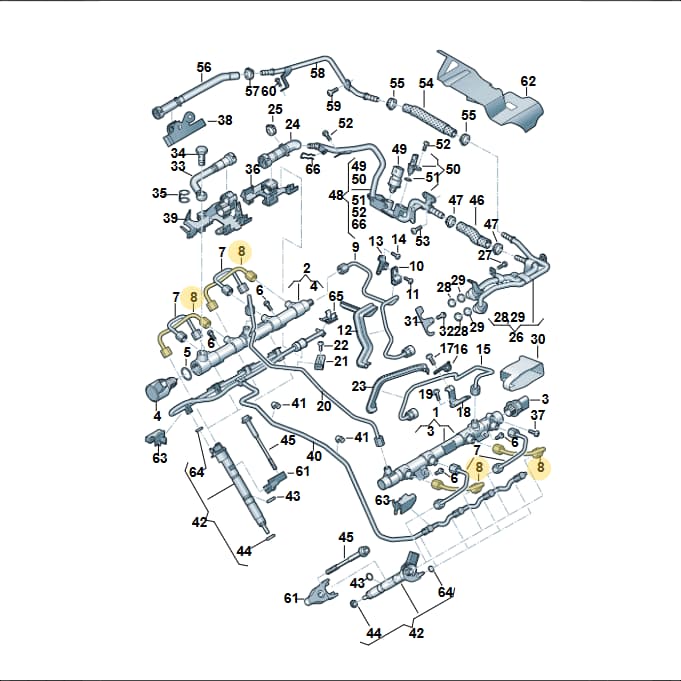

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Fuel Rail Pressure Pipe, part number 057130241AD. This critical component is responsible for delivering highly pressurized fuel from the fuel pump to the fuel rail and individual fuel injectors. It ensures a consistent and precise supply of fuel for optimal engine combustion and performance. These pipes are typically made from robust, high-strength metal to withstand extreme fuel pressures. Choosing a genuine OEM fuel rail pressure pipe guarantees the correct material specifications, precise bending geometry, and secure connections, which are vital for preventing dangerous fuel leaks and maintaining the integrity of the high-pressure fuel system.
Catalogue entry: PIPE 2-4-5-7 ×4.
Fitted with: 057130089AH RAIL, 057130089AL RAIL, N10554005 SCREW, 057130241AC PIPE, 057130309BA FUEL LINE, 057130309BB FUEL LINE, 057130310S FUEL LINE, 057130310T FUEL LINE, 057130090AK RAIL, 057130090AL RAIL, 057130312N FUEL LINE, 057130312P FUEL LINE.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 13.5 × 6 × 4 cm
- Shipping weight
- 0.08 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- TI4
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesPressure Pipe — locate 057130241AD Audi Fuel Rail Pressure Pipe | High Pressure in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Rail 057130089AL
- 2Rail 057130090AL
- 3Sensor 03N906054C
- 4Valve 057130764AS
- 5Seal Ring WHT008239
- 6Screw N10554005
- 7Pipe 057130241AC
- 9Fuel Line 057130312P
- 10Bracket 057130401H
- 11Bolt N10335206
- 12At Heat Reflective Mat Heat Reflective Mat Heat 057131991AB
- 13Bracket 057130381AH
- 14Bolt N10405604
- 15Fuel Line 057130309BB
- 18Bracket 057130381AG
- 20Fuel Line 057130310T
- 21Bracket 057130401F
- 23At Heat Reflective Mat Heat Reflective Mat Heat 057131991AH
- 23At Heat Reflective Mat Heat Reflective Mat Heat 057131991AG
- 24Fuel Line 057130299AD
- 25Clamp N90926401
- 26Fuel Line 057130300CE
- 27Bolt N10700201
- 28Seal Ring WHT006974
- 29Seal Ring WHT006974A
- 30At Heat Reflective Mat Heat Reflective Mat Heat 057131991T
- 31Bracket 057130319C
- 33Fuel Line 057130296C
- 34Screw N0210717
- 35Seal Ring 059130120
- 36Bracket 057130131AS
- 38Bracket 057130131AC
- 39Bracket 057130131AD
- 40Hose 057130218AH
- 40Hose 057130218AD
- 41Clip 059131694H
- 42Injector 057130277BJ
- 43Seal Ring WHT000884
- 44Seal Ring 059130519B
- 45Bolt WHT004923B
- 46Hose 057130313M
- 48Fuel Line 057130299AT
- 49Sensor 059906054L
- 50Sensor 079919523
- 51Seal Ring WHT002287C
- 53Bolt N10680302
- 54Hose 057130314J
- 55Clamp N90770201
Compatible / alternative parts(12)
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 8 | 4 | TI4 |
| touareg | 2017-2023 | 8 | 4 | |
| Audi A8L | 2017-2022 | 8 | 4 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 8 | 4 | TI4 |
Diagrams & fitment data powered by oemdiagrams.com
057130241AD Audi Fuel Rail Pressure Pipe | High Pressure is fitted on: Audi Q8 Quattro 3,0 2018-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q7 qu. 3.0 TDI 2015-2019.
