Target · Diagram
Find this reference above

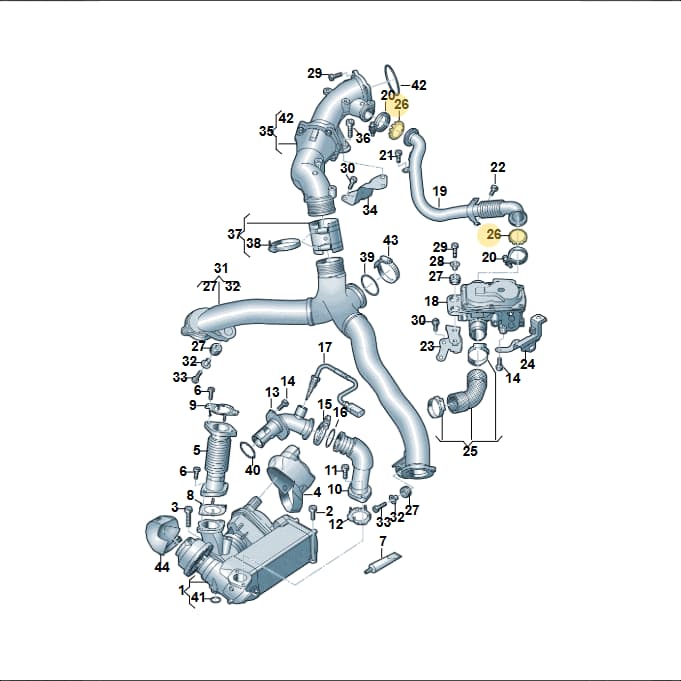

Number 26 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Bypass Valve Pipe Seal, part number 057145625C. This O-ring seal is designed to prevent leaks in the bypass valve pipe assembly. It ensures a tight, secure connection within the engine's air management system. Weighing approximately 0.0016 kg and measuring 35mm in diameter, this small but critical component is made to factory specifications. Using a genuine OEM seal guarantees the correct material composition and precise dimensions for optimal sealing performance and long-term reliability, preventing costly air or fluid leaks.
Technical details
- Category
- Gaskets & Seals
- Customs (HS) code
- 40169300
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.5 × 3.5 × 0.5 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
4 vehiclesSeal — locate 057145625C Audi Bypass Valve Pipe Seal | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(42)
- 1Cooler 057131511AA
- 1Cooler 057131511J
- 2Bolt N10451408
- 3Bolt N10787601
- 4Heat Insul 057131531E
- 5Pipe 057131525AL
- 6Screw N91196201
- 7Paste G052112A3
- 8Seal 059131358G
- 9Seal 057131816B
- 10Pipe 057131530G
- 12Seal 059131599R
- 13Pipe 057131534AG
- 14Bolt N10405604
- 15Clamp 1K0253725E
- 16Seal 059131547R
- 18Valve 057145829E
- 19Pipe 057145741J
- 20Clamp 070131548C
- 21Bolt N10451405
- 22Screw N10170302
- 23Bracket 057145383B
- 24Bracket 057145263C
- 25Hose 057145737C
- 27Grommet 059131887B
- 28Spacer 057129734A
- 29Bolt N10413405
- 29Bolt N10700201
- 31Pipe 057145673K
- 32Bush 059129734C
- 33Bolt N10156206
- 34Bracket 057145283C
- 35Bypassvalv 057145901M
- 36Screw N91187301
- 37Hose 057145555C
- 38Clamp N10619801
- 39Seal 057145113E
- 40Seal 057131815B
- 41Seal Ring N90809102
- 42Seal 057145818A
- 43Clip 059253139D
- 44Heat Insul 057131531F
Compatible / alternative parts(9)
- Part 4M0145119
- Part 057145774C
- Part 057145774E
- Part 057145113E
- Part 057145818A
- Part 057145417C
- Part 059145119C
- Part 057145215B
- Part 057145865
Diagrams & fitment data powered by oemdiagrams.com
057145625C Audi Bypass Valve Pipe Seal | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi A8L 2017-2022; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
