Product overview

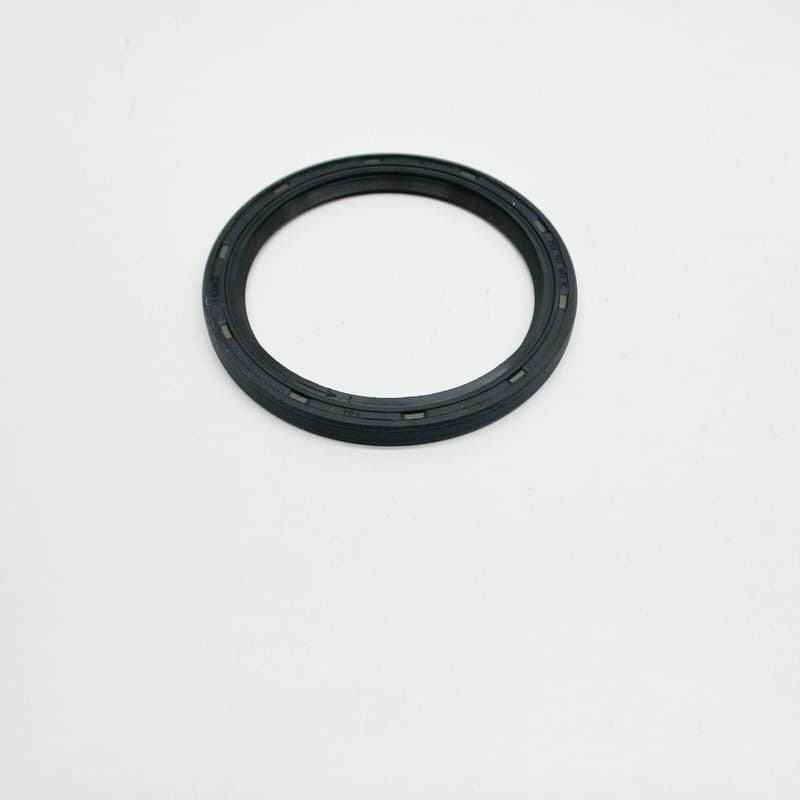

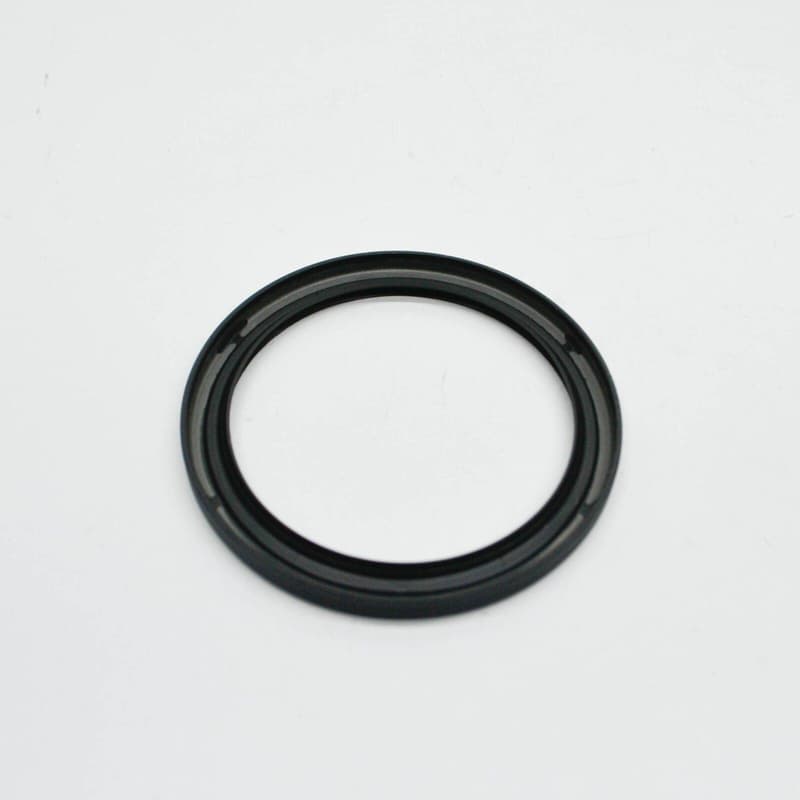

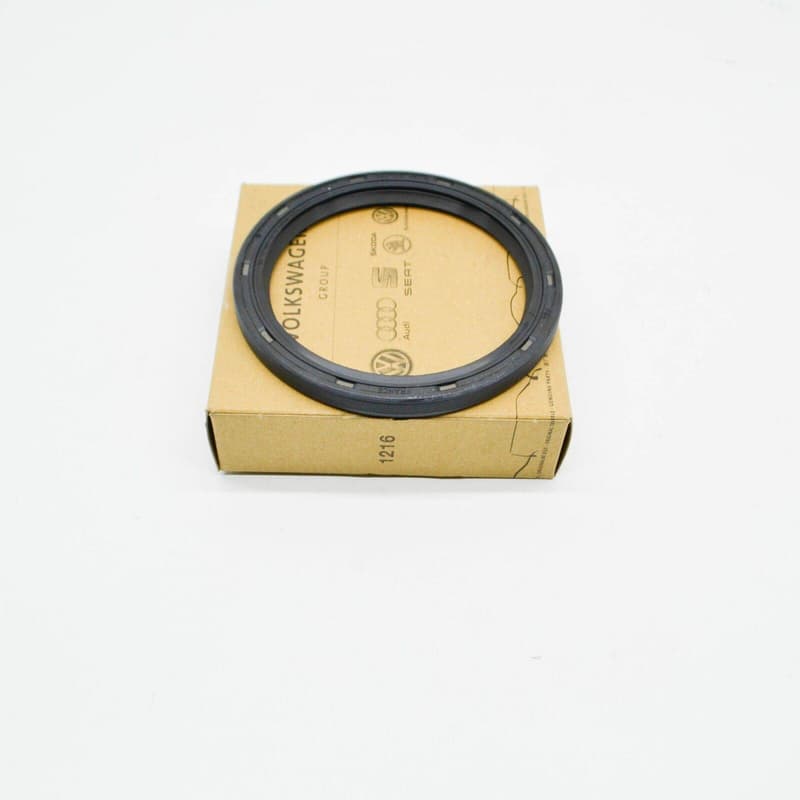

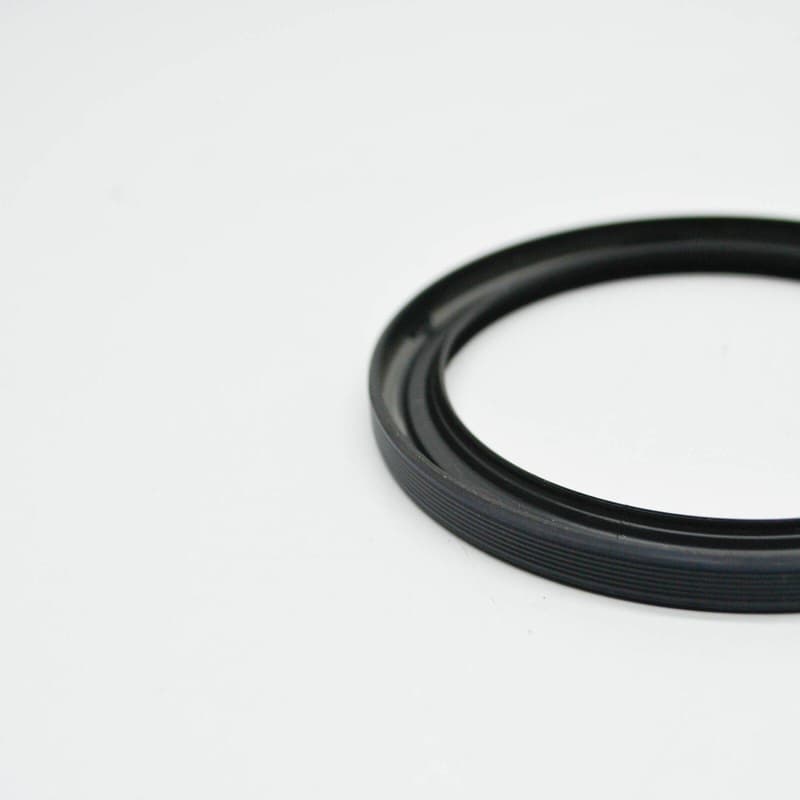

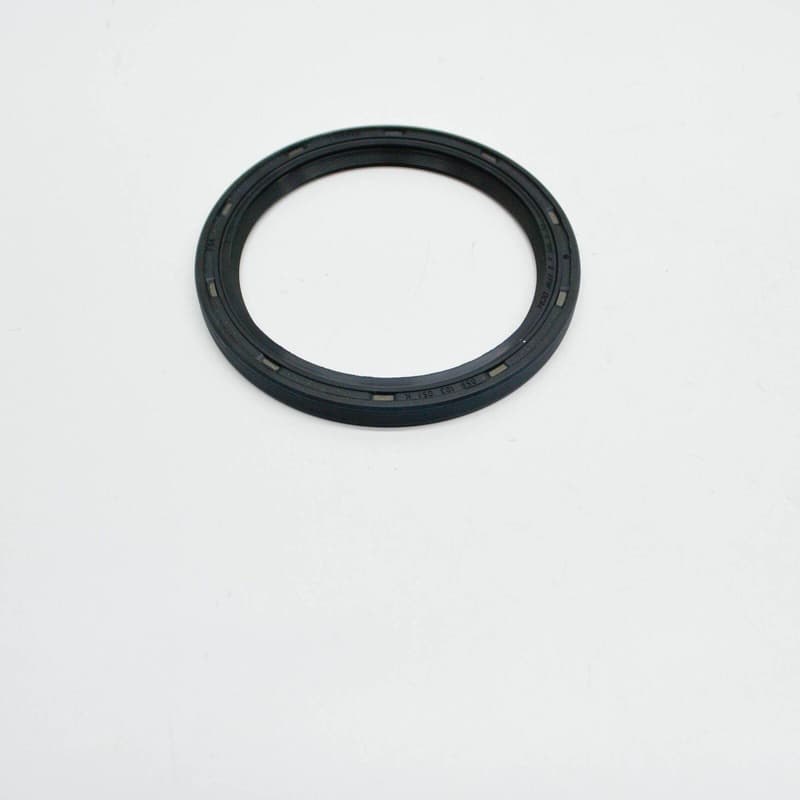

Genuine OEM Volkswagen Timing Case Shaft Oil Seal, part number 059103051K. This critical sealing ring is designed to prevent oil leakage from the timing case shaft, maintaining proper lubrication within the engine. It is installed around the rotating shaft to create a tight barrier. Weighing 0.072 kg, this seal is manufactured from high-quality, oil-resistant materials. Using a genuine OEM oil seal ensures the correct material compound and precise dimensions for a perfect, long-lasting seal, preventing costly oil loss and potential engine damage.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- France
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10.5 × 10.5 × 0.8 cm
- Shipping weight
- 0.07 kg

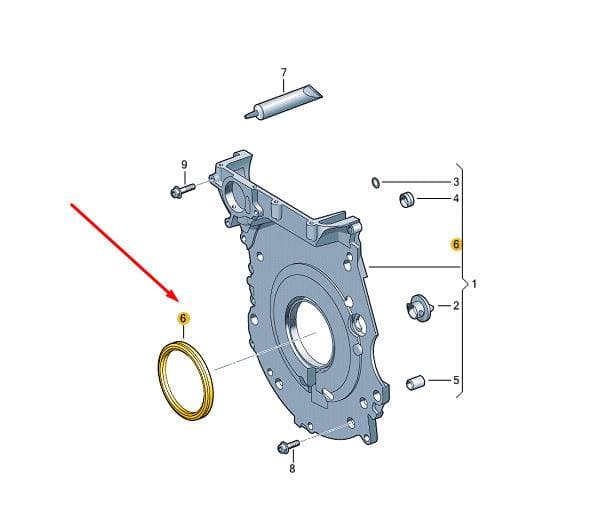

Parts diagram & fitment
30 vehiclesShaft Oil Seal — locate 059103051K Volkswagen Timing Case Shaft Oil Seal | Engine Gasket in the official exploded view and explore the surrounding assembly.
Superseded by 058103598D — the later replacement part.
Parts in this assembly(48)
- 1Part 059103011HJ
- 1Crankcase 059103011JG
- 2Bolt WHT003959
- 3Valve 059103176B
- 4Sleeve 022103139B
- 8Part 055105277
- 10Part N10667801
- 11Vent 059103158R
- 12Bolt N91054701
- 13Sleeve 057103139D
- 13Sleeve 057103139
- 14Cover 059103707D
- 15Seal Ring N90466301
- 16Bolt N10335206
- 16Bolt N10766201
- 19Seal 057103147A
- 20Sensor 079919525C
- 21Bolt N10451408
- 22Seal Ring WHT002287C
- 23Sleeve 059103826B
- 24Seal Ring N90851401
- 25Flange 059103153CS
- 25Flange 059103153CJ
- 26Seal 079103051D
- 27Seal 059103161AT
- 28Bolt N10700201
- 30Sender 057906433B
- 30Sender 057906433C
- 31Bolt N10405604
- 32Cover 059103708A
- 32Cover 059103708C
- 32Cover 059103708E
- 33Seal 059103147S
- 34Screw N91021502
- 35Seal Ring WHT004647
- 36Seal Ring WHT004963
- 38Sleeve 012301153H
- 39Flange 059103171DN
- 39Flange 059103171DT
- 39Flange 059103171EC
- 41Cover 059103565H
- 43Part N91076601
- 43Bolt N10745301
- 44Cover 059109122AK
- 45Seal 059109092N
- 46Bolt N10156206
- 47Bolt N10124306
- 48Cover 059109122AL
Compatible / alternative parts(6)
- Part 058103603
- Part 057103147A
- Part 059103147F
- Part 059103483T
- Part 059103484
- Part 059103147S
Diagrams & fitment data powered by oemdiagrams.com
059103051K Volkswagen Timing Case Shaft Oil Seal | Engine Gasket is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; audi a6 2.0 tdi 2010-2015; audi a4 av. 2.0 tdi 2011-2015; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi RSQ3 qu. 2.5 2013-2018; Audi A8L qu. 3.0 TDI 2013-2018; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A8L 2017-2022; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi RS3 Sportback 2015-2016; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Amarok twin cab 2022-; touareg 2017-2023; golf estate 2009-2013; jetta variant 2009-2014; new beetle 2011-2016; new beetle cabriolet 2011-2016; Touareg BlueMotion 2014-2018; jetta 2014-2017; Beetle 2016-2019; new beetle cabriolet 2016-2019; New Passat 2015-2022; Amarok twin cab 2016-2022.
