Target · Diagram
Find this reference above

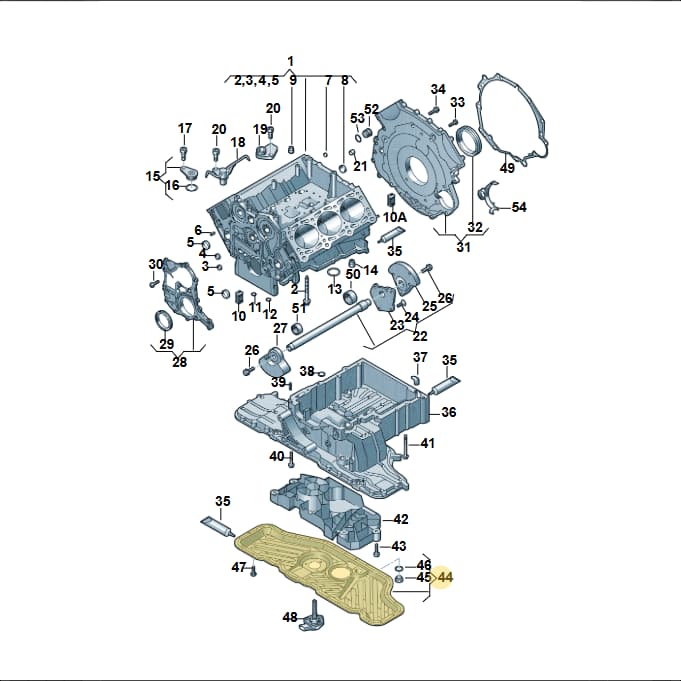

Number 44 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Oil Sump, part number 059103602D. This critical component is located at the base of the engine, designed to collect and store engine oil, ensuring a constant supply for lubrication of internal moving parts. Weighing 2.113 kg and measuring 700x245x70mm, it is constructed to provide a secure reservoir for engine oil. Choosing a genuine OEM oil sump guarantees a precise fit, optimal oil capacity, and resistance to leaks, which are essential for maintaining engine health and preventing costly damage.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 70 × 24.5 × 7 cm
- Shipping weight
- 2.11 kg
Parts diagram & fitment

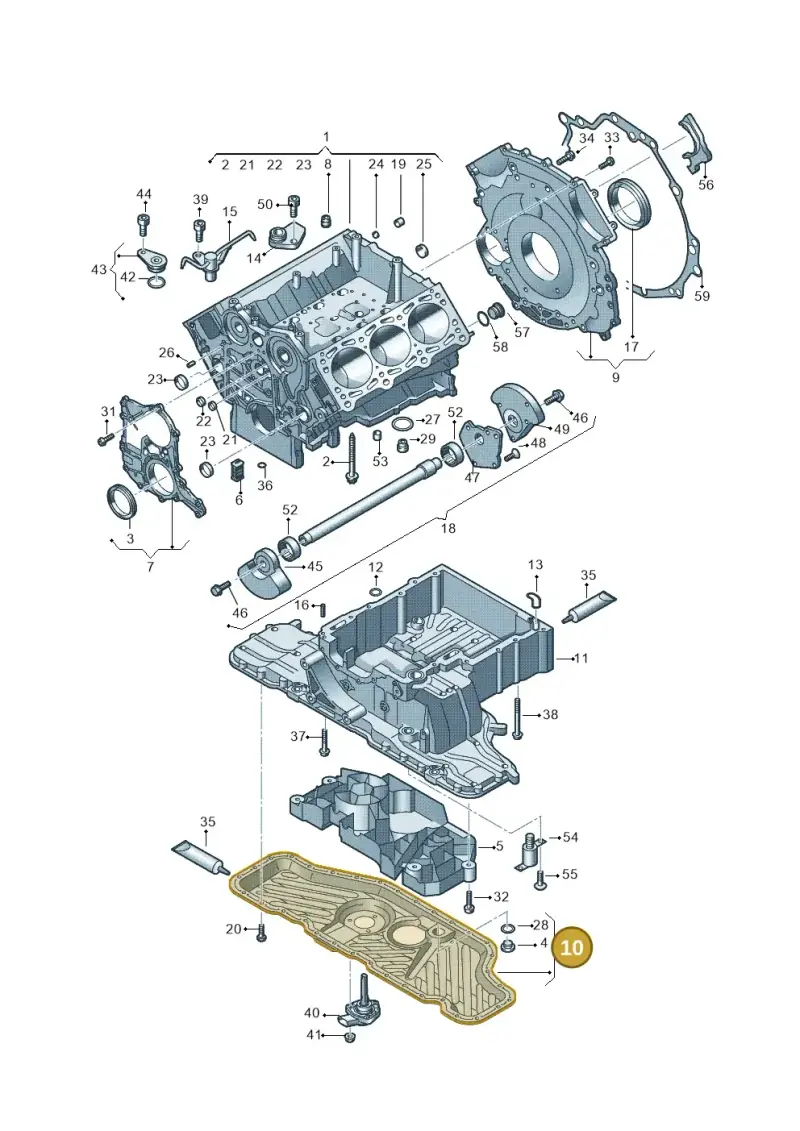

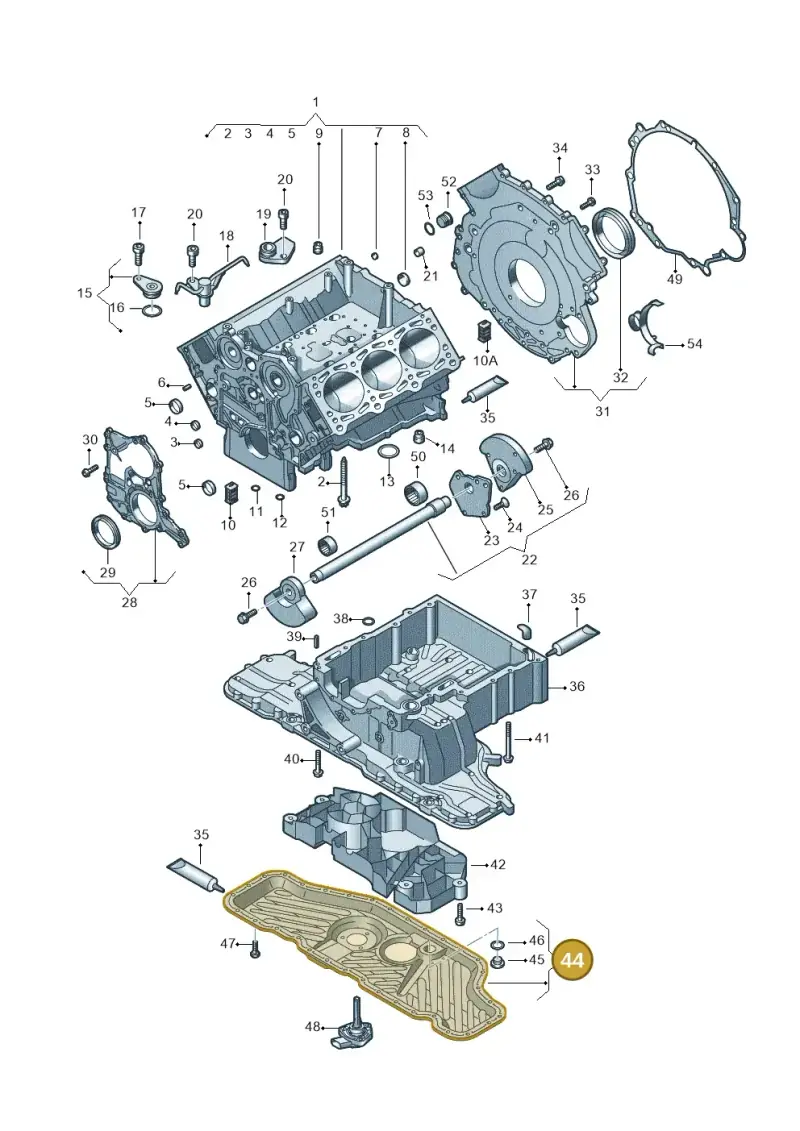

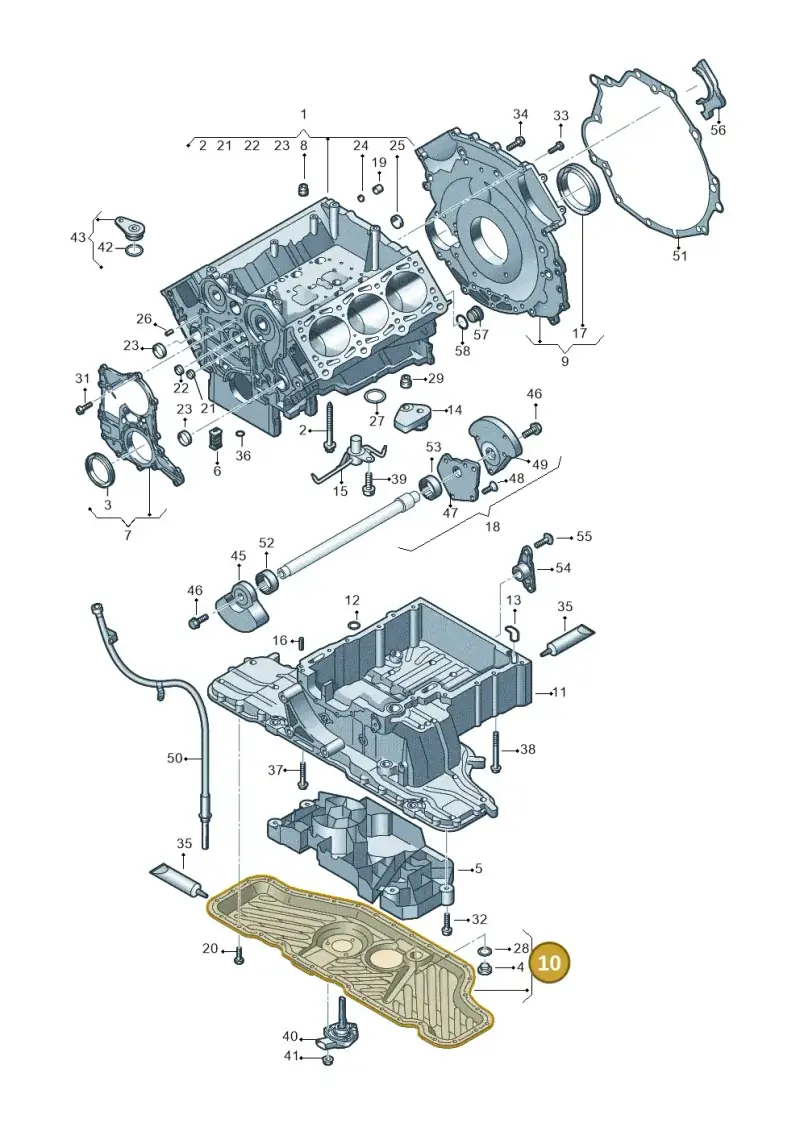

11 vehiclesEngine Oil Sump Lower Part — locate 059103602D Audi Engine Oil Sump | OEM Oil Pan in the official exploded view and explore the surrounding assembly.
Parts in this assembly(37)
- 2Bolt 059103039H
- 3Seal 079103051D
- 4Screw N0160276
- 5Insert 059103138R
- 6Seal 057103147A
- 9Flange 059103171J
- 11Oil Sump 059103603AN
- 12Seal 059103609M
- 13Seal 059103609L
- 14Valve 059103765D
- 15Vent 059103158M
- 16Part 055105277
- 17Seal 079103051F
- 18Shaft 059103273AA
- 18Shaft 059103273H
- 19Sleeve 01E301153G
- 19Sleeve 022103139B
- 20Bolt N01021723
- 21Cover N0119034
- 22Cover N0119047
- 23Cover N0119085
- 24Cover N91081801
- 25Cover N01191410
- 27Seal Ring N0138326
- 28Seal Ring N0138157
- 29Screw N0160293
- 31Bolt N10124306
- 32Bolt N10413402
- 33Bolt N10156206
- 34Screw N10225802
- 35Seal D176501A1
- 37Screw N90853903
- 38ScrewRightN91009402
- 39Bolt N91054701
- 42Seal Ring N91008401
- 43Cover 059121155
- 51Ring 01X103551
Compatible / alternative parts(3)
- Part 058103598D
- Part 058103603
- Part 038103196
Diagrams & fitment data powered by oemdiagrams.com
059103602D Audi Engine Oil Sump | OEM Oil Pan is fitted on: Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4/Av./qu. 05> 2005-; AUDI A6L "CN"05> 2005-; Audi A4/S4 Cabrio./qu. 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A8/S8/qu. lang 08> 2007-; Audi A6 2.7 TDI 2008-2011; Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
