059121511BT Coolant Pipe
€148.36 excl. VAT
- 059121511BQNot stocked
Dec 2016 - 059121511BTThis pageNot stocked
Mar 2022
- Current number059121511DGCurrent number
- Current number059121507BLCurrent number
- Current numberN90686902Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

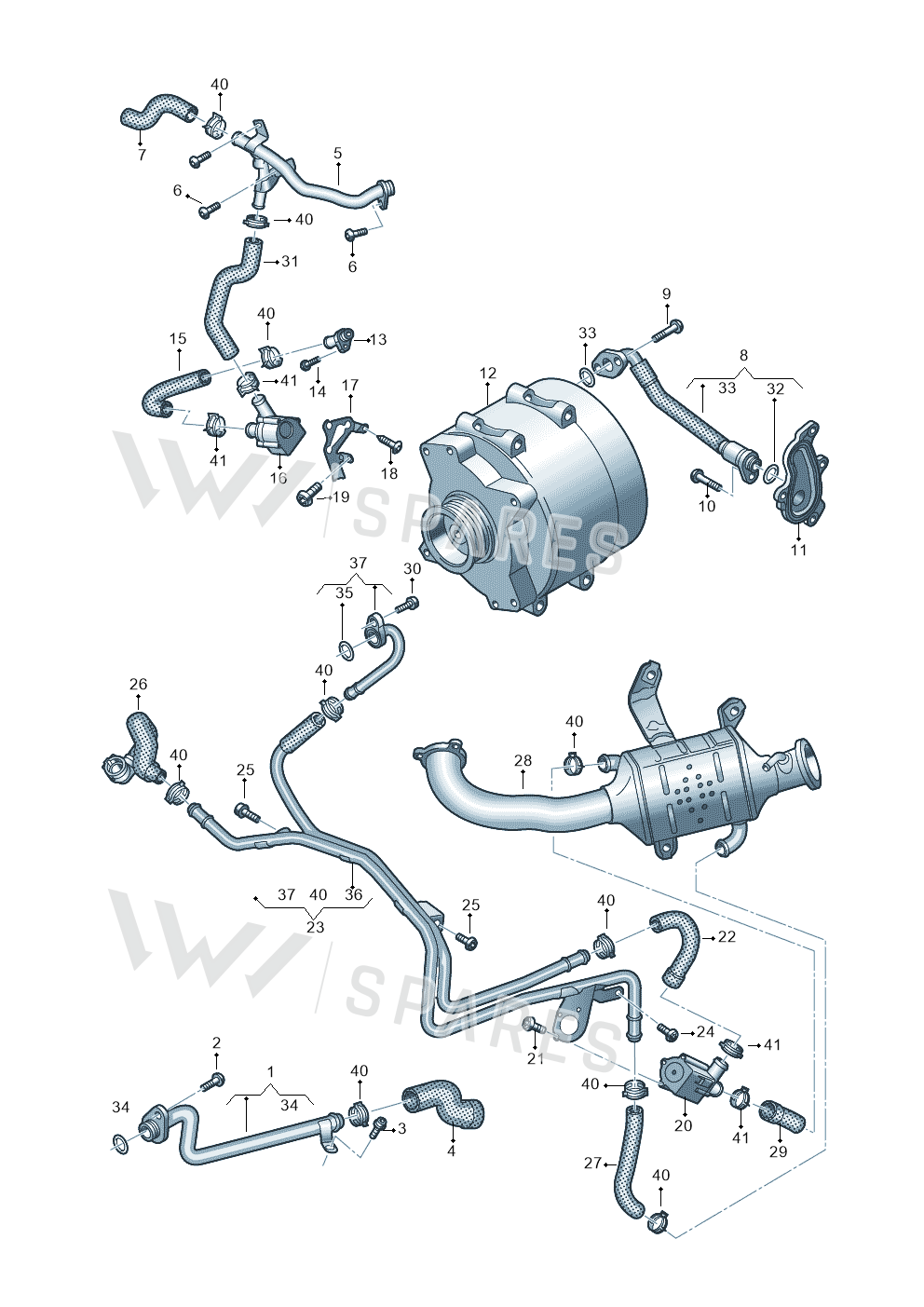

6 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Water Pipe 059121512AM
- 2Bolt N10451405
- 3Screw N10664901
- 5Water Pipe 059121075FM
- 5Water Pipe 059121075FH
- 6Bolt N10335206
- 8Hose 059121444G
- 9Bolt N10156206
- 10Bolt N91096801
- 13Connection 059121132L
- 15Hose 059121049F
- 16Water Pump 06H121601M
- 17Part 059121306
- 17Part 059121306D
- 17Bracket 059121214L
- 18Fixing Set 5N0198093
- 19Bolt N91096701
- 20Pump 06H121601P
- 21Screw WHT002306
- 22Hose 059121449N
- 25Screw N10677501
- 27Hose 059121445L
- 29Hose 059121447N
- 30Screw N10170303
- 31Hose 059121051AA
- 31Hose 059121051R
- 31Hose 059121051L
- 32Seal Ring 059121149H
- 33Seal 059121149J
- 34Seal Ring N90809102
- 35Seal Ring WHT003695B
- 36Water Pipe 059121511DG
- 36Water Pipe 059121511CK
- 37Water Pipe 059121507BA
- 37Water Pipe 059121507AP
- 40Clamp N90686902
- 41Clamp N90687001
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| audi a6 2.0 | 2018- | 23 | 1 |
| Audi A7 Sportback | 2018- | 23 | 1 |
| Audi Q5 | 2016-2020 | 23, 1 | 1 |
| Audi A5 Sportback | 2016-2020 | 1 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 1 | 1 |
| audi a4 2.0 | 2015-2019 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
