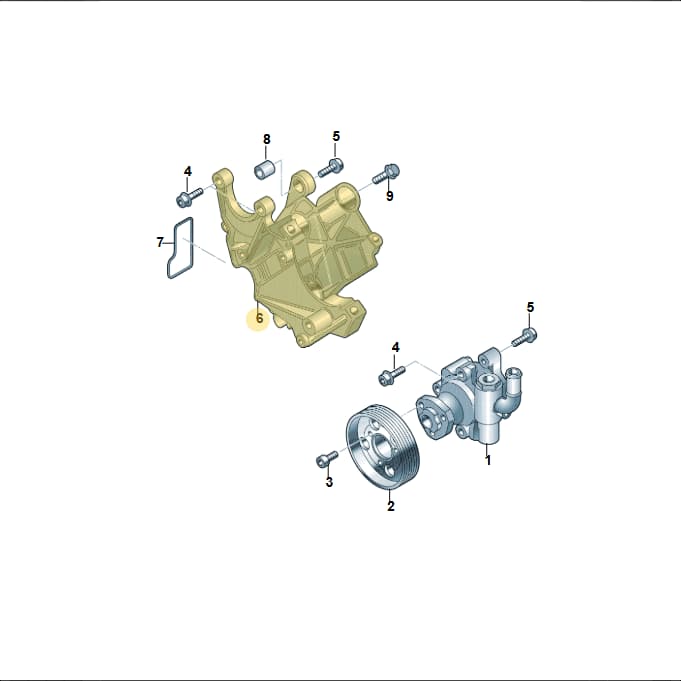

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi AC Compressor Mounting Bracket, part number 059145167AE. This heavy-duty bracket is designed to securely mount the AC compressor to the engine block, ensuring stable positioning and proper belt alignment for the accessory drive system. It forms a critical connection point for the compressor assembly. Constructed from durable cast metal and weighing 1.967 kg, it provides robust support for the AC compressor. Choosing a genuine OEM mounting bracket ensures precise bolt hole alignment, correct material strength to withstand engine vibrations, and optimal spacing for belt tension, which are all vital for the longevity and efficient operation of the AC system.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 27 × 19.5 × 14.5 cm
- Shipping weight
- 1.97 kg
Parts diagram & fitment
21 vehiclesRetainer For Vane Pump — locate 059145167AE Audi AC Compressor Mounting Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(7)
- 1Pump 4E0145156B
- 2Bush 068903147H
- 4Pulley 059145255C
- 6Screw N91052201
- 8Bolt N0195315
- 10Seal 059145773
- 11Bolt N10286205
Compatible / alternative parts(1)
- Part 059145773
Diagrams & fitment data powered by oemdiagrams.com
059145167AE Audi AC Compressor Mounting Bracket | Genuine OEM is fitted on: Audi A8/S8/qu. lang 2003-2007; Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4/Av./qu. 05> 2005-; AUDI A6L "CN"05> 2005-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A4 Av. Allroad 2008-2016; Audi Q7 qu. 3.0 TDI 2009-2015; Phaeton (lang) 2003-2006; Touareg 2003-2005; Touareg 2005-2006; Touareg 08> 2007-; PHAETON 08> 2007-; phaeton 4motion 2008-2010; touareg 2010-2012; phaeton 4motion 2010-2016.
