Product overview

Genuine OEM Audi Fuel Rail Pressure Pipe, part number 05A130241AH. This critical component is responsible for delivering highly pressurized fuel from the fuel pump or high-pressure pump to the fuel rail, ensuring consistent fuel supply to the injectors. It is an integral part of the engine's fuel delivery system. Weighing 0.085 kg and measuring 0.16 m in length, this pipe is constructed from robust materials to withstand high fuel pressures. Choosing a genuine OEM fuel rail pressure pipe guarantees the correct material strength, precise dimensions, and leak-proof connections essential for safe and efficient fuel system operation.

Technical details

Category
Fuel System
Customs (HS) code
84099900
Manufacturer
Audi
Product Type
Genuine new auto parts
Shipping size (L × W × H)
16 × 6 × 2.8 cm
Shipping weight
0.09 kg

Parts diagram & fitment

2 vehicles

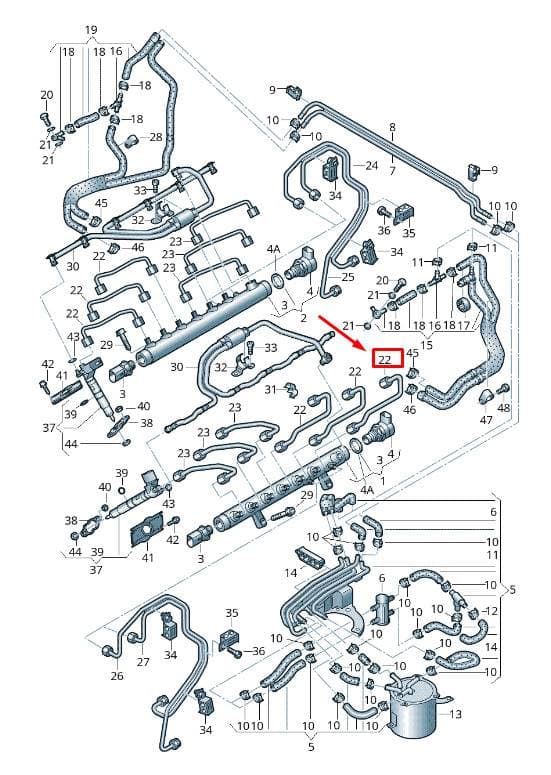

Pressure Pipe — locate 05A130241AH Audi Fuel Rail Pressure Pipe | Fuel System in the official exploded view and explore the surrounding assembly.

Parts in this assembly(42)
  • 1Rail 05A130089A
  • 2Rail 05A130090A
  • 3Sensor 05A906051
  • 4Valve 057130764L
  • 4ASeal Ring 057130119A
  • 5Pipe 4L0130307C
  • 6Valve 8T0127247C
  • 7Pipe 4L0130312B
  • 8Pipe 4L0130312C
  • 9Bracket 7L6127233A
  • 10Clamp 4B0422379
  • 11Clamp N90768301
  • 12Clamp N90926401
  • 14Clip 7L0201449B
  • 15Fuel Line 05A130300J
  • 16Tpiece N90693001
  • 17Ring 06B141730B
  • 19Fuel Line 05A130300H
  • 20Screw N0210717
  • 21Seal Ring N0138133
  • 23Pipe 05A130241AJ
  • 24Pipe 05A130310D
  • 25Pipe 05A130310E
  • 28Clamp N0206267
  • 29Screw N10714501
  • 30Fuel Line 05A130218
  • 31Clip 059131694H
  • 32Bracket 057130131B
  • 33Bolt N10405604
  • 34Bracket 059130401B
  • 35Bracket 05A130401A
  • 36Bolt N10451405
  • 37Injector 05A130855X
  • 37Injector 05A130277
  • 38Plate 059130216C
  • 39Seal Ring WHT000884
  • 40Collar Nut N90446502
  • 41Cover 059103113E
  • 42Screw N90427502
  • 43Seal Ring 059130119
  • 44Seal Ring 059130519B
  • 45Clamp N90770201

Diagrams & fitment data powered by oemdiagrams.com

05A130241AH Audi Fuel Rail Pressure Pipe | Fuel System is fitted on: Audi Q7 07> 2006-; Audi Q7 qu. 3.0 TDI 2009-2015.
