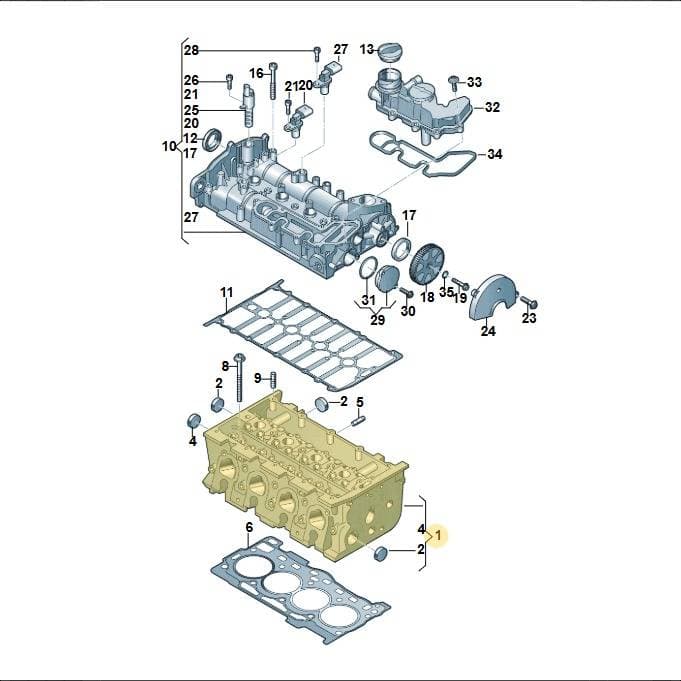

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Cylinder Head, part number 05E103063C. This component forms the upper seal of the engine's cylinders, housing valves and camshafts. It is located on the engine block. Key specifications include dimensions of 0.375m length, 0.25m width, and 0.116m height, with a weight of 13.841 kg. Genuine OEM cylinder heads are manufactured to precise tolerances to ensure proper sealing, valve operation, and heat dissipation, critical for engine longevity and performance.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 37.5 × 25 × 11.6 cm
- Shipping weight
- 13.84 kg
Parts diagram & fitment
9 vehiclesCylinder Head With Valves — locate 05E103063C Volkswagen Cylinder Head | Engine Component in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 1Cylinder Head 05E103063CX
- 2Cover N01191411
- 4Bungs N90802703
- 5Bolt N10087802
- 6Seal 05E103383
- 8Screw WHT007089
- 9Part 026103139
- 10Cylinder Head 05E103469C
- 11Seal 05E103483
- 12Seal 04E103085AF
- 13Cover 05E103485J
- 16Bolt N91254401
- 17Seal 04E103085C
- 18Pulley 04E109111AG
- 19Bolt N91145502
- 20Sender 05E907601D
- 21Bolt N91096701
- 23Screw N91097201
- 24Protection 04E109121N
- 25Valve 04E906455AC
- 27Sender 05E907601C
- 29Cover 04C103335
- 31Seal Ring N90467301
- 32Separator 05E103495AJ
- 33Bolt WHT003261
- 34Seal 05E103517A
- 35Seal Ring N90851401
Diagrams & fitment data powered by oemdiagrams.com
05E103063C Volkswagen Cylinder Head | Engine Component is fitted on: Golf 2.0 BlueMotion 2019-2024; Caddy Maxi Kombi 2020-2024; golf 2.0 2016-2020; Audi A3 Sportback 2019-2021; Audi A3 Sportback 2016-2020; Leon style 2019-; Leon ST Stylance 2016-2020; Octavia 2019-2024; Octavia 2017-2020.
