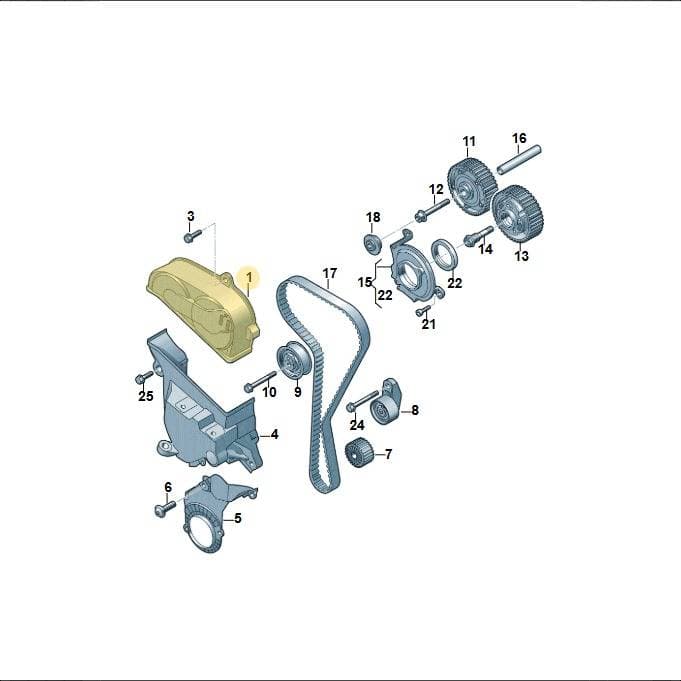

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Toothed Belt Guard, part number 05E109108R. This guard protects the toothed belt from dirt, debris, and damage, ensuring its proper function and longevity. It is located at the front of the engine assembly, covering the toothed belt. Genuine OEM belt guards are manufactured to exact specifications to ensure a perfect fit and optimal protection for the timing belt system.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 0.29 kg
Parts diagram & fitment
11 vehiclesToothed Belt Guard — locate 05E109108R Volkswagen Toothed Belt Guard | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 3Bolt N91096801
- 4Support 05E199275R
- 5Protection 05E109175H
- 7Pulley 05E105263B
- 8Roller 05E109244
- 9Tens Roll 05E109479B
- 10Screw N10690201
- 11Adjuster 05E109088G
- 12Screw N91264601
- 13Adjuster 05E109088F
- 14Valve 04E109257A
- 15Bracket 05E109093C
- 16Sleeve 05E103825
- 17Tooth Belt 04E109119F
- 18Screw WHT004914
- 21Bolt N10124309
- 22Seal 04E103085AN
- 24Screw N10720402
- 25Bolt N91105501
Diagrams & fitment data powered by oemdiagrams.com
05E109108R Volkswagen Toothed Belt Guard | Genuine OEM is fitted on: Golf 2.0 BlueMotion 2019-2024; Caddy Maxi Kombi 2020-2024; Multivan 2021-; passat estate 2023-; Tiguan 2.0 2023-; Leon style 2019-; Formentor TSI CUPRA 2020-; 578 platform; Superb Combi 2023-; Kodiaq 2024-; Audi A3 Sportback 2019-2021.
