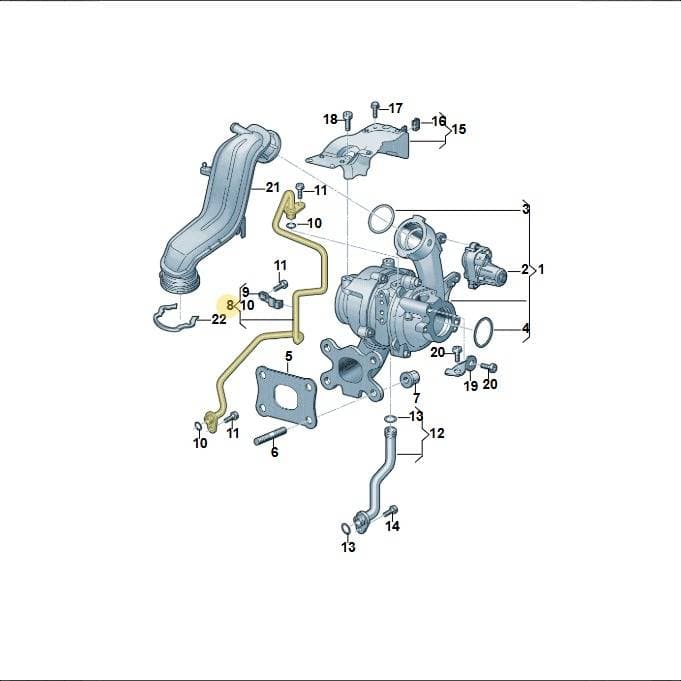

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Supply Pipe, part number 05E145140L. This pipe carries essential fluids or gases to or from components like the turbocharger. It is a vital part of the intake system. This supply pipe is located in the turbocharger assembly. It weighs 0.1308 kg and has dimensions of 0.3625m x 0.1725m x 0.0825m. Genuine OEM supply pipes ensure correct flow rates and material integrity under pressure and temperature.
Catalogue entry: PIPE.
Fitted with: 05E145140N PIPE, N10405604 BOLT.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 36.25 × 17.25 × 8.25 cm
- Shipping weight
- 0.13 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
11 vehiclesSupply Pipe — locate 05E145140L Volkswagen Supply Pipe | Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Turbo 05E145702L
- 1Turbo 05E145703D
- 2Repair Kit 05E198725C
- 2Repair Kit 05E198725F
- 3Seal WHT001386
- 5Seal 04E253039D
- 6Bolt N91200201
- 7Collar Nut WHT000001N
- 8Pipe 05E145140N
- 9Clamp 04E145807
- 9Clamp 04E145807E
- 10Seal Ring WHT006990A
- 11Bolt N10405604
- 12Oil Line 05E145735D
- 13Seal Ring WHT005363A
- 15Plate 05E253041N
- 16Terminal 5Q0971842
- 17Bolt N10653201
- 18Screw N10753101
- 19Bracket 05E145195
- 20Screw N10644901
- 21Pipe 05E145673AE
- 21Pipe 05E145673S
- 22Part 04E145853E
- 23Insulation 05E863801
Vehicle fitment table11
Europe (10)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Kodiaq | 2024- | 8 | 1 |
| passat estate | 2023- | 8 | 1 |
| Tiguan 2.0 | 2023- | 8 | 1 |
| Superb Combi | 2023- | 8 | 1 |
| Multivan | 2021- | 8 | 1 |
| Formentor TSI CUPRA | 2020- | 8 | 1 |
| Caddy Maxi Kombi | 2020-2024 | 8 | 1 |
| Leon style | 2019- | 8 | 1 |
| Golf 2.0 BlueMotion | 2019-2024 | 8 | 1 |
| Audi A3 Sportback | 2019-2021 | 8 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 578 platform | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
05E145140L Volkswagen Supply Pipe | Turbocharger is fitted on: Kodiaq 2024-; passat estate 2023-; Tiguan 2.0 2023-; Superb Combi 2023-; Multivan 2021-; Formentor TSI CUPRA 2020-; Caddy Maxi Kombi 2020-2024; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Audi A3 Sportback 2019-2021; 578 platform.
