05L145771A Supply Pipe
€44.16 excl. VAT
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

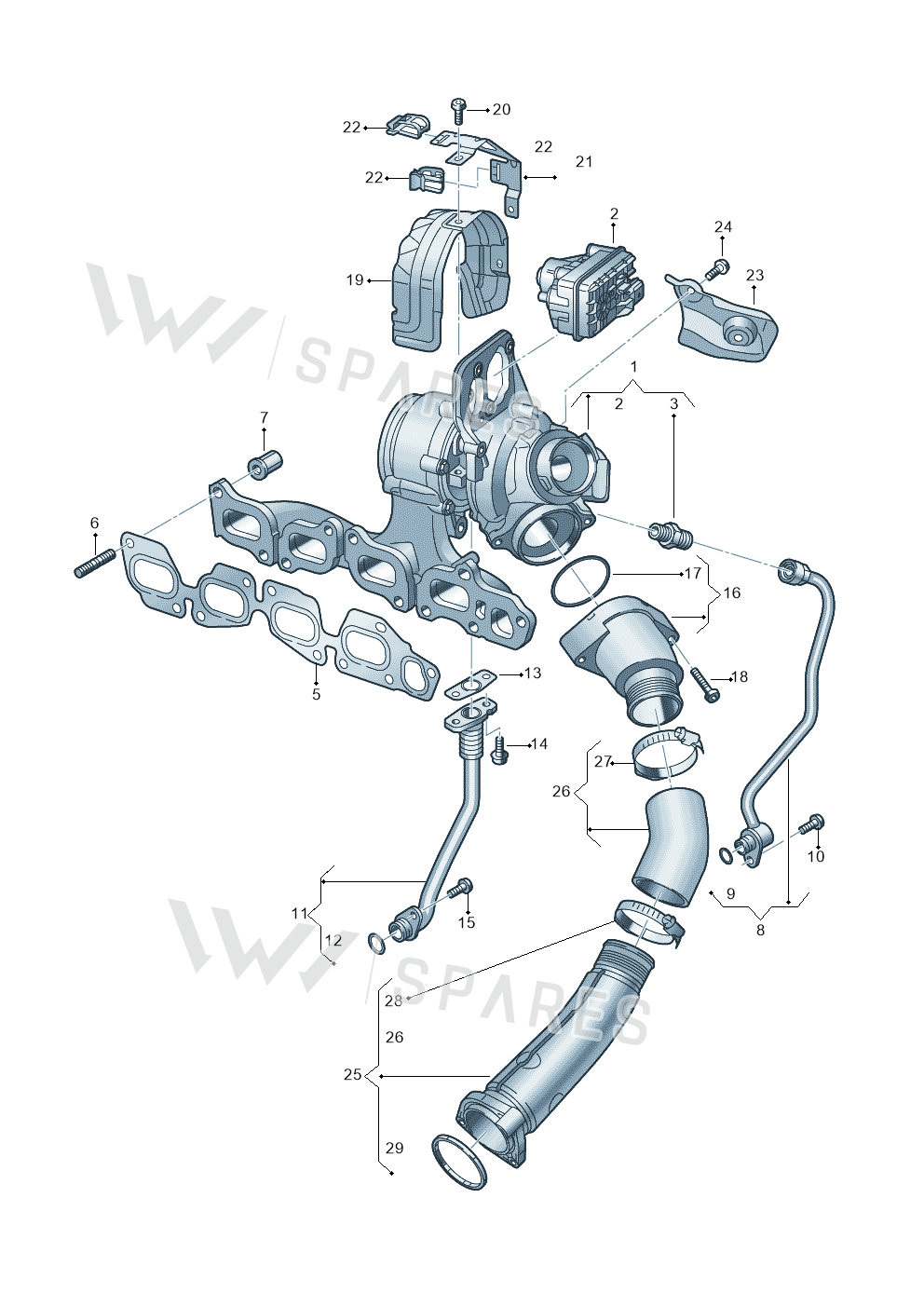

13 vehiclesSupply Pipe — locate Supply Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Part 05L253019F
- 1Part 05L253019Q
- 2Repair Kit 05L198716A
- 5Seal 05L253039C
- 6Bolt N0444415
- 7Part WHT009072
- 8Pipe 05L145771D
- 8Pipe 05L145771G
- 8Pipe 05L145771J
- 8Pipe 05L145771F
- 8Pipe 05L145771H
- 9Seal Ring WHT008245
- 10Bolt N10405604
- 11Oil Line 05L145736B
- 11Oil Line 05L145736A
- 12Seal Ring WHT007702
- 13Seal 03L145757G
- 14Bolt N90592705
- 16Damper 05L131111F
- 17Seal Ring 05L145119
- 18Screw N91117502
- 19Heat Sh 05L129969D
- 20Bolt N10680301
- 21Bracket 05L131121J
- 22Bracket 05L971842
- 23Heat Sh 05L129969H
- 25Chargetube 05L145762D
- 26Hose 05L145828D
- 27Clamp N10518901
- 29Seal Ring 05L145187
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Multivan | 2021- | 8 | 1 | |
| Golf 2.0 BlueMotion | 2019-2024 | 5, 8 | 1 | |
| Octavia | 2019-2024 | 5 | 1 | |
| Audi A3 Sportback | 2019-2021 | 5, 8 | 1 | |
| Tarraco FR | 2018-2024 | 5, 8 | ||
| Audi Q3 quattro | 2018-2019 | 5, 8 | 1 | |
| Tiguan 2.0 4Motion | 2017-2024 | 8 | 1 | T3Y |
| Arteon | 2017-2023 | 5, 8 | 1 | |
| Tiguan 2.0 4Motion | 2016-2024 | 5, 8 | 1 | |
| Kodiaq | 2016-2024 | 5, 8 | 1 | |
| Touran 2,0 BlueMotion | 2015-2024 | 8 | 1 | T3Y |
| Superb Combi | 2015-2024 | 5, 8 | 1 | |
| Passat saloon | 2014-2024 | 5, 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Supply Pipe is fitted on: Multivan 2021-; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; Tarraco FR 2018-2024; Audi Q3 quattro 2018-2019; Tiguan 2.0 4Motion 2017-2024; Arteon 2017-2023; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Touran 2,0 BlueMotion 2015-2024; Superb Combi 2015-2024; Passat saloon 2014-2024.
