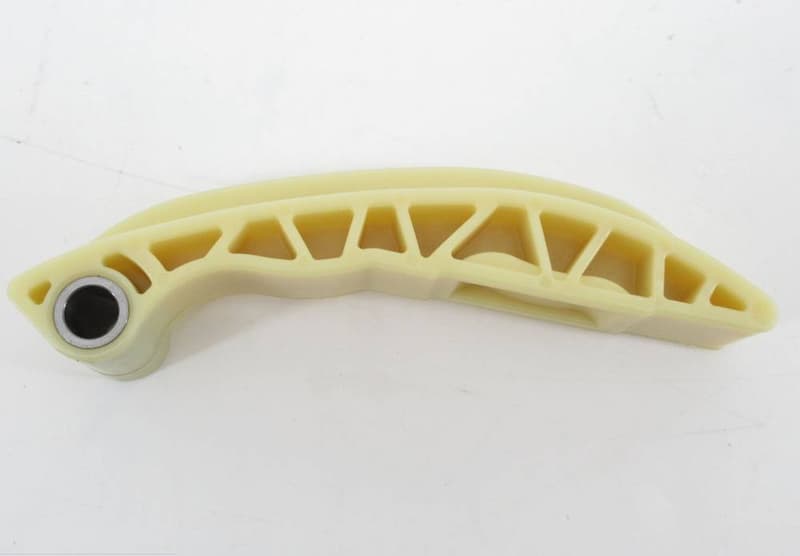

Genuine OEM Audi Camshaft Control Chain Guide Rail, part number 066109509A. This component provides a smooth, low-friction surface for the camshaft control chain, guiding its movement and contributing to precise engine timing. It is an integral part of the engine's timing system, often working in conjunction with a chain tensioner. Made from a durable, wear-resistant polymer with a metal bushing, it weighs approximately 0.066 kg and measures 0.147 meters in length. Choosing a genuine OEM chain guide rail ensures the correct material properties, precise dimensions, and optimal wear characteristics for reliable and quiet operation of the engine's timing chain.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14.7 × 5 × 3.5 cm
- Shipping weight
- 0.07 kg
Parts diagram & fitment

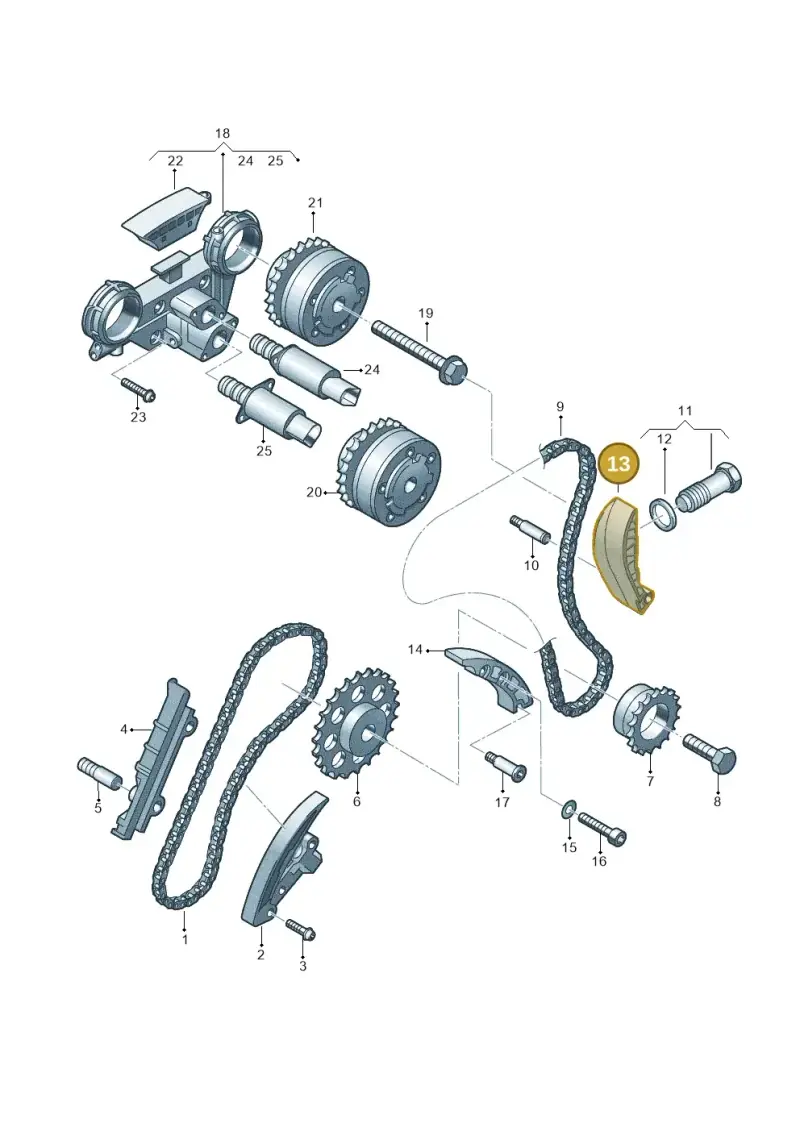

49 vehiclesChain Tensioner — locate 066109509A Audi Camshaft Control Chain Guide Rail | Engine Timing in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 1Timing Cha 021109465B
- 2Tensioner 021109467
- 3Screw N90535001
- 4Seatrunner 021109469
- 5Part 021109471
- 6Chn Sprckt 021109569
- 7Chn Sprckt 066109570
- 8Bolt N10203803
- 9Timing Cha 066109503B
- 10Part 066109511D
- 11Tensioner 066109507D
- 12Seal Ring N0138271
- 14Seatrunner 066109513A
- 15Washer N01152527
- 16Screw N0147154
- 17Part 071109515
- 18Case 066109210M
- 19Bolt N10488302
- 22Seatrunner 066109514
- 23Bolt N90965801
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
066109509A Audi Camshaft Control Chain Guide Rail | Engine Timing is fitted on: Golf 1998-2000; New Beetle 1998-2001; Jetta Wagon 2001-2001; Passat/4Motion/W8 2000-2002; Eurovan 1998-2003; SHARAN/4MOTION 2000-2002; Phaeton (lang) 2003-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta USA 2001-2005; New Beetle 2001-2005; Touareg 2003-2005; Golf BR/US 2001-2002; Golf "BR.","USA"03>07 2002-2007; Jetta/Wagon 2002-2006; PASSAT/4MOTION/W8 2002-2005; Golf 'R32' n. "USA" 2004-2004; SHARAN/4MOTION 2002-2005; TRANSPORTER 2003-2005; OTTO-IND.-MOT. 77> 1977-; 06A platform; Golf/Rabbit 2005-2007; SHARAN/4MOTION 2005-; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; EOS-Cabriolet-Coupe 2006-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; Golf/Rabbit 08> 2007-; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; PHAETON 08> 2007-; Sharan 2008-2010; EOS 2.0 2008-2010; transp. caravelle 2008-2009; transp. dropside 2008-2009; TOLEDO/LEON/LEON-4 1998-2001; ALHAMBRA/4MOTION 2000-2002; TOLEDO/LEON/LEON-4 2001-2006; ALHAMBRA/4MOTION 2002-2005; ALHAMBRA/4MOTION 2005-; Alhambra 2006-2010; Audi TT Coupe/Roadster 2002-2006; Audi A3/S3/quattro 2005-2007; Audi TT Coupe/Roadster 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Sportback 2008-2013.
