Product overview
Genuine OEM Volkswagen Cylinder Head Assembly, part number 06A103265CX. This assembly forms the top of the engine cylinder, housing the valves and camshaft to control the intake and exhaust of gases. It is a critical component for regulating the flow of air and fuel into the combustion chamber and expelling exhaust gases. This part weighs 14.528 kg. Genuine OEM cylinder heads are manufactured to precise tolerances to ensure proper sealing and valve operation, preventing leaks and maintaining optimal compression.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45 × 19 × 18 cm
- Shipping weight
- 14.53 kg
Parts diagram & fitment

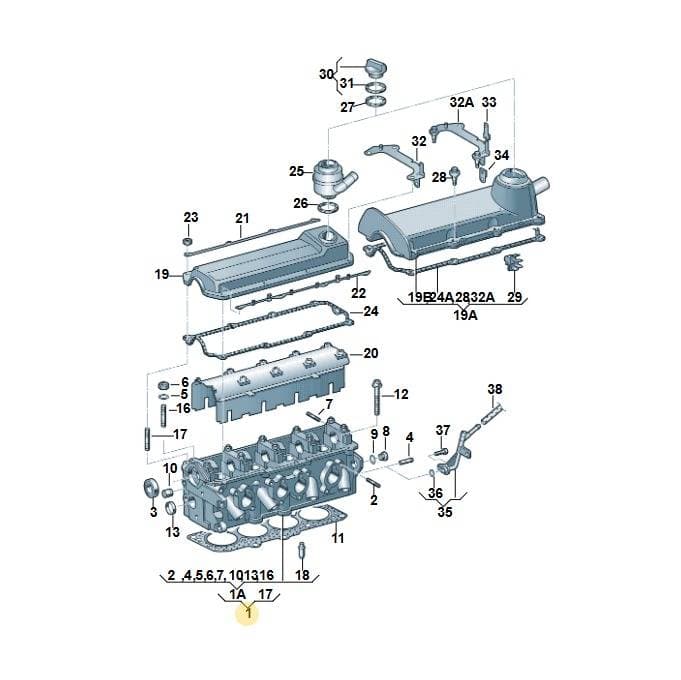

41 vehiclesCylinder Head With Valves And Camshaft — locate 06A103265CX Volkswagen Cylinder Head Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 06A103383AN — the later replacement part.
Parts in this assembly(24)
- 1Cylinder Head 06A103351E
- 2Bolt N0444115
- 3Radial Sea 038103085C
- 5Washer N01155811
- 6Part N0110088
- 8Screw N0160241
- 9Seal Ring N0138115
- 10Bungs 035103379
- 11Seal 06A103383AN
- 12Screw 06A103384C
- 13Cover N0119148
- 16Bolt 056103397
- 17Bolt N0444622
- 18Guide 037103419B
- 19Cover 06A103475C
- 20Deflector 06A103544
- 21Strip 056103591
- 22Strip 050103591
- 23Collar Nut N0150825
- 24Seal 051103483A
- 25Breather 06A103465
- 26Seal 06A103483D
- 30Cover 06B103485C
- 32Bracket 06A103309H
Compatible / alternative parts(12)
- Part 06A103383AS
- Part 06A103383L
- Part 06A103384C
- Part 0539114931
- Part 059129601
- Part 06A253039J
- Part 7X0253111
- Part N0110081
- Part N01100813
- Part N01100818
- Part N0110082
- Part N01100830
