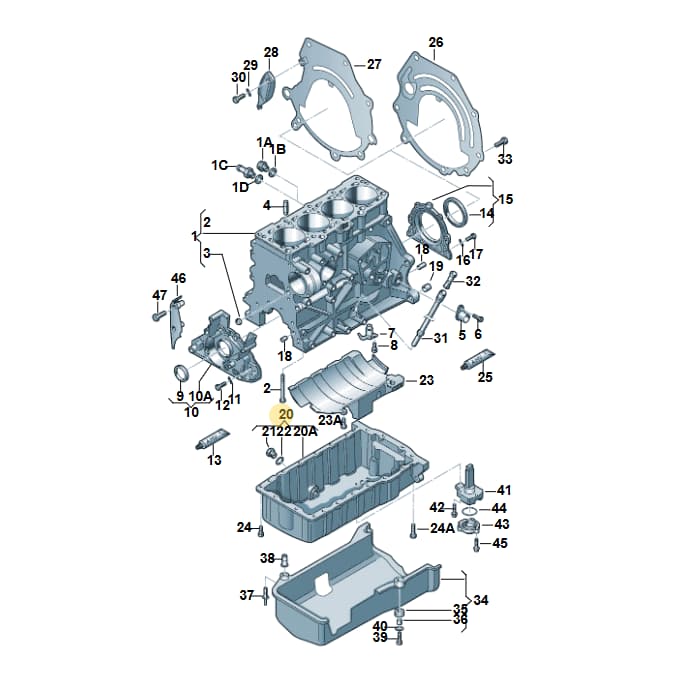

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Oil Pan, part number 06A103603H. This part is the engine oil pan, located at the bottom of the engine assembly. It is made of metal and has an opening for the level sensor. Genuine OEM ensures exact fit and factory material specifications.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 43 × 28 × 12.5 cm
- Shipping weight
- 2.05 kg
Parts diagram & fitment
9 vehiclesOil Sump — locate 06A103603H Volkswagen Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(32)
- 1Cylinder Block 06A103101M
- 1Cylinder Block 06A103101P
- 1Cylinder Block 06A103101R
- 1Cylinder Block 06A103101K
- 2Bolt N90130001
- 3Cover N0119077
- 4Part 037103139A
- 4Part 037103139
- 7Vent 06B103154
- 8Valve 053103155E
- 9Seal 038103085E
- 10Flange 06B103151
- 10Flange 038103151H
- 12Bolt N90945001
- 13Seal D176404A2
- 15Flange 06A103171A
- 18Part N0432072
- 19Sleeve 022103139
- 20Oil Sump 038103603N
- 20Oil Sump 038103601NA
- 21Bolt N90813201
- 23Lock 06B103623C
- 24Bolt N90735603
- 26Cover 038103647A
- 27Cover 06A103645
- 28Coverplate 068103645M
- 29Washer N0122265
- 30Bolt N0102085
- 31Tube 06D103634
- 32Funnel 06F103663
- 32Funnel 06A103663C
- 34Cover 06A103660E
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06A103603H Volkswagen Engine Oil Pan | Genuine OEM is fitted on: GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; New Beetle 2001-2005; New Beetle Cabrio. 2003-2005; Jetta/Wagon 2002-2006; Golf 'R32' n. "USA" 2004-2004; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; OCTAVIA/COMBI/4X4 01> 2000-.
