Product overview

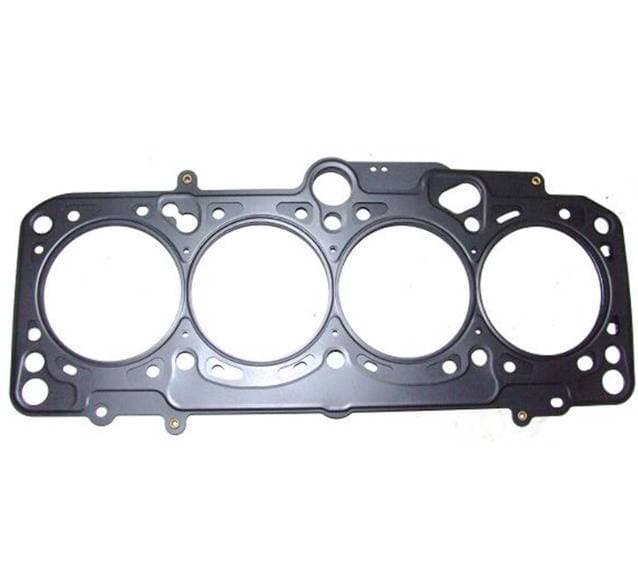

Genuine OEM Volkswagen Cylinder Head Gasket, part number 06B103383H. This vital engine component creates a tight seal between the cylinder block and cylinder head, preventing the escape of combustion gases and the mixing of engine oil and coolant. It is positioned directly between the engine block and cylinder head. Constructed from durable multi-layer steel (MLS), this gasket is engineered for high-temperature and high-pressure environments. Choosing a genuine OEM cylinder head gasket ensures exact dimensions, material composition, and sealing properties, critical for maintaining engine compression and preventing catastrophic fluid leaks.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38 × 15.8 × 0.2 cm
- Shipping weight
- 0.35 kg
Parts diagram & fitment

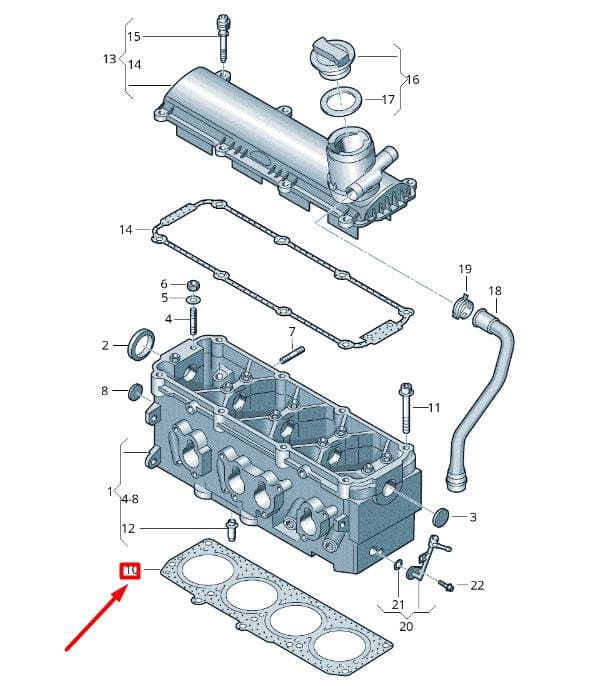

63 vehiclesCylinder Head Gasket (metal) — locate 06B103383H Volkswagen Cylinder Head Gasket | Engine Seal in the official exploded view and explore the surrounding assembly.
Superseded by 06A103384C — the later replacement part.
Parts in this assembly(32)
- 1Cylinder Head 06A103265BX
- 1Cylinder Head 06A103265DX
- 1Cylinder Head 06A103351F
- 1Cylinder Head 06A103351
- 2Bolt N0444122
- 3Radial Sea 038103085C
- 5Washer N01155811
- 6Part N0110088
- 7Bolt N0444076
- 7Bolt N90188902
- 7Bolt N0444115
- 8Screw N0160241
- 9Seal Ring N0138115
- 10Bungs 035103379
- 12Screw 06A103384C
- 13Cover N0119148
- 16Bolt 056103397
- 17Bolt N0444622
- 18Guide 037103419B
- 19Cover 06A103475C
- 20Deflector 06A103544
- 21Strip 056103591
- 22Strip 050103591
- 23Collar Nut N0150825
- 24Seal 051103483A
- 25Part 06A103467E
- 26Seal 06A103483D
- 27Seal Ring 021133287A
- 30Cover 06B103485C
- 35Pipe 06A103211K
- 36Seal Ring N90039603
- 37Screw N10226102
Compatible / alternative parts(12)
- Part 06B103483G
- Part 06A133398
- Part 06B103483L
- Part 037121688
- Part 06A133398F
- Part 0539114931
- Part N90747001
- Part 0261030853
- Part 059129601
- Part 7X0253111
- Part N0110081
- Part N01100813
Diagrams & fitment data powered by oemdiagrams.com
06B103383H Volkswagen Cylinder Head Gasket | Engine Seal is fitted on: Golf 1998-2000; New Beetle 1998-2001; Jetta Wagon 2001-2001; Passat 1997-2000; Passat/4Motion/W8 2000-2002; POLO CLASSIC/VARIANT 1999-2001; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; New Beetle 2001-2005; New Beetle Cabrio. 2003-2005; Golf BR/US 1999-2001; Jetta/Wagon 2002-2006; PASSAT/4MOTION/W8 2002-2005; Golf 'R32' n. "USA" 2004-2004; TOURAN 2003-2005; GOLF 2003-2005; CADDY 2004-; 1J0 platform; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; JETTA 06> 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; Golf/Rabbit 2005-2007; TOURAN 2005-2006; JETTA 06> 2006-; GOLF VARIANT 07> 2007-; TOURAN 2006-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; caddy panel van 2008-2010; passat estate 2008-2011; Touran 1.9 2008-2010; jetta 2008-2011; golf estate 2009-2013; Caddy Maxi Kombi 2010-2015; Golf 2011-2013; Golf Plus 2011-2014; TOLEDO/LEON/LEON-4 1998-2001; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; TOLEDO/LEON/LEON-4 2001-2006; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; 6K0 platform; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; AUDI A3/S3/QUATTRO 1996-2000; AUDI A3/S3/QUATTRO 2000-2003; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Avant 1999-2001; Audi A4/S4/Av./qu. 2001-2004; AUDI A3-BRASIL. 2000-2005; OCTAVIA/COMBI/4X4 1996-2000; OCTAVIA/COMBI/4X4 01> 2000-; OCTAVIA/COMBI/4X4 04> 2004-; octavia ambiente 2008-2013.
