Product overview

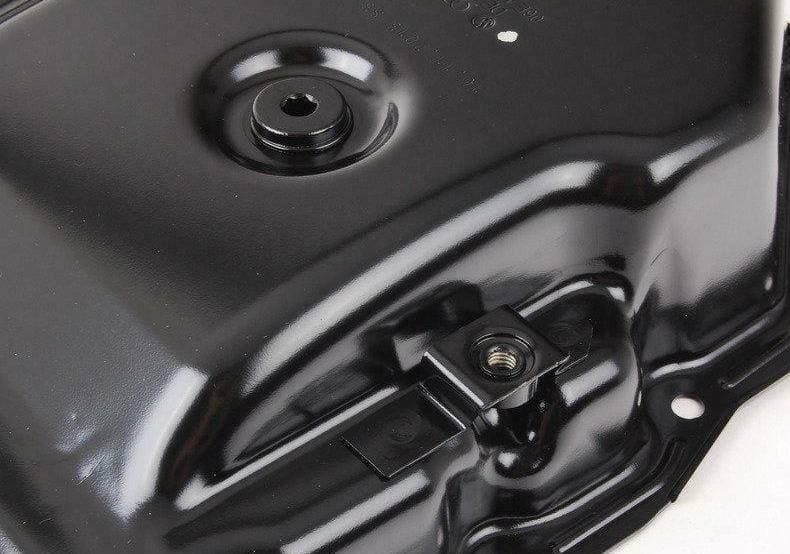

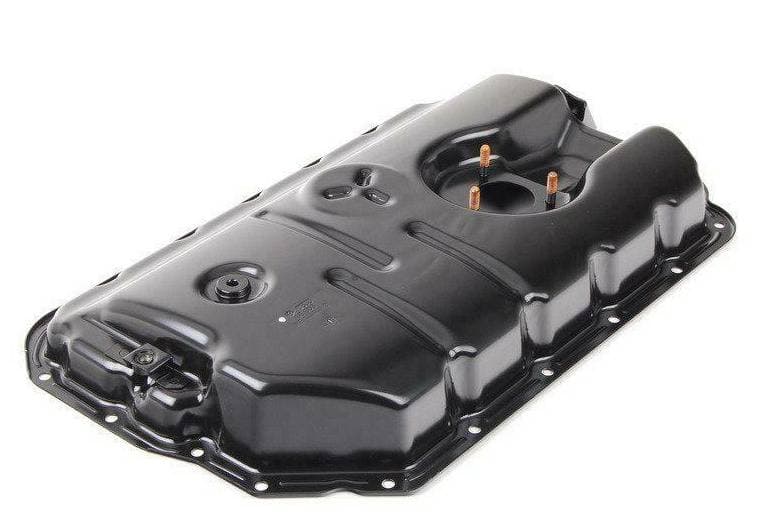

Genuine OEM Audi Oil Sump, part number 06E103604K. This critical engine component is located at the bottom of the engine, serving as a reservoir to hold and collect engine oil for recirculation throughout the lubrication system. It protects the crankshaft and other internal engine parts while ensuring proper oil supply. Constructed from durable stamped steel with a black finish, it weighs 1.58 kg and measures approximately 0.45m in length. Genuine OEM oil sumps guarantee precise fitment, proper sealing surfaces, and material integrity to prevent leaks and maintain engine health.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44.5 × 27 × 5.7 cm
- Shipping weight
- 1.58 kg
Parts diagram & fitment
27 vehiclesOil Sump-lower Part — locate 06E103604K Audi Oil Sump | Genuine OEM Engine Oil Pan in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Seal 079103051F
- 2Crankcase 06E103011CA
- 3Cover 036103113A
- 4Insert 06E103138G
- 5Flange 06E103153E
- 6Vent 06E103158H
- 7Flange 06E103171L
- 8Valve 059103175F
- 10Sleeve 022103139B
- 12Shaft 06E103273AD
- 13Weight 06E103331E
- 14Weight 06E103332B
- 15Trim 06E103547E
- 16Cover 06E103407F
- 17Oil Sump 06E103601J
- 19Lock 06E103623H
- 20Seal 06E103517
- 22Seal Ring 06C115444
- 23Screw WHT000399
- 25Part 055105277
- 26Part 06E115243D
- 27Bolt N10405604
- 28Sleeve 077115143D
- 29Seal 06E103181K
- 30Seal 06E103181L
- 33Sleeve 01E301153G
- 34Ring 01X103551
- 40Cover N01190310
- 41Cover N0119047
- 42Bolt N10156206
- 44Screw N90870602
- 46Bolt N10347103
- 46Bolt N10451401
- 46Bolt N10451407
- 48Bolt N10451409
- 50Seal Ring N90951301
- 51Seal Ring 06E103181M
- 53Seal Ring N0138157
- 53Screw N0160276
- 55Bolt N90851702
- 57Bolt N90893202
- 58Bolt N90071102
- 59Bolt N91071001
- 60Bolt WHT002671
- 61Bolt N91071701
- 62Seal D174003A2
- 63Seal Ring 06E103181N
- 70Screw N91138901
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06E103604K Audi Oil Sump | Genuine OEM Engine Oil Pan is fitted on: Audi A6/S6/Avant/qu. 05> 2004-; AUDI A6L "CN"05> 2005-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A4L 2.0 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A6 Av. qu. 3.0 2012-2018; Audi A6 L 2.0 2011-2013; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A8L qu. 3.0 TDI 2013-2018; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; audi a6 1.8 2015-2019; touareg 2010-2012; touareg 2012-2014; Touareg BlueMotion 2014-2018.
