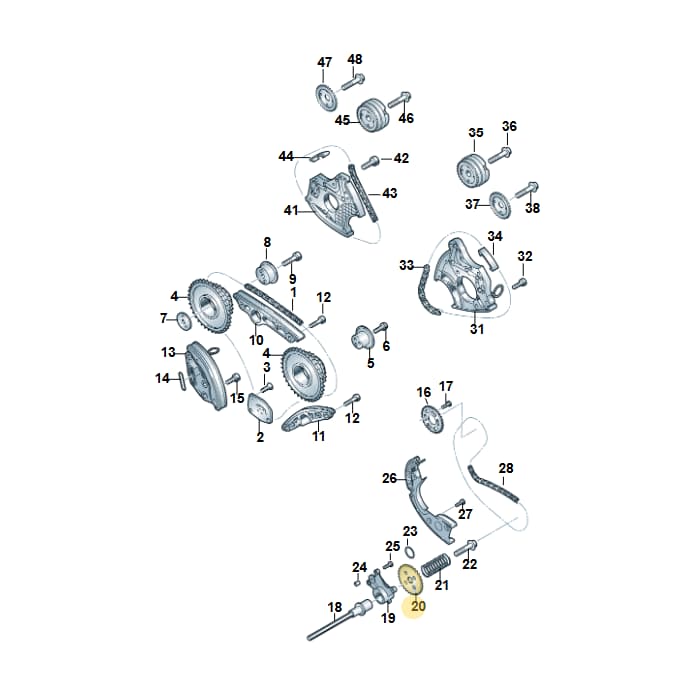

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Control Chain Wheel, part number 06E109570B. This critical component transfers rotational motion within the engine timing system, ensuring precise synchronization of engine valves. It is located within the engine's timing chain assembly. Weighing approximately 0.201 kg, this part is manufactured to exact specifications. Choosing genuine OEM ensures factory-specified tolerances and material quality for reliable, long-term engine performance.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84839081
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8.8 × 8.8 × 0.6 cm
- Shipping weight
- 0.2 kg
Parts diagram & fitment
30 vehiclesChain Sprocket — locate 06E109570B Audi Engine Control Chain Wheel | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 06E109507C — the later replacement part.
Parts in this assembly(35)
- 1Chn Sprckt 059109077E
- 2Adjuster 06E109083G
- 3Adjuster 06E109084G
- 5Chn Sprckt 057109116J
- 8Tensioner 06E109217H
- 9Tensioner 06E109218H
- 10Part 057109224D
- 11Part 057109224B
- 12Timing Cha 06E109229A
- 13Timing Cha 06E109229F
- 14Timing Cha 079109229L
- 16Part 06E109339K
- 17Plate 06E109360A
- 20Washer 079109435G
- 21Timing Cha 06E109465
- 22Tensioner 06E109467H
- 23Rail 059109469F
- 24Rail 059109469E
- 25Press Spring 059109481
- 26Tensioner 06E109507D
- 27Rail 079109510M
- 30Bolt N10124306
- 31Bolt N10451409
- 32Bolt N91071701
- 32Bolt N10413401
- 37Seal Ring N90364901
- 38Screw N90668204
- 39Bolt N90954903
- 40Sleeve N91020801
- 41Bolt N91042802
- 42Screw N91026802
- 43Screw N91073701
- 45Washer WHT000124
- 46Seal 06E109139G
- 47Seal 06E109139F
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06E109570B Audi Engine Control Chain Wheel | Genuine OEM is fitted on: Audi A8/S8/qu. lang 2003-2007; Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4/Av./qu. 05> 2005-; AUDI A6L "CN"05> 2005-; Audi A4/S4 Cabrio./qu. 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A4L 2.0 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A6 Av. qu. 3.0 2012-2018; Audi A6 L 2.0 2011-2013; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A8L qu. 3.0 TDI 2013-2018; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; audi a6 1.8 2015-2019; touareg 2010-2012; touareg 2012-2014; Touareg BlueMotion 2014-2018.
