Product overview

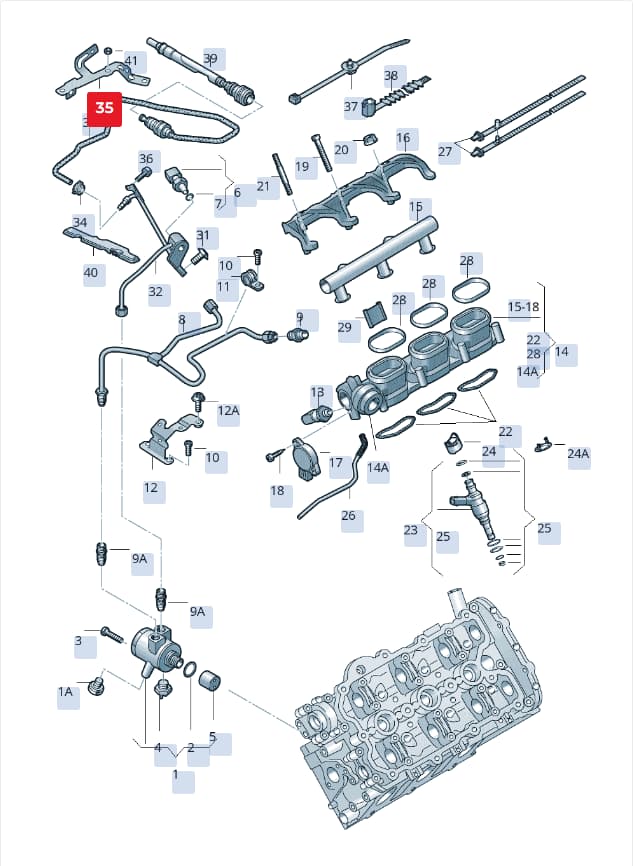

Genuine OEM Audi Support For Fuel Hose, part number 06E971501B. This part secures the fuel hose in its correct position within the engine bay. It is marked as number 35 in the diagram. Genuine OEM parts ensure exact fit and secure mounting.
Technical details
- Category
- Electrical & Wiring
- Customs (HS) code
- 73269098
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14.5 × 8.5 × 3.2 cm
- Shipping weight
- 0.07 kg
Parts diagram & fitment
1 vehicleBracket For Fuel Hose — locate 06E971501B Audi Fuel Hose Support | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Part 07L127026Q
- 1Part 07L127026J
- 1AScrew 06E127535C
- 2Seal Ring 06E127248
- 3Screw N91048802
- 3Screw N91026802
- 6Sensor 06E906051K
- 7Seal Ring 06E906149B
- 8Fuel Line 06E127501AA
- 9Adapter 06E127065D
- 9AAdapter 07L127065A
- 10Bolt N10405604
- 11Bracket 06E127233D
- 12Bracket 06E127233N
- 12AScrew N10442003
- 13Sensor 03C906051C
- 14Lower Part 06E133109AP
- 14Lower Part 06E133110AL
- 14Lower Part 06E133110AP
- 14Lower Part 06E133109AL
- 15Rail 06E130089Q
- 15Rail 06E130090F
- 15Rail 06E130090T
- 15Rail 06E130089D
- 16Part 06E133340E
- 16Part 06E133340C
- 17Potentiome 06E907386D
- 18Screw N10535603
- 19Screw N10731401
- 19Screw N10626801
- 20Collar Nut N01508210
- 21Bolt N91063801
- 22Seal 079129717B
- 23Part 06E906036AC
- 23Part 06E906036P
- 24Support Element 06D133036H
- 24ASupport Element 06E906189F
- 25Repair Kit 06E998907E
- 26HoseLeft06E133791G
- 26HoseRight06E133792G
- 27Binder 4A0820199
- 28Seal 079129717D
- 31Bolt N01021723
- 32Fuel Line 06E127509R
- 33Hose 06E127513M
- 33Hose 06E127513A
- 34Clamp N90686701
- 36Screw N10622502
Diagrams & fitment data powered by oemdiagrams.com
06E971501B Audi Fuel Hose Support | Genuine OEM is fitted on: Audi Q7 qu. 3.0 TDI 2009-2015.
