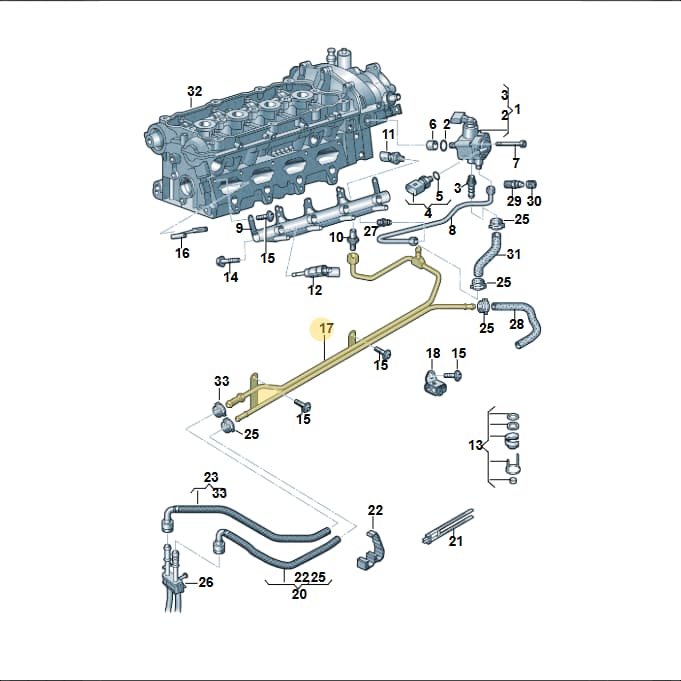

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 06F127509AB. This component is a critical part of the fuel delivery system, designed to transport fuel from the fuel pump to the engine. Its precise internal diameter and material composition are engineered to maintain correct fuel pressure and flow rates. Genuine OEM fuel lines are manufactured to exact specifications, ensuring leak-free connections and optimal performance of the fuel system.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42 × 11 × 7 cm
- Shipping weight
- 0.24 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
28 vehiclesFuel Line — locate 06F127509AB Volkswagen Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Pump 06F127025K
- 2Seal Ring WHT005184
- 3Union 06F127213C
- 4Sensor 06E906051K
- 5Seal Ring 06E906149B
- 6Tappets 06D109309C
- 7Screw N10624701
- 8Fuel Line 06F127501AF
- 9Rail 06F133317L
- 10Valve 06D130757C
- 11Sensor 06J906051D
- 12Valve 06F906036F
- 13Repair Kit 06D998907
- 15ScrewRightN90735802
- 18Clip 06F130401A
- 20Hose 6R0133366A
- 21Binder 4A0820199
- 22Bracket 6R0133687F
- 23Fuel Line 06F133986
- 25Clamp N90986501
- 27Adapter 06E127065B
- 29Valve 06D133400A
- 30Part 06F133335A
- 31Hose 06F127511B
- 33Clamp N91020301
Vehicle fitment table28
Europe (25)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Scirocco 2.0 | 2014-2017 | 17 | 1 | ||
| Polo | 2012-2014 | 17 | 1 | ||
| Golf Cabriolet | 2011-2016 | 17 | 1 | ||
| Golf | 2011-2013 | 17 | 1 | ||
| Audi A1 Sportback | 2010-2015 | 17 | 1 | TA2 | |
| Audi TTS Coupe 2.0 | 2010-2014 | 17 | 1 | TA2 | |
| Leon Stylance | 2010-2012 | 17 | 1 | TA2 | |
| Scirocco 2.0 | 2008-2014 | 17 | |||
| Audi A3 Sportback | 2008-2013 | 17 | 1 | TA2 | |
| golf 2.0 | 2008-2011 | 17 | 1 | ||
| jetta | 2008-2011 | 17 | 1 | ||
| EOS 2.0 | 2008-2010 | 17 | |||
| GOLF VARIANT 07> | 2007- | 17 | |||
| Passat/4Motion 08 | 2007- | 17 | |||
| Audi TT Coupe/Roadster 08> | 2007- | 17 | 1 | T59 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 17 | 1 | TA2 | |
| EOS-Cabriolet-Coupe | 2006- | 17 | |||
| JETTA 06> | 2006- | 17 | |||
| JETTA 06> | 2005- | 17 | |||
| LEON 06> | 2005- | 17 | 1 | BWJ,CDLD | |
| Passat/4Motion | 2005-2007 | 17 | |||
| Audi A3/S3/quattro | 2005-2007 | 17 | 1 | T59 | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 17 | |||
| ALTEA | 2004-2006 | 17 | |||
| GOLF | 2003-2005 | 17 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 17 | 1 | ||
| Jetta "USA"05> | 2005- | 17 | |||
| Golf/Rabbit | 2005-2007 | 17 |
Diagrams & fitment data powered by oemdiagrams.com
06F127509AB Volkswagen Fuel Line | Genuine OEM is fitted on: Scirocco 2.0 2014-2017; Polo 2012-2014; Golf Cabriolet 2011-2016; Golf 2011-2013; Audi A1 Sportback 2010-2015; Audi TTS Coupe 2.0 2010-2014; Leon Stylance 2010-2012; Scirocco 2.0 2008-2014; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; jetta 2008-2011; EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; Passat/4Motion 08 2007-; Audi TT Coupe/Roadster 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Jetta "USA"05> 2005-; Golf/Rabbit 2005-2007.
