Product overview

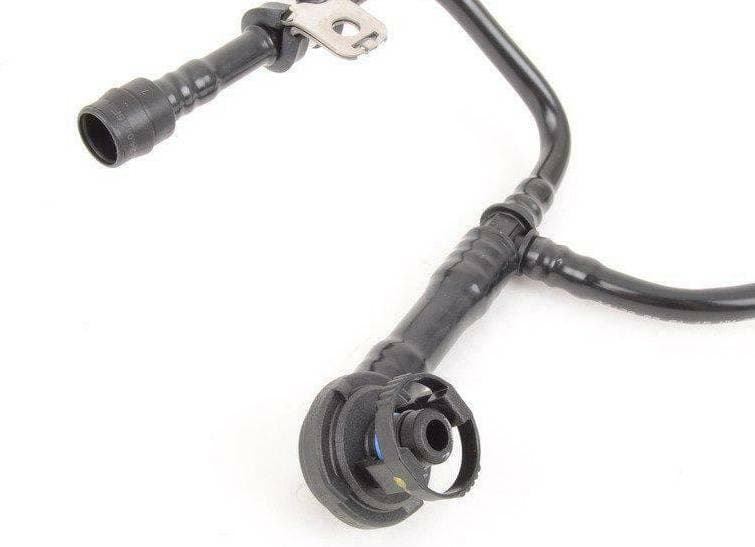

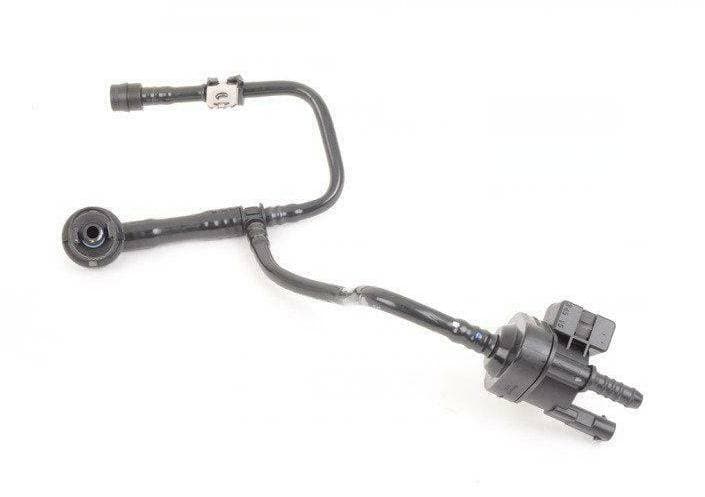

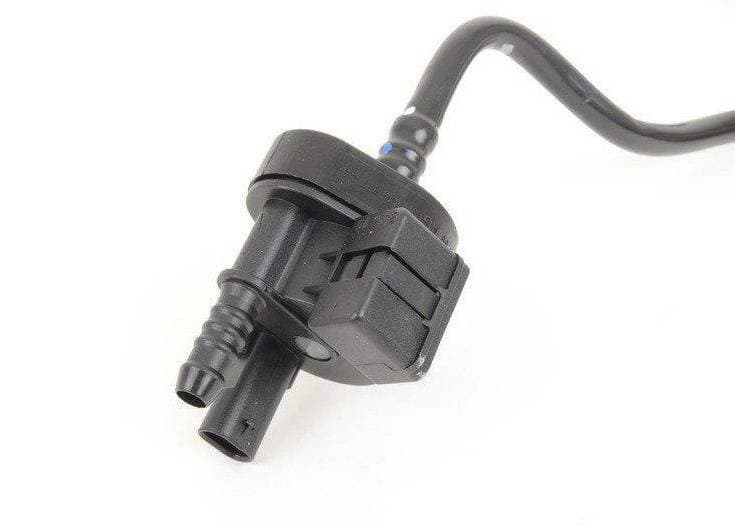

Genuine OEM Audi EVAP Purge Valve Hose Assembly, part number 06H133781CK. This integrated component is crucial for the evaporative emissions (EVAP) system, controlling the precise flow of fuel vapors from the charcoal canister into the engine for combustion. It ensures proper emissions control and engine efficiency. The assembly includes the necessary hoses and connectors for a complete installation. Weighing 0.142 kg, this plastic and rubber assembly is engineered for durability and resistance to fuel vapors. Using a genuine OEM purge valve hose assembly guarantees correct valve calibration, hose routing, and material compatibility for reliable emissions system operation.
Technical details
- Category
- Emissions
- Country of origin
- Hungary
- Customs (HS) code
- 84818059
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29 × 13 × 9 cm
- Shipping weight
- 0.14 kg

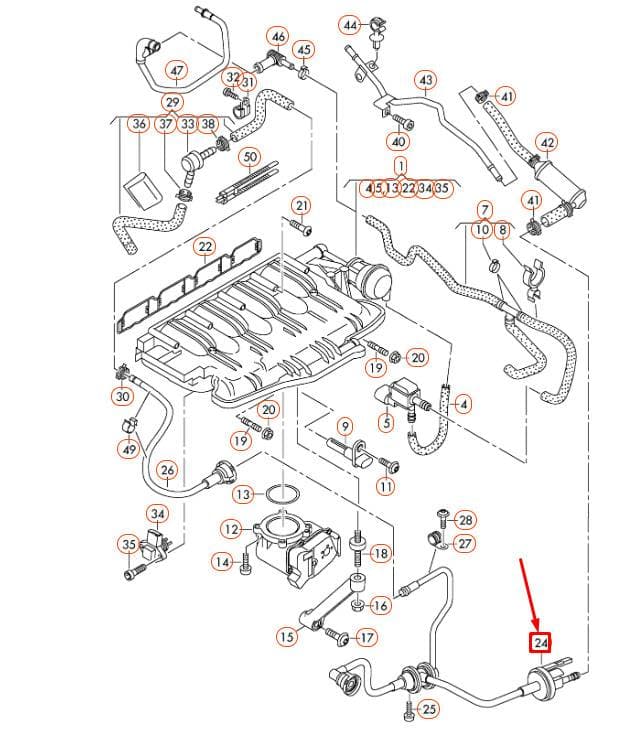

Parts diagram & fitment

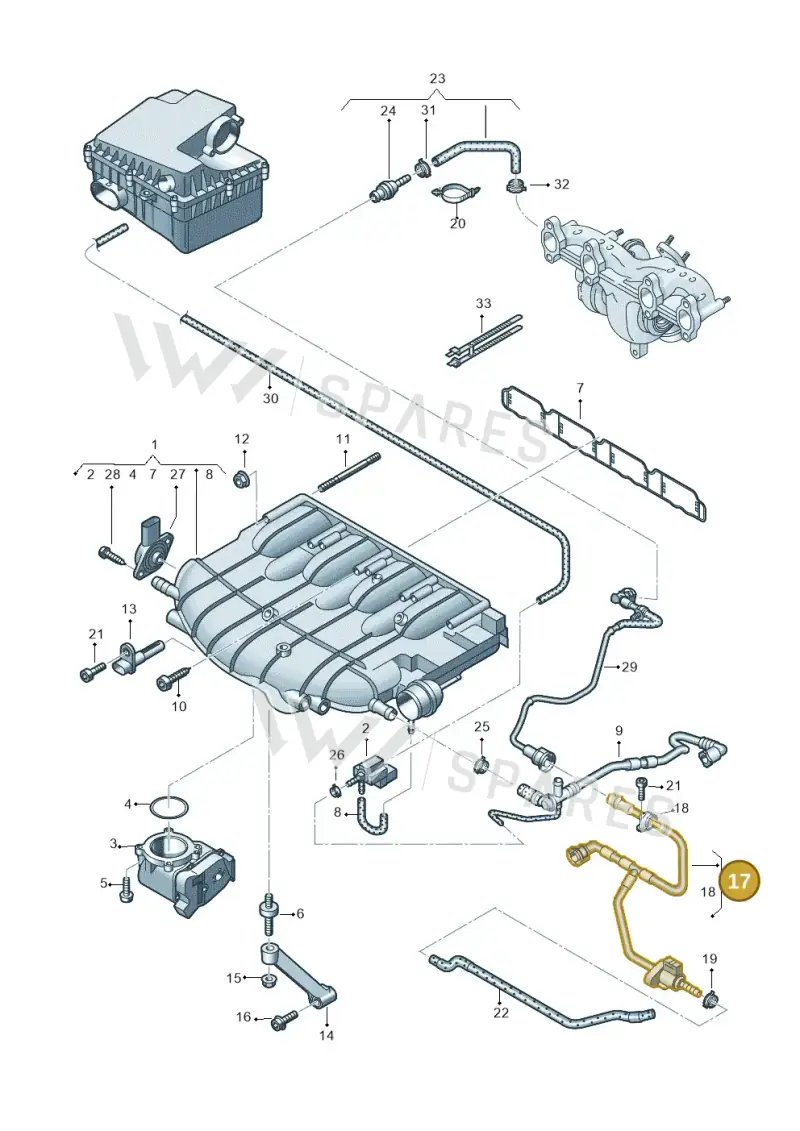

7 vehiclesHose Set With Clips — locate 06H133781CK Audi EVAP Purge Valve Hose Assembly | Fuel System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(38)
- 1Intake Man 06H133201AN
- 4Part N02035327
- 5Valve 06H906283B
- 5Valve 037906283C
- 7Hose 06H133241K
- 9Temperature Sensor 06B905379D
- 10Clamp N10231301
- 11Screw N10721401
- 12Adapter 06F133062T
- 13Seal 06F133073D
- 14Bolt N10626101
- 15Support 06H129723K
- 16Collar Nut N10609203
- 17Screw N10649401
- 18Rubber Bush 06F121273A
- 19Bolt N10581602
- 19Bolt N91180801
- 19Bolt N10277103
- 20Part N01100636
- 21Bolt N91089601
- 22Seal 06F129717D
- 25Screw N0140872
- 26Hose 06H133518R
- 27Clamp N10782501
- 27Clamp N0206096
- 28Bolt WHT001481
- 29Hose 06H133781AS
- 30Clamp N10108301
- 34Sensor 07L907386B
- 35Bolt N10721301
- 36Sleeve 2D0971461A
- 40Screw N10546402
- 41Clamp N90986501
- 42Hose 06H133781AT
- 43Line 06H133518AA
- 44Clip WHT003436
- 46Connector Piece 06H133537
- 50Binder 4A0820199
Diagrams & fitment data powered by oemdiagrams.com
06H133781CK Audi EVAP Purge Valve Hose Assembly | Fuel System is fitted on: Audi A4 Av. Allroad 2008-2016; audi a6 2.0 tdi 2010-2015; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Amarok twin cab 2012-2016; Amarok twin cab 2016-2022.
