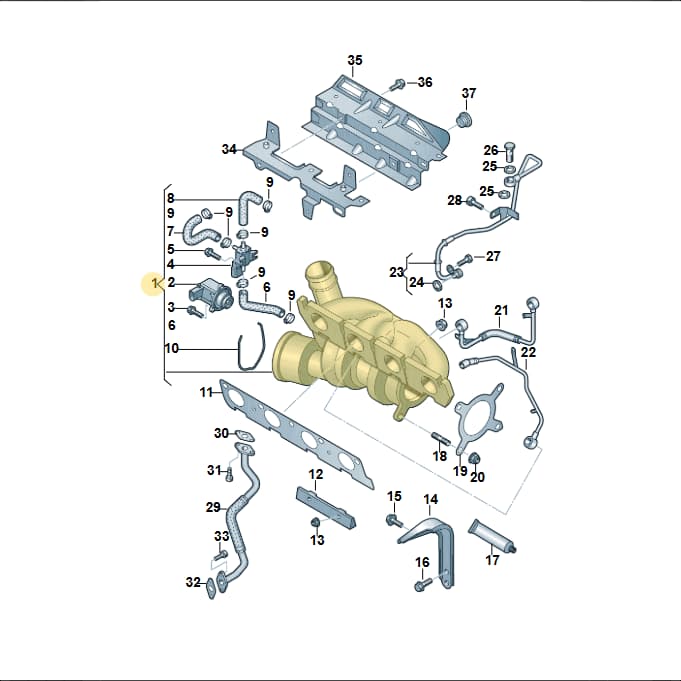

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Exhaust Manifold With Turbocharger, part number 06J145722B. This integrated assembly combines the exhaust manifold and the turbocharger, crucial for boosting engine power by forcing compressed air into the combustion chambers. It is positioned in the exhaust system, directly connected to the engine's exhaust ports. Constructed from high-temperature resistant materials to withstand extreme exhaust gas conditions. Genuine OEM parts ensure factory-calibrated performance, precise fitment, and long-term durability under demanding operating conditions.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 84148011
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 51 × 31 × 20 cm
- Shipping weight
- 12.7 kg
Parts diagram & fitment
17 vehiclesExhaust Manifold With Turbocharger — locate 06J145722B Volkswagen Exhaust Manifold With Turbocharger | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(36)
- 1Part 06J145713TX
- 1Part 06J145722BX
- 1Part 06J145713T
- 2Valve 06H145710C
- 2Valve 06H145710J
- 2Valve 06F145710G
- 3Bolt N10546404
- 4Valve 06F906283F
- 5Screw N10459201
- 6Hose 06J145718D
- 7Hose 06J145718E
- 8Hose 06J145718F
- 9Clamp 3C0131483
- 10Seal Ring WHT006482
- 10Clip 1J0145769D
- 11Seal 06F253039F
- 12Bracket 06F253709A
- 13Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 14Support 06J145536M
- 15Screw N91103701
- 16Screw N91117901
- 17Paste G052112A3
- 18Bolt N0445203
- 19Seal 1K0253115AB
- 20Ut Hexagon Nut Self-locking Hexagon Nut N90369001
- 23Oil Pipe 06J145778H
- 24Seal Ring N90067202
- 25Seal Ring N0138514
- 26Screw WHT000223
- 27Screw N10619201
- 29Oil Pipe 06H145735H
- 30Seal 06F145757L
- 34Retainer 06J145383B
- 35Cover 06H129597B
- 36Screw N10627801
- 37Screw N0160255
Compatible / alternative parts(12)
- Part 06F253039E
- Part 06F145757C
- Part 06F145757G
- Part 06F145757H
- Part 06F145757L
- Part 06F145757M
- Part 06F253039F
- Part 06F253039G
- Part 06F253039J
- Part 1K0253115AB
- Part 1K0253115K
- Part N10286108
Diagrams & fitment data powered by oemdiagrams.com
06J145722B Volkswagen Exhaust Manifold With Turbocharger | Genuine OEM is fitted on: Golf/Rabbit 08> 2007-; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; Passat CC 2008-2012; golf 2.0 2008-2011; Scirocco 2.0 2008-2014; EOS 2.0 2008-2010; passat estate 2008-2011; Sharan Blue Motion 2010-2015; Passat saloon 2010-2015; Eos BlueMotion 2010-2015; Golf Cabriolet 2011-2016; Tiguan 4Motion 2011-2018; Golf 2011-2013; Passat CC 2011-2016; Scirocco 2.0 2014-2017; Audi Q3 2.0 TDI 2014-2019.
