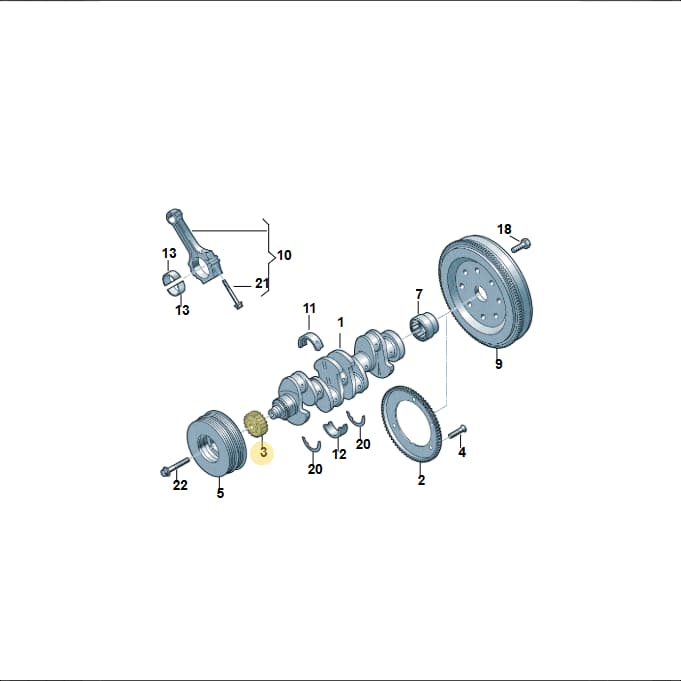

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Crankshaft Sprocket, part number 06K105209J. This essential engine component is responsible for driving the timing chain, ensuring precise synchronization between the crankshaft and camshafts for optimal valve and piston movement. It is mounted directly onto the crankshaft. Weighing 0.447 kg, this sprocket is manufactured to exact specifications. Choosing a genuine OEM sprocket guarantees the correct tooth profile, material hardness, and dimensional accuracy, which are critical for reliable engine timing and preventing catastrophic engine damage.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Slovakia
- Customs (HS) code
- 84839081
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8.1 × 8.1 × 4.1 cm
- Shipping weight
- 0.45 kg
Parts diagram & fitment
30 vehiclesChain Sprocket — locate 06K105209J Audi Crankshaft Sprocket | Engine Timing in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 1Crankshaft 06L105101F
- 2Rotor 050105189B
- 2Rotor 050105189K
- 4Screw 053105229A
- 5Damper 06L105243AC
- 5Damper 06L105243AP
- 5Damper 06L105243AS
- 9Clutch Pla 06H105323AE
- 10Con Rod 06H198401D
- 11Bearing 06K105561AC
- 12Brg Shell 06K105591AC
- 13Bearing 06H105701R
- 18Screw N90665001
- 18Screw WHT009773
- 20Washer WHT000033P
- 21Bolt WHT001319
- 22Part WHT001760
- 22Bolt WHT009475
- 23Flywheel 0CK105317AE
- 23Flywheel 0CK105317AP
- 24Bolt N91143203
Compatible / alternative parts(12)
- Part WHT001760
- Part 058103598D
- Part 06H109158J
- Part 06H109158L
- Part 06H109158P
- Part 06K109158
- Part 06K109158AA
- Part 06K109158AC
- Part 06K109158AD
- Part 06K109158BC
- Part 06K109158BE
- Part 06K109158BK
Diagrams & fitment data powered by oemdiagrams.com
06K105209J Audi Crankshaft Sprocket | Engine Timing is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A1 sportback 1.0 2018-; Audi A3 Sportback 2019-2021; Audi Q3 quattro 2018-2019; Audi Q2 2.0 TDI 2016-2018; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi TTS Coupe 2.0 2014-2023; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi A5 Sportback 2016-2020; Leon style 2019-; Formentor TSI CUPRA 2020-; Tarraco FR 2018-2024; Leon ST Stylance 2016-2020; Ateca Style 2016-; Passat saloon 2014-2024; Tiguan 2.0 4Motion 2016-2022; T-Roc BlueMotion 2017-2024; Arteon 2017-2023; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2018-2022; Octavia 2019-2024; Kodiaq 2016-2024; Octavia 2017-2020; Karoq 2017-2022; Superb Combi 2015-2024.
