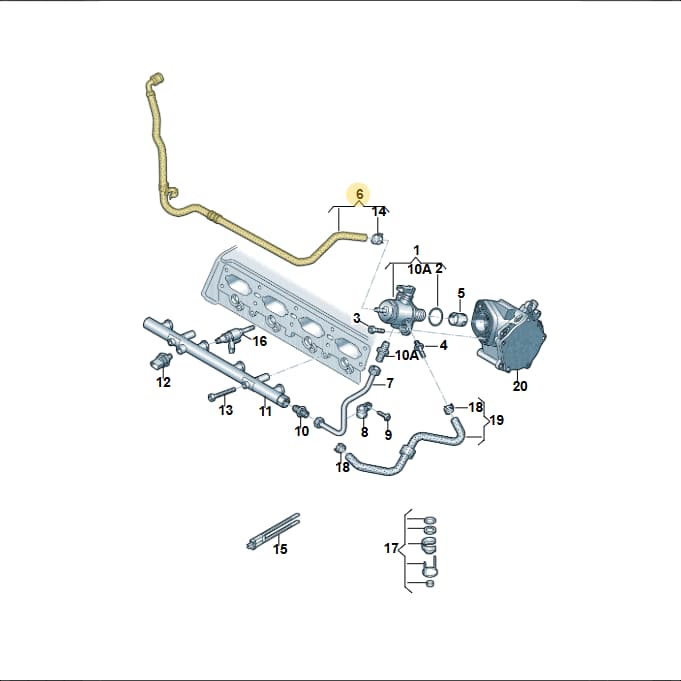

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 06K133986AL. This fuel line is a component of the fuel delivery or intake system, designed for precise routing and connection between components. Genuine OEM fuel lines are manufactured to withstand fuel exposure and maintain integrity for optimal performance.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44 × 24 × 9.5 cm
- Shipping weight
- 0.22 kg
Parts diagram & fitment

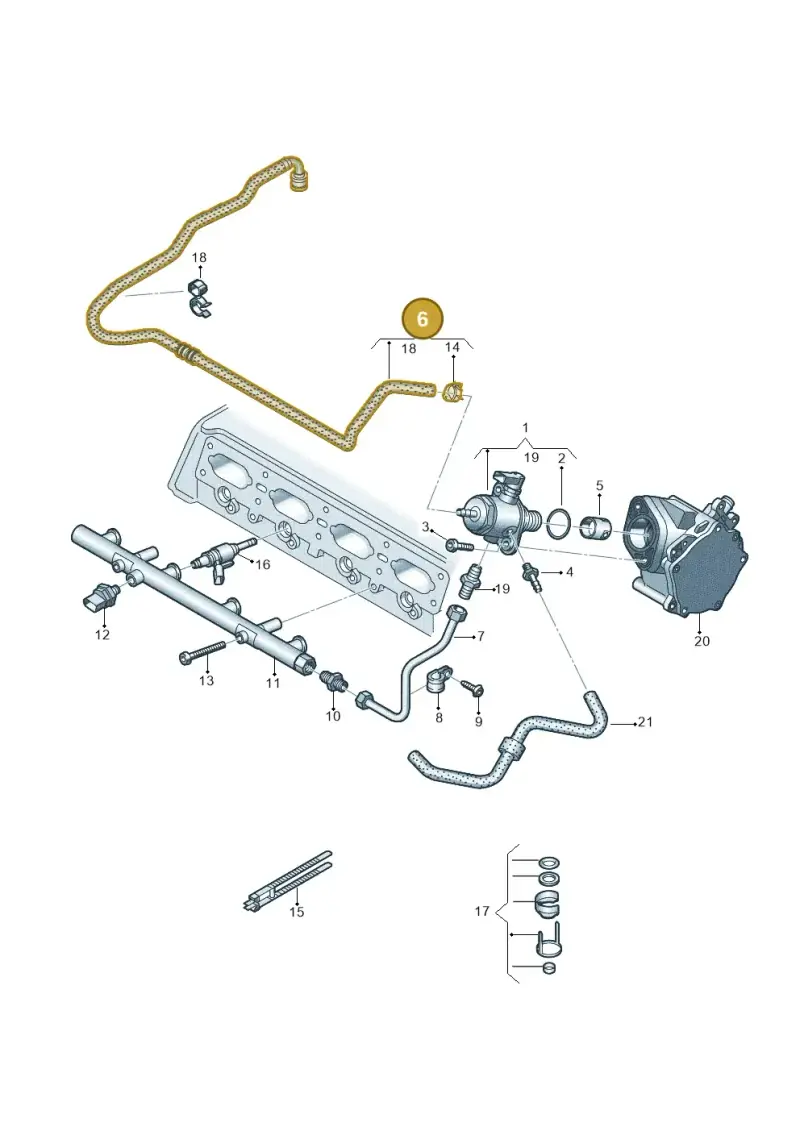

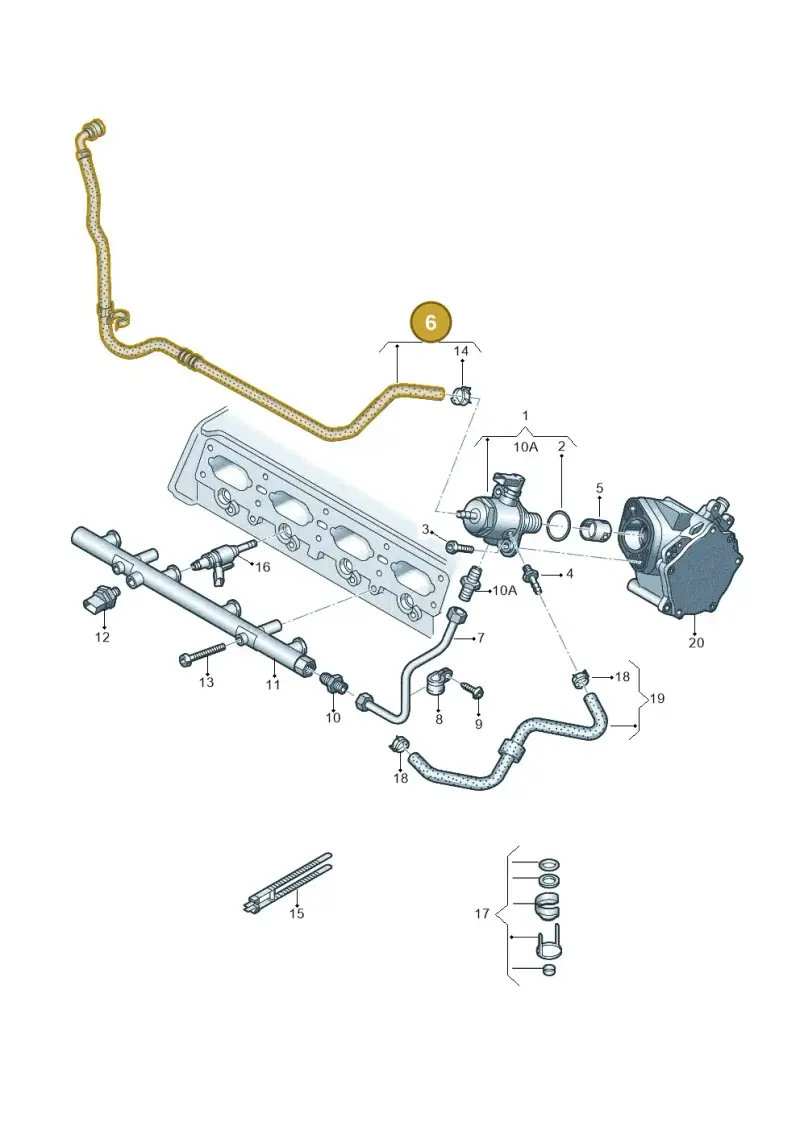

6 vehiclesFuel Line — locate 06K133986AL Volkswagen Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(18)
- 1Pump 06L127025M
- 2Seal Ring WHT005184
- 3Screw N91128701
- 4Connection 06L127213E
- 4Connection 06L127213C
- 5Tappets 06L109311
- 7Fuel Line 06K127501H
- 8Clamp N0206096
- 9Bolt N90925202
- 10Adapter 06K127065B
- 10AUnion 06L127065
- 11Rail 06K133317G
- 12Sensor 06J906051F
- 13Bolt N91131001
- 14Clamp N90986501
- 15Binder 4A0820199
- 16Valve 06L906036K
- 17Repair Kit 06J998907B
Diagrams & fitment data powered by oemdiagrams.com
06K133986AL Volkswagen Fuel Line | Genuine OEM is fitted on: new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Scirocco 2.0 2014-2017; Beetle 2016-2019; new beetle cabriolet 2016-2019.
