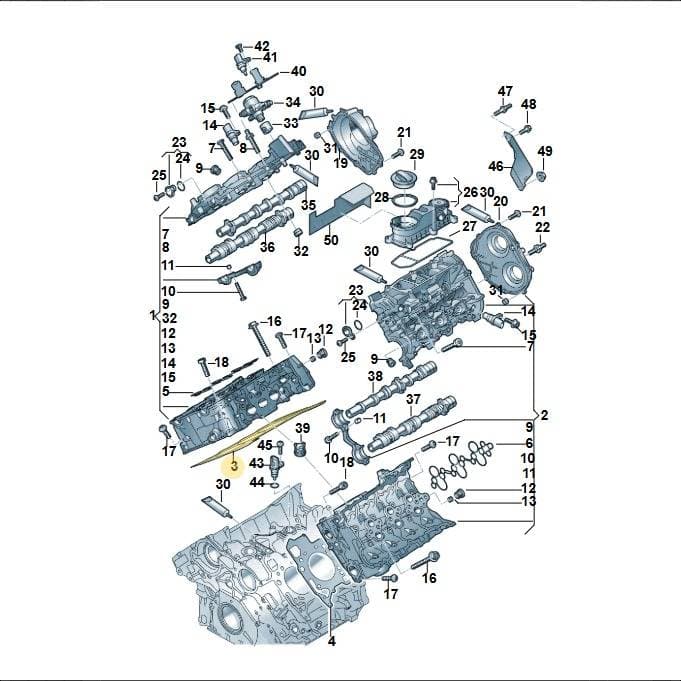

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Cylinder Head Gasket, part number 06M103148L. Seals the combustion chamber, oil passages, and coolant passages between the cylinder head and engine block. It is located between the cylinder head and the engine block. The part weighs 0.365 kg and measures 0.395m x 0.21m x 0.005m. Genuine OEM gaskets ensure precise sealing to prevent leaks and maintain engine compression.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39.5 × 21 × 0.5 cm
- Shipping weight
- 0.37 kg
Parts diagram & fitment
14 vehiclesCylinder Head Gasket — locate 06M103148L Volkswagen Cylinder Head Gasket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by WHT005739 — the later replacement part.
Parts in this assembly(48)
- 1Cylinder Head 06M103062BQ
- 2Cylinder Head 06M103061BQ
- 4Seal 06M103149J
- 5Seal 06M103650L
- 6Seal 06M103649L
- 7Bolt N91127602
- 8Bolt N91184801
- 9Bolt N91103401
- 11Sleeve 059103139B
- 12Screw N91167901
- 13Restrictor 06M103271B
- 14Part 06M907601E
- 15Bolt N10196103
- 16Screw WHT005739
- 18Screw N90903502
- 19Cover 06M109286L
- 20Cover 06M109285L
- 21Bolt N10124306
- 22Bolt N91004802
- 23Cover 06M145420A
- 24Seal Ring N0282222
- 25Bolt N10451408
- 26Separator 06M103515P
- 27Seal 06M103517H
- 28Seal 06M103727C
- 29Cover 06M103485D
- 30Seal D176501A1
- 31Sleeve 058103139
- 32Valve 06M103201D
- 33Tappets 06L109311
- 39Valve 06M121349A
- 41Sensor 06M919501
- 42Bolt N10451405
- 43Sensor 079919523J
- 44Seal Ring WHT002287B
- 45Bolt N10405604
- 46At Heat Reflective Mat Heat Reflective Mat Heat 06M971461C
- 47Cover 06M133919A
- 50Sender 06M907602
- 51Cover 06M103111B
- 53Sensor 05E906277A
- 54Screw N91304001
- 55Bolt N90737107
- 56Pipe 06M103217EG
- 57Hose 06M103210FS
- 58Part WHT002783
- 59Part 3D0971838M
- 60Screw N10721401
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06M103148L Volkswagen Cylinder Head Gasket | Genuine OEM is fitted on: Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; touareg 2017-2023.
