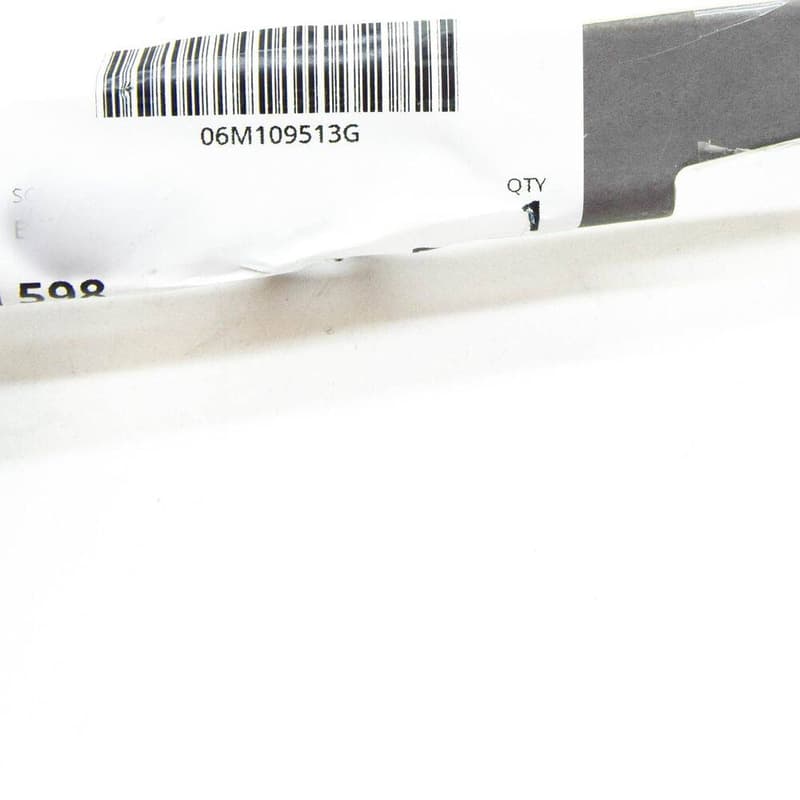

Genuine OEM Audi Engine Timing Chain Guide Rail, part number 06M109513G. This guide rail is a critical component within the engine's timing system, responsible for precisely guiding the timing chain. Installed on the left side, it ensures the chain maintains correct tension and alignment, preventing slack and potential damage. Constructed from durable plastic and metal, it weighs approximately 0.1561 kg. Using a genuine OEM guide rail ensures the correct material composition and dimensional accuracy, which are vital for maintaining precise engine timing, reducing wear, and extending engine life.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 19.7 × 5 × 2.4 cm
- Shipping weight
- 0.16 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
19 vehiclesSlide Rail — locate 06M109513G Audi Engine Timing Chain Guide Rail | Left Side in the official exploded view and explore the surrounding assembly.
Superseded by 058103598D — the current replacement part (via 06M109509L).
This part is marked discontinued by the manufacturer (since 2024-07-01); contact us to check current availability.
Parts in this assembly16
- 1Tim Chain 06M109450P
- 2Tensioner 06M109218F
- 3Bolt N10124304
- 4Part 06M109426E
- 5Lining 079109470
- 6Seatrunner 06M109514F
- 7Part 059109426T
- 8Bolt N91238501
- 9Timing Cha 06M109229AC
- 10Seatrunner 06M109509L
- 11Tensioner 06M109217G
- 13Bolt N10451405
- 16Chain 06M109229S
- 17Seatrunner 06M109469G
- 18Bolt N10405604
- 19Tensioner 06M109507F
Compatible / alternative parts(12)
Vehicle fitment table19
Europe (17)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Limo 2.0 | 2024- | 12 | 1 |
| Audi A5 Avant 2.0 | 2024- | 12 | 1 |
| Audi RS6 Avant | 2019- | 13 | 1 |
| Audi RS7 Sportback | 2019- | 13 | 1 |
| Audi RS Q8 Quattro | 2019- | 13 | 1 |
| Audi Q8 Quattro 3,0 | 2018- | 12, 13 | 1 |
| audi a6 2.0 | 2018- | 12 | 1 |
| Audi A7 Sportback | 2018- | 12 | 1 |
| Audi RS4 Avant | 2017- | 12 | 1 |
| Audi RS5 Sportback | 2017- | 12 | 1 |
| touareg | 2017-2023 | 12 | 1 |
| Audi A8L | 2017-2022 | 12, 13 | 1 |
| Audi Q5 | 2016-2020 | 12 | 1 |
| Audi A5 Sportback | 2016-2020 | 12 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 12 | 1 |
| audi a4 2.0 | 2015-2019 | 12 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 12, 13 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A7 | 2021- | 12 | 1 |
| Audi A6 L 2.0 | 2018- | 12 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06M109513G Audi Engine Timing Chain Guide Rail | Left Side is fitted on: Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-; Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi RS Q8 Quattro 2019-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A7 2021-; Audi A6 L 2.0 2018-.
