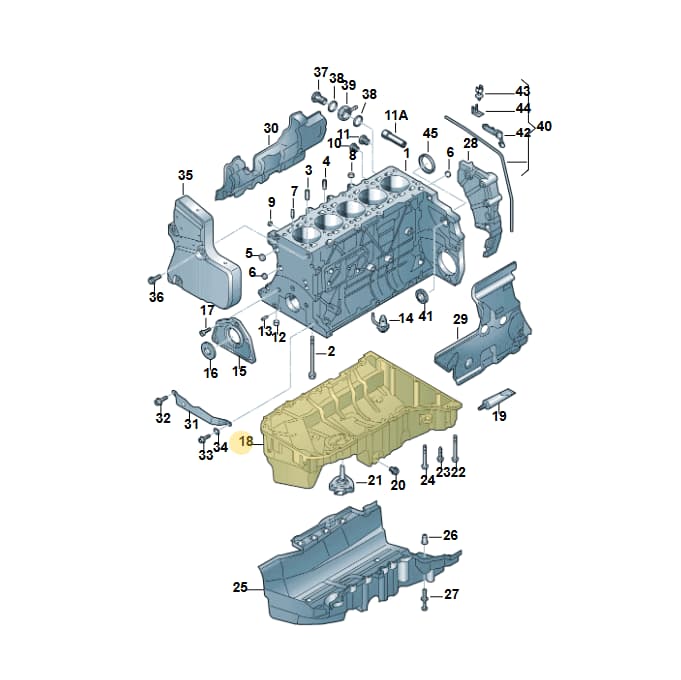

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Oil Pan, part number 070103603L. This oil pan is located at the bottom of the engine, collecting and storing engine oil. It features an opening for the oil level sensor. Genuine OEM parts ensure exact fitment and factory-quality operation.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 51.5 × 38.3 × 19.8 cm
- Shipping weight
- 5.89 kg
Parts diagram & fitment
14 vehiclesOil Sump — locate 070103603L Volkswagen Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(33)
- 2Screw 070103394
- 3Insert 070103136
- 4Valve 077103175B
- 5Cover N0119096
- 6Cover N01190310
- 7Part 026103139
- 8Cover N0119017
- 9Cover N0119185
- 10Bolt N90965401
- 11Screw N90971802
- 11AFilter 070121040A
- 12Sleeve 070103139
- 13Part N10478301
- 14Vent 070103157A
- 15Flange 070103153A
- 16Cover 070103189A
- 17Screw N10115306
- 19Seal D176404A2
- 20Bolt N90813202
- 22Bolt N90977601
- 23Bolt N91115701
- 24Bolt N90977401
- 25Cover 070103800G
- 25Cover 070103800E
- 27Clip 070103733
- 27Spring Rivet 074103952
- 28Part Plate 070825245A
- 29Part Plate 070825246
- 30Part Plate 070825246B
- 38Seal Ring N0138487
- 40Hose 070121621
- 41Seal Washer 070903107
- 42Clip 070121136
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
070103603L Volkswagen Oil Pan | Genuine OEM is fitted on: TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009.
