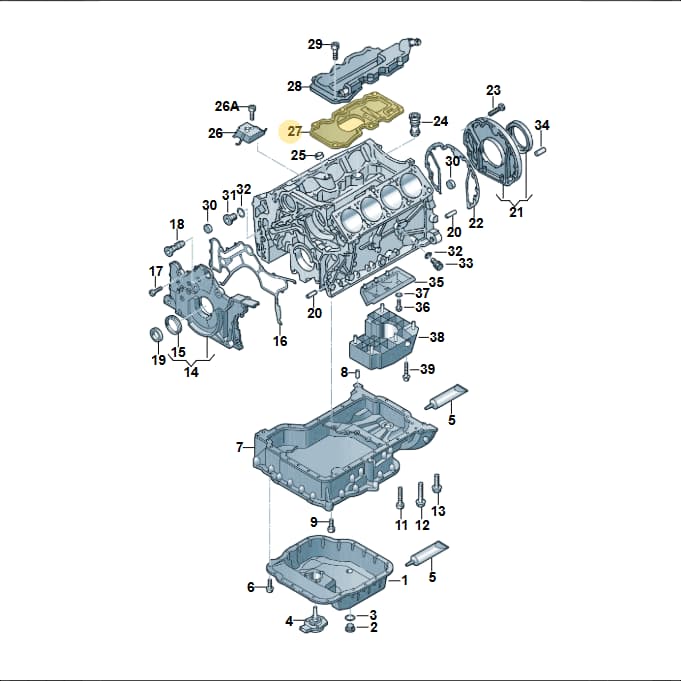

Number 27 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Sheet Metal Partition, part number 077103197D. This part functions as a baffle or shield within the engine, often used in oil sumps or crankcases to manage oil flow, reduce splashing, and aid in oil separation. It is installed within the engine block or oil pan assembly. Genuine OEM sheet metal partitions are constructed from durable materials and formed to precise specifications to ensure optimal oil management and prevent oil-related issues within the engine.
Technical details
- Category
- Engine
- Country of origin
- Hungary
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34 × 28 × 8 cm
- Shipping weight
- 0.5 kg
Parts diagram & fitment
4 vehiclesFiller Plate — locate 077103197D Volkswagen Sheet Metal Partition | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(46)
- 1Oil Sump 077103602F
- 2Plug 028103059A
- 3Seal Ring N0138503
- 5Seal D176501A1
- 6Bolt N10340702
- 6Bolt N90071102
- 7Oil Sump 077103603AE
- 8Sleeve 077115143B
- 9ScrewLeftN90853801
- 9ScrewRightN90853802
- 11Screw N90853901
- 11Screw N90853903
- 12Bolt N10035204
- 13Bolt N0903168
- 14Flange 077103151H
- 15Seal Washer 077115147A
- 16Seal 077103161G
- 17Bolt N90827703
- 18Vent 077115540B
- 19Bearing 077105257
- 20Part N0432072
- 21Flange 077103171N
- 22Seal 077103181H
- 23Bolt N10131305
- 24Valve 059103175F
- 25Cover N0119034
- 26Vent 077103158K
- 26AScrew N10169902
- 28Cover 077103129J
- 29Bolt N10156206
- 29Screw N10117405
- 30Cover N0119085
- 31Screw N0160291
- 31Bolt N91116001
- 32Seal Ring N0138321
- 33Screw N0160293
- 34Sleeve 022103139B
- 35Plate 077103097C
- 36Bolt N0103404
- 36Bolt N10668401
- 36Bolt N0195315
- 36Bolt N90552901
- 37Washer N01152527
- 38Insert 077103138H
- 39Screw N10405702
- 39Screw N90338204
Compatible / alternative parts(3)
Diagrams & fitment data powered by oemdiagrams.com
077103197D Volkswagen Sheet Metal Partition | Genuine OEM is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2010-2016; Audi A8/S8/qu. lang 2003-2007.
