Product overview

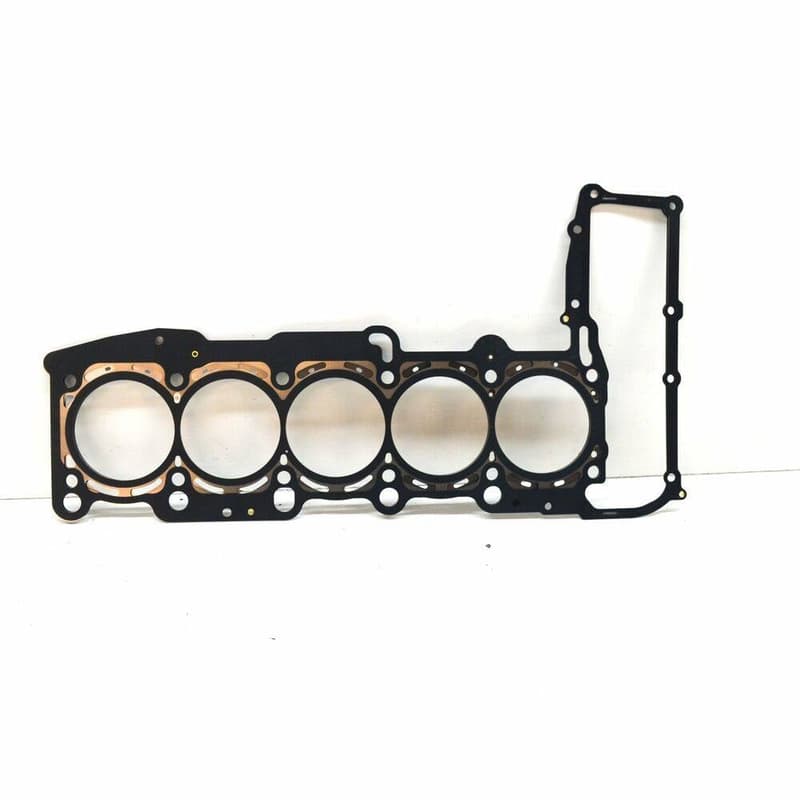

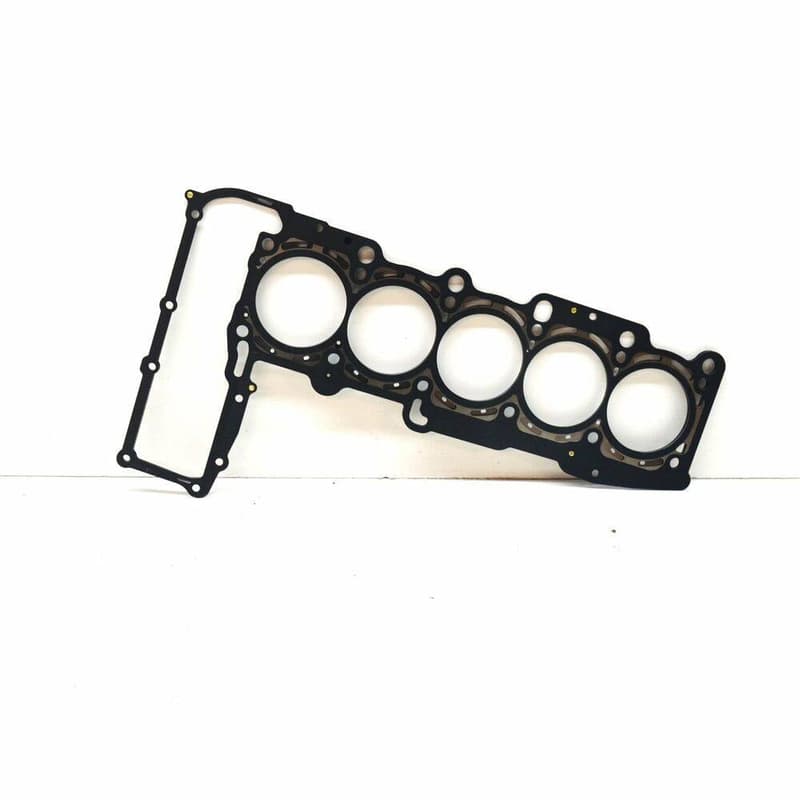

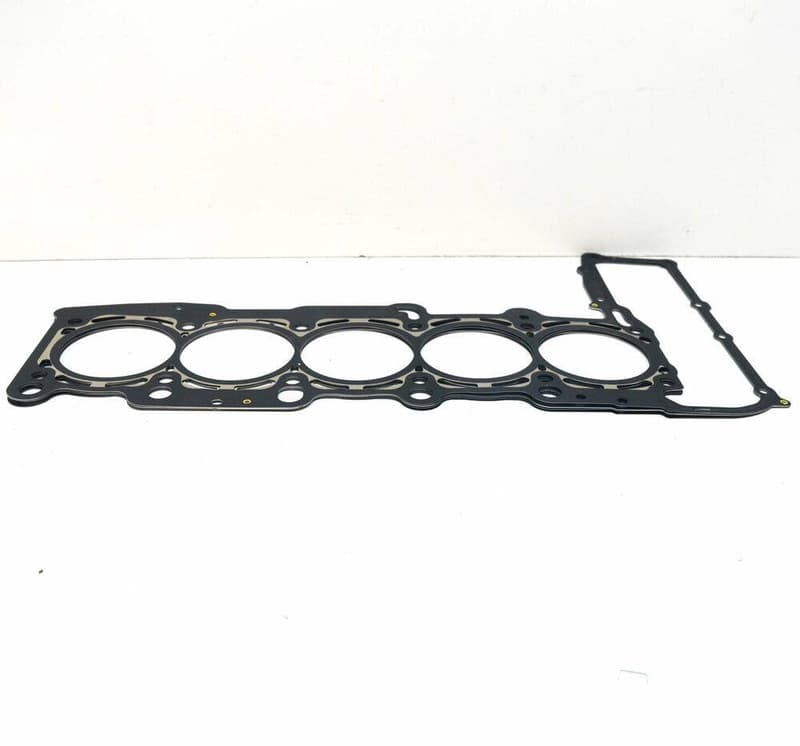

Genuine OEM Audi Cylinder Head Gasket, part number 07K103383AF. This critical engine component creates a tight seal between the cylinder head and the engine block, preventing combustion gases, coolant, and oil from mixing or leaking. It weighs 0.505 kg and is approximately 3mm thick. Choosing a genuine OEM cylinder head gasket ensures the correct material composition, precise thickness, and sealing properties vital for engine integrity and longevity.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 54 × 28.7 × 0.3 cm
- Shipping weight
- 0.51 kg
Parts diagram & fitment
5 vehiclesCylinder Head Gasket — locate 07K103383AF Audi Cylinder Head Gasket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by WHT007848D — the later replacement part.
Parts in this assembly(44)
- 1Cylinder Head 07K103064C
- 1Cylinder Head 07K103064D
- 3Cover 07K103925H
- 3Cover 07K103925G
- 4Cover 07K109283R
- 5Bolt N10653301
- 6Connection 07K103499A
- 7Part WHT000041
- 8Part 06D103251
- 9Bolt N90281802
- 10Cover WHT008983
- 10Cover 036103113A
- 11Seal D176501A1
- 12Bolt 06F103397
- 13Bolt N91250701
- 14Bolt N0443954
- 15Part D154108A2
- 15Part D000600A2
- 16Bolt N91127602
- 18Seal 07K109345
- 19Screw N10554005
- 20Bolt WHT007848D
- 21Bolt N91071701
- 22Sensor 06E919501C
- 22Sensor 06E919501D
- 23Cover 06K103485C
- 23Cover 06K103485D
- 24Part N0131994
- 26Sleeve 059103139B
- 27Bolt N91116001
- 28Stud N91250601
- 29Bungs 06H115418P
- 30Partition 06L103411C
- 31Tappets 06L109311
- 32Bolt N91148001
- 35Bracket 07K133163Q
- 36Retainer 07K133163H
- 37Bolt N10405604
- 38Collar Nut N01508210
- 39Grommet 1T0805673A
- 40Clip 06E971739
- 41Pipe 07K103281C
- 42Seal Ring 059133287C
- 43Bolt N10725401
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
07K103383AF Audi Cylinder Head Gasket | Genuine OEM is fitted on: Audi RSQ3 Sportback 2019-2024; Audi A3 Sportback 2019-2021; Audi RS3 Limousine 2017-2020; Audi TTRS Coupe 2016-2023; Formentor TSI CUPRA 2020-.
