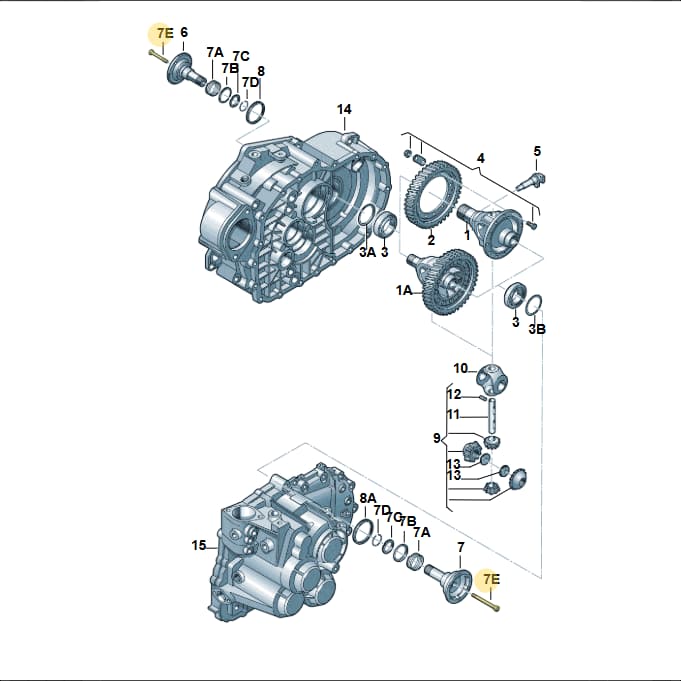

Number 7E marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Bolt, part number 097409359. This is a high-quality fastener designed for specific applications within the vehicle's drivetrain assembly. Bolts are critical for securing various components and ensuring the structural integrity of the assembly. Genuine OEM bolts are manufactured with precise thread pitch and material strength to guarantee reliable and safe fastening.
Technical details
- Category
- Suspension
- Country of origin
- Germany
- Customs (HS) code
- 73181568
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8.41 × 1.3 × 1.3 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
76 vehiclesScrew — locate 097409359 Volkswagen Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(22)
- 1Housing 02C409121A
- 2Part 02A409143K
- 2Gear Set 02A409143M
- 2Gear Set 02A409143R
- 3Fixing Set 02A498088A
- 4Thr Washer 02J409170
- 5Diff Pinio 02A498081
- 6In Shaft - Differential Pinion Shaft - 02A409177C
- 7Sleeve N90538701
- 8Circlip 012409413A
- 9Mounting 113517185B
- 10Shims 02A498210
- 11Seal 084409189B
- 11Seal 02A301189
- 12Flanshaft 02A409355A
- 13Drivewheel 02A409187B
- 14Pinion 02A409197
- 15Guide 02A409193
- 21Press Spring 084409379
- 23Ring 02A409374
- 24Circlip N90564501
- 26Part 097409373
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
097409359 Volkswagen Bolt | Genuine OEM is fitted on: Passat syncro 1991-1993; GOLF/Ecomatic 1991-1994; Golf/Var. syncro 1993-1997; Golf Cabrio 1994-1996; Passat 1994-1997; Jetta GLX 94 1993-1994; Passat Var.syncro 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; CADDY-KOMBI/KASTEN 1995-2003; Golf 1996-1997; GOLF VAR./VENTO 1996-1999; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf 1998-2000; New Beetle 1998-2001; Jetta Wagon 2001-2001; GOLF CABRIO 1998-2001; Passat 1997-2000; Passat/4Motion/W8 2000-2002; POLO CLASSIC/VARIANT 1996-1999; PASSAT 00> 2000-; SHARAN/4MOTION 2000-2002; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta USA 2001-2005; New Beetle 2001-2005; 3B0 platform; Golf BR/US 2001-2002; Golf "BR.","USA"03>07 2002-2007; Jetta/Wagon 2002-2006; PASSAT/4MOTION/W8 2002-2005; Golf 'R32' n. "USA" 2004-2004; SHARAN/4MOTION 2002-2005; SANTANA 2000 "CN"96>04 1996-2004; SANTANA 3000 "CN"04> 2004-; PASSAT LINGYU "CN."06> 2005-; 6K0 platform; caddy combi./del.van 1998-2005; Audi Cabrio. 1993-1998; Audi 80/90 1989-1991; Audi 100/Wagon 1989-1990; Audi 90 93 1992-1993; Audi 100/Wagon 92 1991-1992; Audi 100/Wagon 93 1992-1993; AUDI COUPE/3 1988-1994; Audi 100/Wagon 94 1993-1994; Audi 90 1993-1995; Audi A6/Wagon 95 1994-1995; Audi A4 F>8D-W-.. 1995-1997; Audi Coupe/3 1994-1995; Audi A6/Wagon 96 1995-1996; Audi A6/Wagon F >4A-W 1996-1997; AUDI A3/S3/QUATTRO 1996-2000; AUDI A3/S3/QUATTRO 2000-2003; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Avant 1999-2001; Audi TT Coupe/Roadster 1999-2002; Audi A6/Avant 1997-2001; Audi TT Coupe/Roadster 2002-2006; 1J0 platform; TOLEDO SEAT 1991-1996; TOLEDO SEAT MOD.97>99 1996-1999; TOLEDO/LEON/LEON-4 1998-2001; IBIZA/CORDOBA/VARIO 1996-1999; ALHAMBRA/4MOTION 2000-2002; IBIZA 2001-2005; TOLEDO/LEON/LEON-4 2001-2006; CORDOBA/SE241 2002-2005; ALHAMBRA/4MOTION 2002-2005; OCTAVIA/COMBI/4X4 1996-2000; FABIA/COMBI 1999-2004; OCTAVIA/COMBI/4X4 01> 2000-.
