Product overview
Genuine OEM Audi Front Final Drive Shaft Oil Seal, part number 09A409529C. This critical seal is designed to prevent oil leakage from the front final drive shaft, maintaining proper lubrication and protecting drivetrain components. Positioned at the final drive shaft, it forms a tight barrier against fluid loss. With a weight of 0.029 kg and dimensions of 69x69x8mm, this seal is manufactured from high-quality materials to withstand operating temperatures and pressures. Using a genuine OEM seal ensures precise dimensions and material composition, vital for long-term leak-free performance and protecting expensive drivetrain components.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Hungary
- Customs (HS) code
- 40169300
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6.9 × 6.9 × 0.8 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment

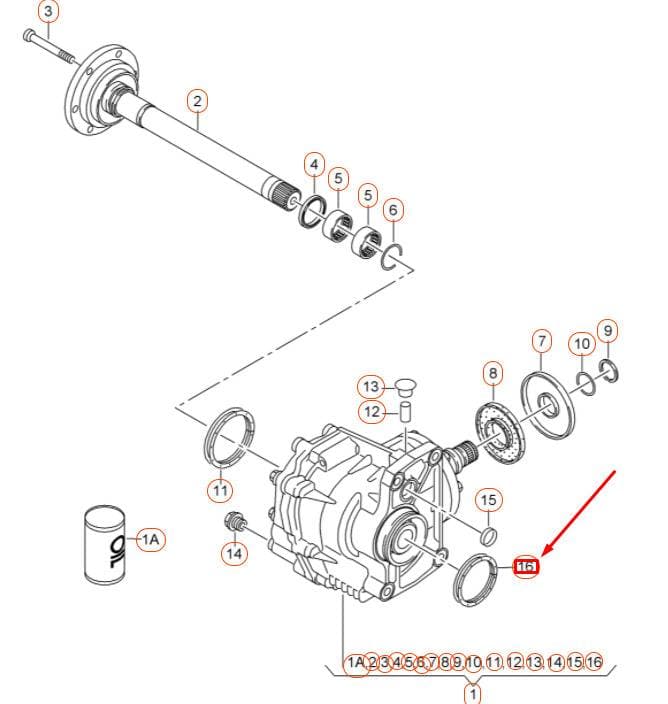

42 vehiclesShaft Oil Seal — locate 09A409529C Audi Front Final Drive Shaft Oil Seal | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(32)
- 1Gearbox 0CN409053AN
- 1Gearbox 0CN409053AP
- 2Flanshaft 02M409351M
- 2Flanshaft 0CN409351A
- 2Flanshaft 0FV409351
- 3Axle Oil G052145S2
- 4Seal Ring 02M409464
- 4Seal Ring 0CN409464
- 5Sleeve 012409139A
- 6Circlip 012409419
- 6Circlip 0CN409419
- 7Seal Ring N90357001
- 7Seal Ring N90999001
- 7Seal Ring WHT005785
- 9Bolt N10128110
- 9Bolt WHT005784
- 10Seal 02D525596F
- 10Seal 0CN525596B
- 11Seal 0CQ525596A
- 12Sleeve 02H409275A
- 14Bolt N90281802
- 15Cover N0119149
- 15Cover WHT005787
- 16Seal 0CN409529A
- 17Flange 02M409273D
- 17Flange 0CN409273
- 17Flange 0FV409273A
- 18Part N90443801
- 18Part WHT005781
- 25Screw 02E409359
- 26Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 27Seal Greas G055128A1
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
09A409529C Audi Front Final Drive Shaft Oil Seal | Genuine OEM is fitted on: Golf 2.0 BlueMotion 2019-2024; Caddy Maxi Kombi 2020-2024; Taos 1.4 2020-2024; Taos 1.4 2021-2023; Tiguan 2024-; Tayron 2018-; T-Roc 2018-; POLO HATCH "ZA"06> 2005-; Tharu 2018-2023; Caddy Maxi Kombi 2010-2015; Passat saloon 2010-2015; Tiguan 4Motion 2011-2018; Passat CC 2011-2016; Passat saloon 2014-2024; Tiguan 2016-2023; Tiguan 2.0 4Motion 2016-2022; T-Roc BlueMotion 2017-2024; golf 2.0 2016-2020; Tiguan 2.0 4Motion 2017-2024; caddy kombi 2015-2020; Tiguan 2.0 4Motion 2016-2024; Audi Q3 2.0 2019-; Audi A3 Sportback 2019-2021; Audi Q3 quattro 2018-2019; Audi A1 Sportback 2014-2018; Audi Q2 2.0 TDI 2016-2018; Audi TTS Coupe 2.0 2014-2023; Audi Q3 2.0 TDI 2014-2019; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Kodiaq 2018-2022; Octavia 2019-2024; Yeti 2013-2017; Kodiaq 2016-2024; Karoq 2017-2022; Superb Combi 2015-2024; ALTEA 07> 2006-; Tarraco FR 2018-2024; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; Leon ST Stylance 2016-2020; Ateca Style 2016-.
