Product overview
Genuine OEM Volkswagen Seal Ring, part number 09B409069. This seal ring is designed to prevent leaks and maintain proper lubrication within the transmission assembly. It is located within the transmission system. Genuine OEM parts ensure precise fit and reliable sealing.
Technical details
- Category
- Suspension
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.3 × 3.3 × 0.2 cm
- Shipping weight
- 0 kg
Parts diagram & fitment

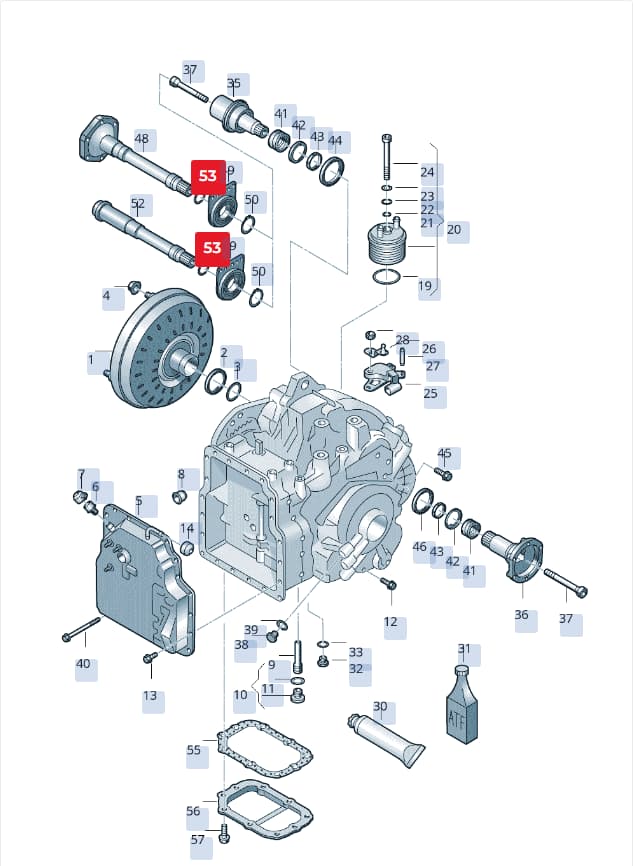

11 vehiclesSeal Ring — locate 09B409069 Volkswagen Seal Ring | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(47)
- 1Converter 09B323571A
- 1Converter 09B323571C
- 1Converter 09B323571
- 2Seal Washer 001321243A
- 3Seal Ring 001409069C
- 4Part N10169201
- 5Cover 09A321491
- 6Bungs 01M321432A
- 7Part 01M321435B
- 9Oil Pipe 09B321363
- 10Bolt N90414201
- 11Seal Ring N0138115
- 12Bolt N90495901
- 13Bolt N10156305
- 14Part 09A321435
- 19Seal Ring 001409069B
- 20Oil Cooler 09A409061
- 21Seal Ring 001409069
- 22Seal 001409539
- 23Washer 001301093B
- 24Screw 001409360A
- 26Lever 09A321171
- 28Collar Nut N10332001
- 30Seal D176404A2
- 31Atf Oil G052990A2
- 32Plug 001301143
- 33Seal Ring 001409069D
- 35Flanshaft 09A409356B
- 35Flanshaft 09A409356A
- 36Flanshaft 09A409355C
- 36Flanshaft 09A409355B
- 37Screw 09A409360
- 38Screw N90730601
- 39Seal Ring N90769601
- 40Bolt 09A409135
- 41Press Spring 09A409379
- 42Washer 09A409378
- 43Ring 09A409374
- 44Seal 09A409399
- 45Bolt 09A321373
- 48Flanshaft 09B409356
- 49Mounting 02G409335B
- 50Ring N0123761
- 52Flanshaft 09B409354
- 55Gasket 09B321371
- 56Oil Sump 09B321359
- 57Bolt 09B321373
Compatible / alternative parts(9)
Diagrams & fitment data powered by oemdiagrams.com
09B409069 Volkswagen Seal Ring | Genuine OEM is fitted on: SHARAN/4MOTION 2000-2002; Golf BR/US 2001-2002; Golf "BR.","USA"03>07 2002-2007; SHARAN/4MOTION 2002-2005; SHARAN/4MOTION 2005-; Sharan 2008-2010; ALHAMBRA/4MOTION 2000-2002; ALHAMBRA/4MOTION 2002-2005; ALHAMBRA/4MOTION 2005-; Alhambra 2006-2010; AUDI A3-BRASIL. 2000-2005.
