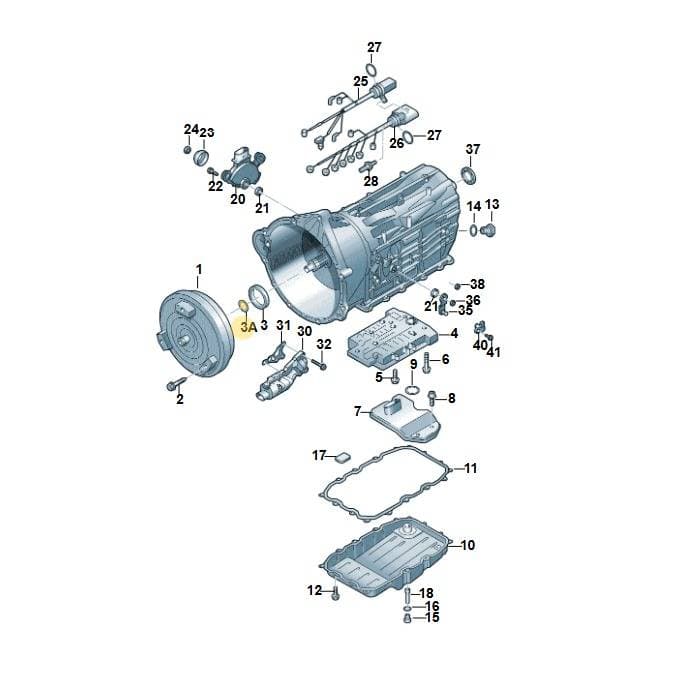

Number 3A marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seal Ring, part number 09D321181D. This seal ring creates a tight seal to prevent fluid leakage or contamination in the transmission system. It is located on the torque converter housing. Genuine OEM seals provide precise dimensions and material composition for long-lasting performance.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Japan
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 1.7 × 1.7 × 0.2 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
7 vehiclesSeal Ring — locate 09D321181D Volkswagen Seal Ring | Transmission in the official exploded view and explore the surrounding assembly.
Parts in this assembly(40)
- 1ConverterLeft09D323571Q
- 1ConverterLeft09D323571T
- 1ConverterRight09D323572
- 1ConverterRight09D323572A
- 1ConverterRight09D323572B
- 1ConverterRight09D323572C
- 1ConverterRight09D323572D
- 1ConverterRight09D323572E
- 1ConverterRight09D323572F
- 1ConverterRight09D323572G
- 1ConverterLeft09D323571M
- 2Screw N90691601
- 3Seal Washer 09D321243B
- 4Valve Body 09D325039X
- 4Valve Body 09D325039A
- 4Valve Body 09D325039AX
- 4Valve Body 09D325039B
- 4Valve Body 09D325039BX
- 4Valve Body 09D325039C
- 4Valve Body 09D325039CX
- 4Valve Body 09D325039D
- 4Valve Body 09D325039DX
- 4Valve Body 09D325039F
- 4Valve Body 09D325039FX
- 4Valve Body 09D325039
- 4ASwitch 09D919081
- 5Bolt WHT000311
- 6Bolt WHT000321
- 7Strainer 09D325435
- 8Bolt WHT000322
- 9Seal 09D325443
- 10Oil Sump 09D321361A
- 11Gasket 09D321371
- 12Bolt WHT000326A
- 13Screw WHT000323A
- 14Seal Ring 09D321379
- 15Screw WHT000206A
- 16Seal Ring 09D321181B
- 17Magnet 09D321368
- 29Bearing 09D311150
Compatible / alternative parts(12)
- Part N90691601
- Part 0C8321243
- Part 09D321243B
- Part 0539114931
- Part 059129601
- Part 7X0253111
- Part N0110081
- Part N01100813
- Part N01100818
- Part N0110082
- Part N01100830
- Part N01100840
Diagrams & fitment data powered by oemdiagrams.com
09D321181D Volkswagen Seal Ring | Transmission is fitted on: Touareg 2005-2006; Touareg 08> 2007-; touareg 2010-2012; touareg 2012-2014; Touareg BlueMotion 2014-2018; Audi Q7 07> 2006-; Audi Q7 qu. 3.0 TDI 2009-2015.
