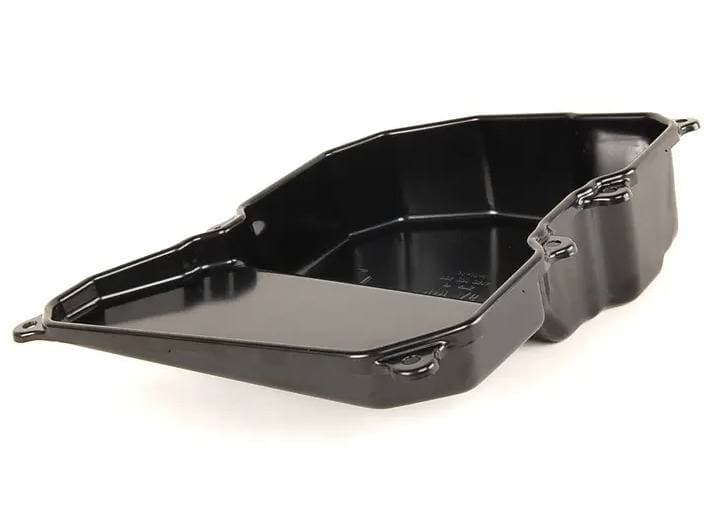

Genuine OEM Volkswagen Gearbox Oil Pan, part number 09G321361A. This component is designed to hold the transmission fluid, ensuring proper lubrication and cooling of internal gearbox components, while also protecting them from road debris. It measures approximately 0.325 m in length and weighs 1.366 kg, featuring a durable black finish. Choosing a genuine OEM oil pan ensures precise fitment, correct fluid capacity, and robust material construction to prevent leaks and protect the transmission.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Japan
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 32.5 × 26 × 6.5 cm
- Shipping weight
- 1.37 kg
Parts diagram & fitment
66 vehiclesTransmission Oil Sump — locate 09G321361A Volkswagen Gearbox Oil Pan | OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(35)
- 1Converter 09G323571E
- 2Seal Washer 09K321243
- 3Part N10169201
- 5Bolt WHT000309
- 6Seal 09G321370
- 7Magnet 09D321368
- 8Bolt WHT000315
- 9Strainer 09G325429
- 10Bolt WHT000311
- 11Valve Body 09G325039A
- 12Bolt WHT000307
- 12ABolt WHT000313
- 13Oil Pipe 09G321363
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Bungs 01M321432A
- 17Part 01M321435B
- 18Oil Cooler 09G409061
- 19Seal Ring 001409069B
- 20Seal Ring 001409069
- 21Seal 001409539
- 22Washer WHT000304
- 23Screw 09G409067
- 24Screw WHT000306
- 25Seal Ring 09G321379
- 26Seal 09G301189
- 31Seal Washer 09D321199
- 32Lever 09G321175
- 33Plate 09G321381
- 34Part WHT001425
- 35Spring 09G325417
- 36Spring 09K325233
- 37Piston 09K325215
- 38Pipe 09G321407
- 39Junction 09G409080
Compatible / alternative parts(11)
Diagrams & fitment data powered by oemdiagrams.com
09G321361A Volkswagen Gearbox Oil Pan | OEM is fitted on: Golf Brasil "BR."08> 2007-; TOURAN 2003-2005; GOLF 2003-2005; TOURAN (SVW) "CN"04> 2004-; Jetta "USA"05> 2005-; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; POLO 2005-; JETTA 06> 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; Golf/Rabbit 2005-2007; TOURAN 2005-2006; BORA-FAW "CN" 06> 2005-; POLO CLASSIC "ZA"05> 2005-; JETTA 06> 2006-; GOLF VARIANT 07> 2007-; TOURAN 2006-; Jetta Vagon 08> 2008-; MAGOTAN (PASSAT) 07> 2007-; Jetta City "Mex"08> 2007-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; bora 2008-2016; Passat CC 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; Polo 2008-2009; jetta 2008-2011; golf estate 2009-2013; jetta variant 2009-2014; Golf 2009-2014; New Passat 2011-2015; jetta 2010-2014; New Passat 2011-2019; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf 2011-2013; Sagitar 2011-; jetta 2013-2014; jetta 2014-2017; Beetle 2016-2019; new beetle cabriolet 2016-2019; Jetta 1.6 2014-2018; New Passat 2015-2022; jetta 2.0 2015-2015; OCTAVIA/COMBI/4X4 04> 2004-; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; OCTAVIA "CN."07> 2007-; superb comfort 2008-2013; octavia ambiente 2008-2013; Superb Ambition 2009-2015; Fabia Scout 2010-2014; Roomster 2010-2015; superb 2013-2015; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; ALTEA 07> 2006-; Altea XL Reference 2010-2013; Audi A3/S3/quattro 2005-2007; Audi A3/S3/Sportb./qu. 08 2007-.
