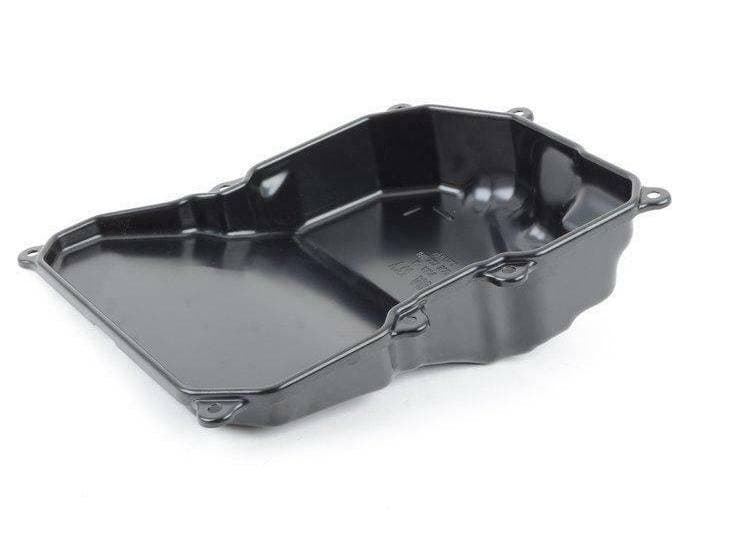

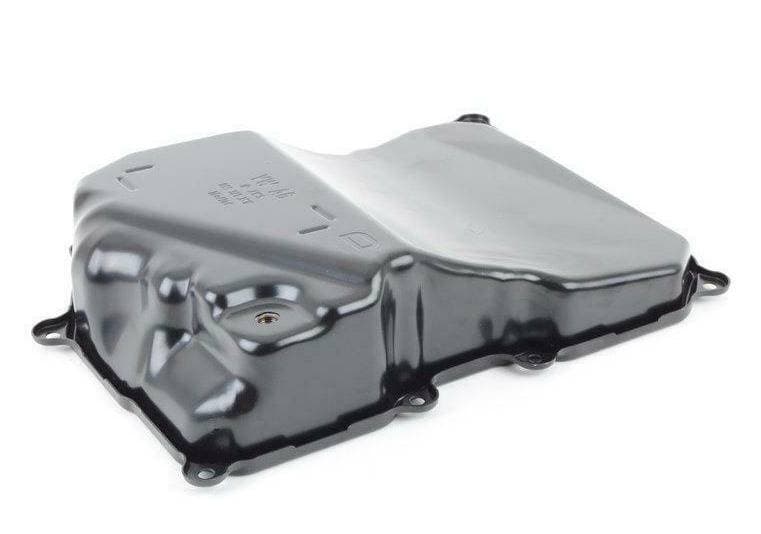

Genuine OEM Audi Automatic Transmission Oil Sump, part number 09G321361F. This essential component holds the automatic transmission fluid, which is vital for lubricating and cooling the transmission's internal parts. It is typically located at the bottom of the transmission housing. Weighing 1.336 kg, it is precisely formed to ensure a leak-free seal. Choosing a genuine OEM transmission oil sump guarantees the correct dimensions, material quality, and sealing surface, preventing fluid leaks and protecting the transmission.
Catalogue entry: OIL SUMP SCU,SWX.
Fitted with: 09D321368 MAGNET, 09G321361B OIL SUMP, WHT000309 BOLT, 09G321363K OIL PIPE, 09D321181B seal ring, WHT000310A SCREW, 09G321370 SEAL.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 87084099
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33 × 26 × 7.5 cm
- Shipping weight
- 1.34 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Gearbox codes
- SCU, SWX, UFA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

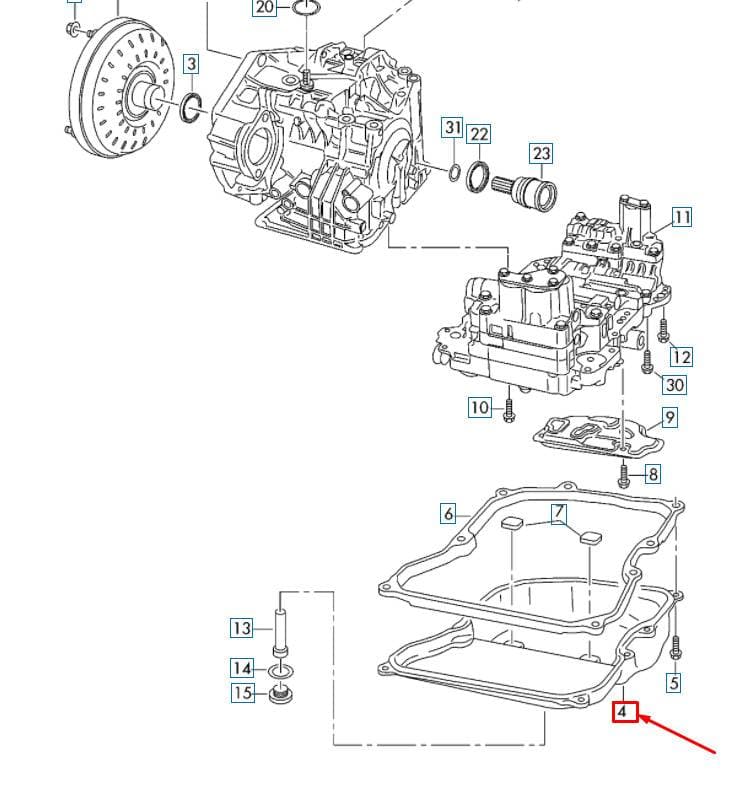

24 vehiclesTransmission Oil Sump — locate 09G321361F Audi Automatic Transmission Oil Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Converter 09G323571AA
- 2Part N10169201
- 3Seal Washer 09K321243
- 4Seal 09G301189
- 5Seal Ring 09G409528
- 6Switch 09G919823
- 7Screw WHT000310A
- 8Seal Washer 09D321199
- 9Lever 09G321175
- 10Plate 09G321381
- 11Part WHT001425
- 14Valve Body 09G325039F
- 15Bolt WHT000307
- 16Bolt WHT000313
- 17Bolt WHT000311
- 18Strainer 09G325429H
- 19Screw WHT001866
- 20Magnet 09D321368
- 22Bolt WHT000309
- 23Oil Pipe 09G321363H
- 24Seal Ring 09D321181B
- 26Wiring Set 09G927363F
- 27Bolt WHT000314
- 28Wiring Set 09G927363E
- 29Bolt N10642101
- 30Sender 09G927321D
- 31Bolt WHT000315
- 32Sender 0C8927321
- 33Bolt WHT000308
- 34Seal 09G321370
- 36Seal Ring WHT007120
- 40Oil Cooler 09G409061F
- 41Seal Ring 09G321181A
- 42Seal Ring 09G321181
- 43Cable Tie WHT008084
- 44Pipe 09G301472AF
Compatible / alternative parts(11)
Vehicle fitment table24
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Karoq | 2017-2022 | 21 | 1 | UFA | |
| Beetle | 2016-2019 | 21 | 1 | SCU,SWX | |
| new beetle cabriolet | 2016-2019 | 21 | 1 | SCU,SWX | |
| golf 1.6 | 2015-2019 | 4 | 1 | ||
| jetta 2.0 | 2015-2015 | 4 | 1 | QPA | |
| Golf 1.4 BlueMotion | 2014-2017 | 4 | 1 | SCV | |
| jetta | 2014-2017 | 4 | 1 | SCU,QPA | |
| Golf Estate 1.4 | 2014-2017 | 4 | 1 | QWJ,SCV | |
| Yeti | 2013-2017 | 4 | 1 | SCW |
Other markets (15)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Virtus 1,0 | 2022- | 4 | 1 | PR:T0R+G1A+ | |
| Taigun 1.0 | 2021- | 4 | 1 | PR:T0R+G1A+ | |
| Kushaq | 2021- | 21 | 1 | PR:T0R+G1A | G1A |
| Slavia | 2021- | 21 | 1 | PR:T0R+G1A | G1A |
| Taos 1.4 | 2021-2023 | 21 | 1 | UFA | |
| Nivus | 2020- | 4 | 1 | SHU,UHH,UKG, | |
| Taos 1.4 | 2020-2024 | 4 | 1 | ||
| jetta | 2019- | 4 | 1 | ||
| T-Cross 1,0 | 2019- | 4 | 1 | QWJ,SHU,UHH, | |
| Jetta 1.4 | 2017-2024 | 21 | 1 | QWJ,RJY,UHH, | |
| New Passat | 2015-2022 | 4 | 1 | RUY,SCU,SWX, | |
| Audi A3 Limousine 2.0 | 2015-2016 | 4 | 1 | ||
| Rapid Ambition | 2011-2021 | 4 | 1 | ||
| POLO HATCH "ZA"06> | 2005- | 21 | 1 | QWJ,SCV | |
| GOLF "ZA." | 2005-2007 | 4 | 1 | QWJ,SHU,UHH, |
Diagrams & fitment data powered by oemdiagrams.com
09G321361F Audi Automatic Transmission Oil Sump | Genuine OEM is fitted on: Karoq 2017-2022; Beetle 2016-2019; new beetle cabriolet 2016-2019; golf 1.6 2015-2019; jetta 2.0 2015-2015; Golf 1.4 BlueMotion 2014-2017; jetta 2014-2017; Golf Estate 1.4 2014-2017; Yeti 2013-2017; Virtus 1,0 2022-; Taigun 1.0 2021-; Kushaq 2021-; Slavia 2021-; Taos 1.4 2021-2023; Nivus 2020-; Taos 1.4 2020-2024; jetta 2019-; T-Cross 1,0 2019-; Jetta 1.4 2017-2024; New Passat 2015-2022; Audi A3 Limousine 2.0 2015-2016; Rapid Ambition 2011-2021; POLO HATCH "ZA"06> 2005-; GOLF "ZA." 2005-2007.
