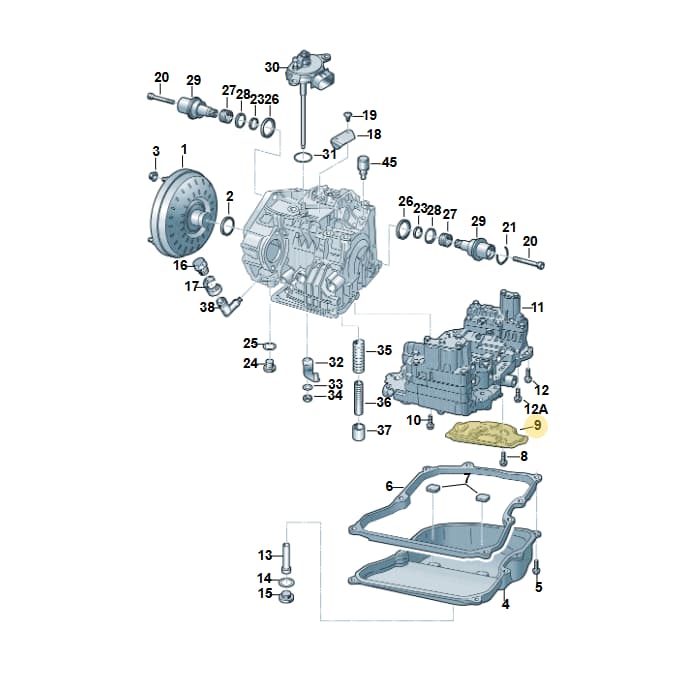

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Oil Strainer, part number 09K325429. This part functions to filter transmission fluid, ensuring the longevity and performance of the transmission. It is located within the transmission assembly. Genuine OEM parts are manufactured to exact specifications for optimal fit and function.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Japan
- Customs (HS) code
- 84212300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17 × 14 × 3.5 cm
- Shipping weight
- 0.24 kg
Parts diagram & fitment
14 vehiclesOil Strainer — locate 09K325429 Volkswagen Oil Strainer | Transmission in the official exploded view and explore the surrounding assembly.
Parts in this assembly(47)
- 1Converter 09K323571C
- 1Converter 09K323571D
- 1Converter 09K323571A
- 2Seal Washer 09K321243
- 2Seal Washer 09G321243
- 3Part N10169201
- 4Oil Sump 09K321361
- 5Bolt WHT000309
- 6Seal 09K321370
- 7Magnet 09D321368
- 8Bolt WHT000315
- 10Bolt WHT000311
- 11Valve Body 09K325039X
- 11Valve Body 09K325039A
- 11Valve Body 09K325039AX
- 11Valve Body 09K325039
- 12Bolt WHT000307
- 12ABolt WHT000313
- 12ABolt WHT001329
- 13Oil Pipe 09K321363
- 13Oil Pipe 09G321363A
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Bungs 01M321432A
- 17Part 01M321435B
- 18Plate 09K409157
- 19Bungs N90584102
- 20Bolt WHT001420
- 21Circlip 0A5409413A
- 23Ring 09K409374
- 24Screw WHT000306
- 25Seal Ring 09G321379
- 26Seal 09K301189
- 27Press Spring 09K323131
- 28Press Ring 09K323731
- 29Stub Shaft 09K409352
- 31Seal Washer 09D321199
- 32Lever 09G321175
- 33Plate 09G321381
- 34Part WHT001425
- 35Spring 09G325417
- 36Spring 09K325233
- 36Spring 09G325233
- 37Piston 09K325215
- 37Piston 09G325215
- 38Pipe 09K321407
- 45Adapter 09G301469A
Compatible / alternative parts(11)
Diagrams & fitment data powered by oemdiagrams.com
09K325429 Volkswagen Oil Strainer | Transmission is fitted on: TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009.
