Product overview

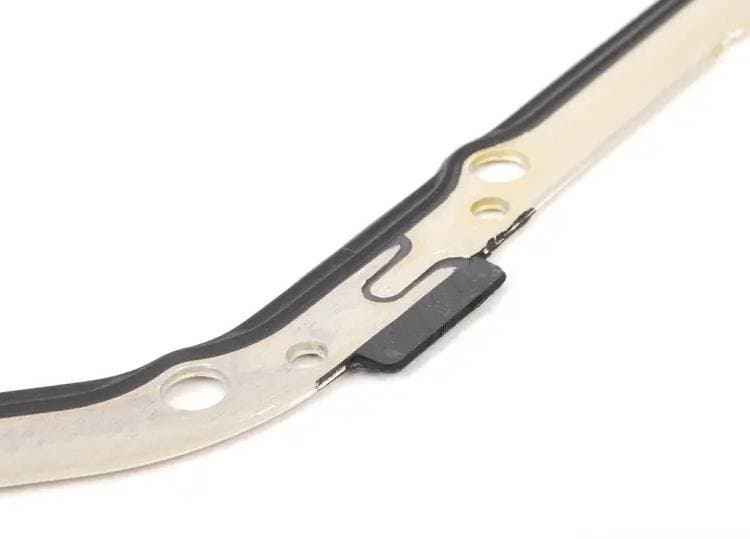

Genuine OEM Audi Oil Sump Gasket, part number 09L321371A. This gasket is crucial for creating a leak-proof seal for the engine oil sump, preventing oil loss and contamination. It measures approximately 0.49 meters in length and 0.30 meters in width, with a thickness of 0.002 meters, and weighs about 0.10 kg. Using a genuine OEM gasket ensures the correct material composition and precise dimensions for a perfect seal, preventing oil leaks and protecting engine components from damage.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Spain
- Customs (HS) code
- 40169300
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 49 × 30.1 × 0.2 cm
- Shipping weight
- 0.1 kg

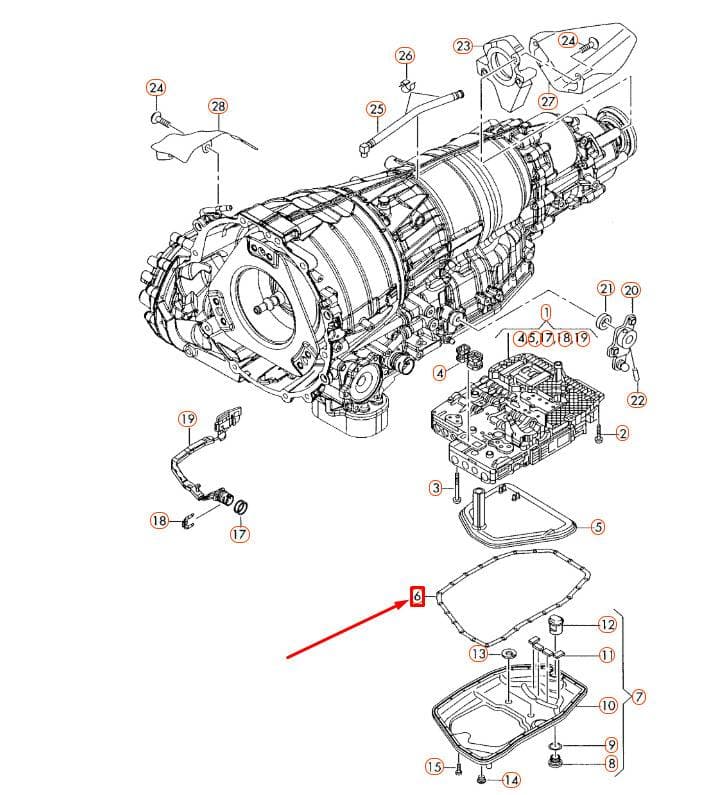

Parts diagram & fitment
13 vehiclesGasket For Oil Sump — locate 09L321371A Audi Oil Sump Gasket | Engine Sealing in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 2Screw WHT000488
- 3Screw 018325061B
- 4Seal 09L325443
- 5Strainer 09L325429
- 6Gasket 09L321371
- 7Oil Sump 09L321359
- 7Oil Sump 09L321359A
- 8Screw 01V321376
- 9Seal Ring 01V321379
- 14Bolt 018321377B
- 15Screw WHT000747
- 17Seal Ring 01V927322A
- 18Clip 01V971848
- 19Wiring Set 09E927363A
- 20Lever 09L321171B
- 21Seal Washer 09E409189
- 22Part 01V321546
- 23Plate 4E0301325A
- 24Screw N10578901
- 29Pipe 01V409847
- 30Breather 01V409845
Compatible / alternative parts(7)
Diagrams & fitment data powered by oemdiagrams.com
09L321371A Audi Oil Sump Gasket | Engine Sealing is fitted on: Audi A4/S4 Cabrio./qu. 2002-2006; Audi A8/S8/qu. lang 2003-2007; Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4/Av./qu. 05> 2005-; AUDI A6L "CN"05> 2005-; Audi A4/S4 Cabrio./qu. 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A8/S8/qu. lang 08> 2007-; Audi A6 2.7 TDI 2008-2011; Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
