Product overview

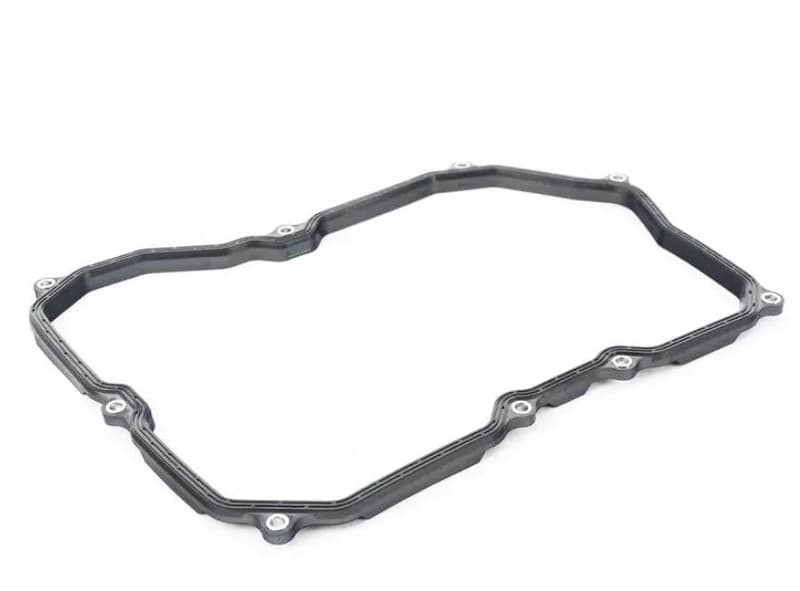

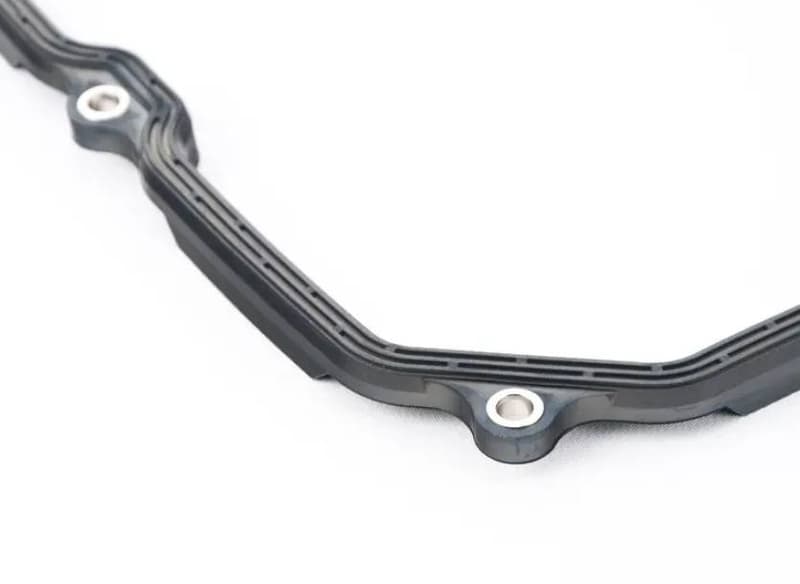

Genuine OEM Audi Transmission Oil Sump Gasket, part number 09P321370. This gasket is essential for sealing the transmission oil sump, preventing fluid leaks and maintaining the correct fluid level and pressure within the transmission. It measures approximately 0.40 meters in length and 0.25 meters in width, with a height of 0.017 meters, and weighs about 0.17 kg. Using a genuine OEM gasket ensures the correct material and precise dimensions for a perfect, long-lasting seal, critical for transmission health and longevity.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Japan
- Customs (HS) code
- 40169300
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40 × 25 × 1.7 cm
- Shipping weight
- 0.17 kg
Parts diagram & fitment
9 vehiclesSeal — locate 09P321370 Audi Transmission Oil Sump Gasket | Drivetrain Sealing in the official exploded view and explore the surrounding assembly.
Parts in this assembly(45)
- 1Converter 09P323571B
- 1Converter 09P323571E
- 1Converter 09P323571F
- 1Converter 09P323571L
- 1Converter 09P323571M
- 1Converter 09P323571N
- 2Seal Washer 09P321243
- 3Part N10169201
- 5Seal Washer 09P321243A
- 5Seal Washer 09P321243C
- 5Seal Washer 09P321243D
- 6Seal 09P301193A
- 7Switch 09G919823
- 8Seal Washer 09D321199
- 9Bolt WHT000325A
- 10Lever 09P321171
- 11Washer WHT000304
- 12Part WHT000303
- 13Adapter 09G301469A
- 13Adapter 09G301469B
- 15Seal Washer 09P321243B
- 17Valve Body 09P325039
- 18Bolt WHT000307
- 19Bolt WHT008567
- 20Strainer 09P325429
- 21Screw WHT001866
- 23Magnet 09P321368
- 24Bolt WHT000309
- 25Oil Sump 09P321361
- 26Screw WHT000310A
- 27Seal Ring 09D321181B
- 28Oil Pipe 09P321363
- 29Sender 09G927321D
- 30Sender 0C8927321
- 31Bolt WHT000308
- 32Bolt WHT008568
- 33Loom 09P927363
- 34Bolt WHT008576
- 35Lever 09P321175
- 36Plate 09G321381
- 37Part WHT001425
- 38Pipe 09P301472
- 39Cover 09P301160
- 40Cover 09P301160A
- 41Cover 09P301160B
Compatible / alternative parts(9)
Diagrams & fitment data powered by oemdiagrams.com
09P321370 Audi Transmission Oil Sump Gasket | Drivetrain Sealing is fitted on: Atlas Cross Sport 2019-2023; Atlas Cross Sport 2023-; Atlas 2023-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; Arteon 2017-2023; Atlas 2016-2023; Tiguan 2.0 4Motion 2017-2024; Audi Q3 quattro 2018-2019.
