Product overview

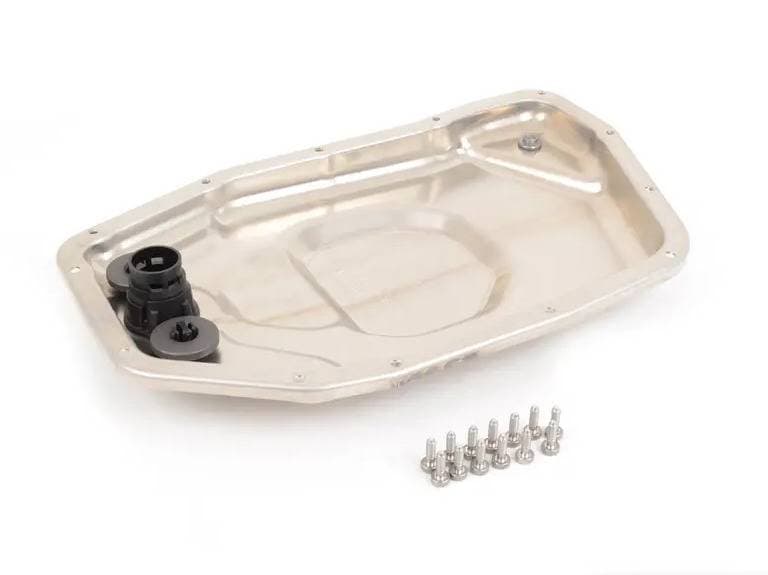

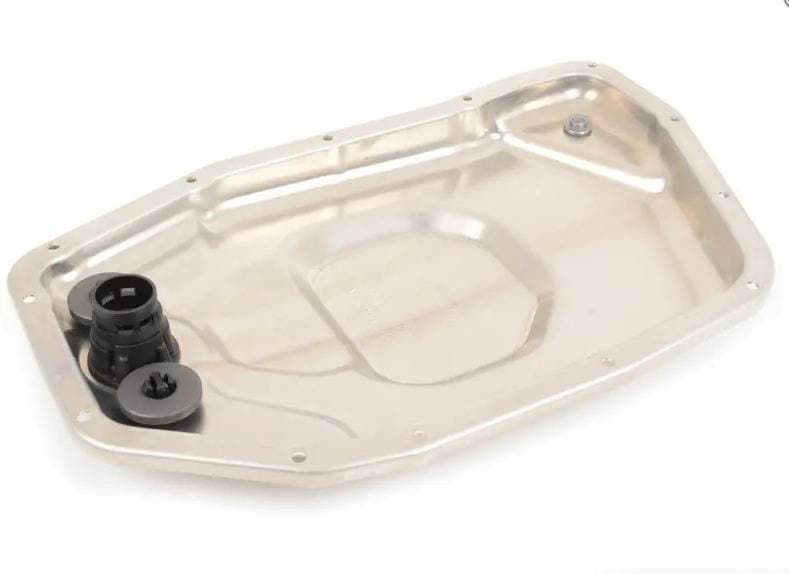

Genuine OEM Audi Transmission Oil Pan, part number 0B6321359. This essential component forms the bottom cover of the transmission, securely containing the transmission fluid and protecting internal gears and components. It often includes an integrated filter and gasket surface for proper sealing. Weighing 1.316 kg, this pan is constructed from durable metal. Choosing a genuine OEM transmission oil pan ensures precise dimensions, correct fluid capacity, and proper sealing to prevent leaks and maintain transmission health.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87084099
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 49 × 32.5 × 11 cm
- Shipping weight
- 1.32 kg
Parts diagram & fitment
5 vehiclesTransmission Oil Sump — locate 0B6321359 Audi Transmission Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 2Screw WHT000488
- 3Screw 018325061B
- 4Seal 09E325443A
- 5Strainer 0B6325429
- 6Gasket 09E321371A
- 8Bolt WHT004071
- 12Part 01V321432
- 13Magnet 09E321367
- 14Bolt WHT004072
- 15Screw 0B6398747
- 17Seal Ring 01V927322A
- 18Clip 01V971848
- 19Wiring Set 09E927363A
- 21Seal Washer 09E409189
- 22Part 01V321155
- 23Damper 0B6301307
- 24Screw N10578904
- 27Plate 8K0301325A
- 28Plate 8K0301325B
Diagrams & fitment data powered by oemdiagrams.com
0B6321359 Audi Transmission Oil Pan | Genuine OEM is fitted on: Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A4L 2.0 2008-2012; Audi A5 Cabrio 2.0 2008-2012.
