Product overview

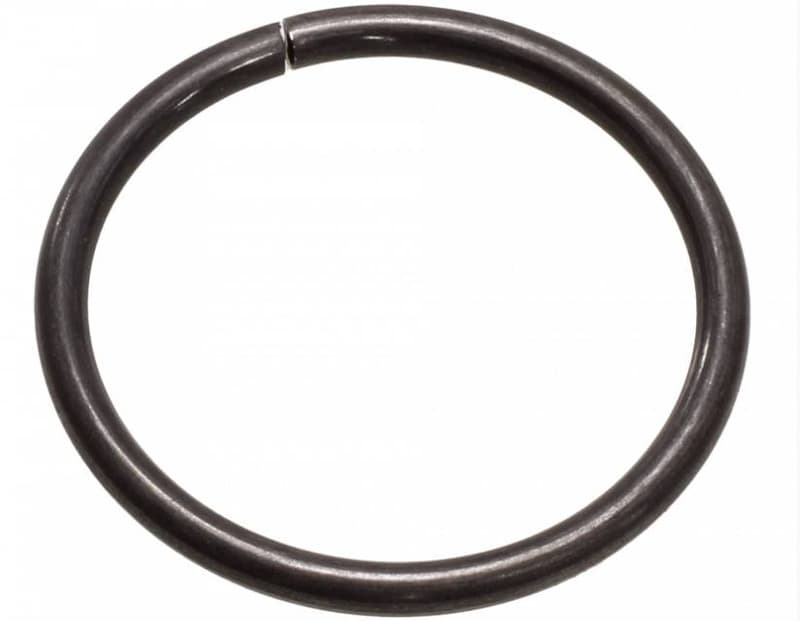

Genuine OEM Skoda Flanged Shaft Snap Ring, part number 0CN409419. This snap ring is designed to retain various components securely on a flanged shaft within the drivetrain. It functions by fitting into a groove on the shaft. Made from hardened steel for high tensile strength and resilience. Genuine OEM snap rings offer precise dimensions and material properties essential for preventing component dislodgement and ensuring drivetrain integrity.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 73182400
- Manufacturer
- Skoda
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3 × 3 × 0.3 cm
- Shipping weight
- 0 kg

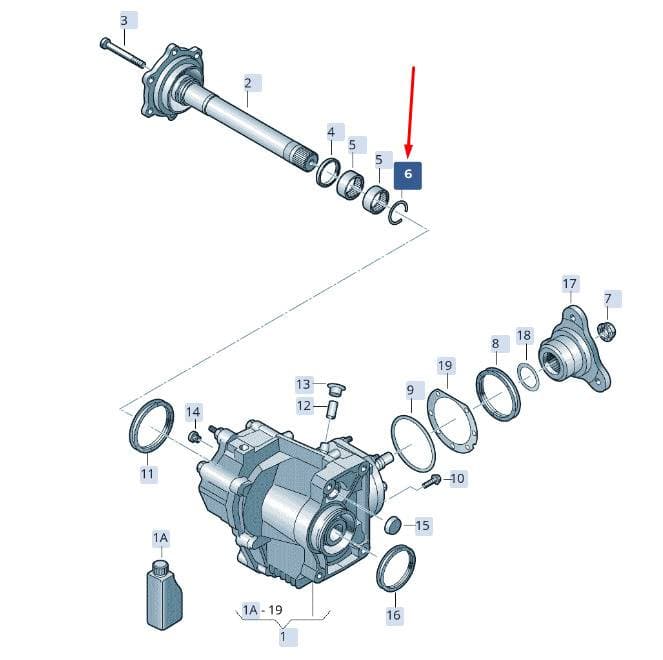

Parts diagram & fitment
51 vehiclesSnap Ring — locate 0CN409419 Skoda Flanged Shaft Snap Ring | Drivetrain in the official exploded view and explore the surrounding assembly.
Parts in this assembly(23)
- 1Gearbox 0FN409053B
- 1Gearbox 0FN409053C
- 2Flanshaft 0FN409356
- 2Flanshaft 0FN409356A
- 3Axle Oil G052145S2
- 4Seal Ring 0CN409464
- 5Sleeve 012409139A
- 7Seal Ring WHT008009
- 8Seal Ring WHT007545
- 10Bolt WHT005784
- 11Seal 0CP525596A
- 12Seal 0CQ525596A
- 13Sleeve 02H409275A
- 14Bolt N90281802
- 15Cover WHT005787
- 16Seal 0CN409529A
- 17Flange 0FN409273
- 18Washer WHT007547
- 19Circlip WHT006933
- 25Screw 02E409359
- 26Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 27Grease G000100
- 27Seal Greas G055128A1
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
0CN409419 Skoda Flanged Shaft Snap Ring | Drivetrain is fitted on: Golf 2.0 BlueMotion 2019-2024; Caddy Maxi Kombi 2020-2024; Taos 1.4 2021-2023; Tiguan 2.0 2023-; Atlas Cross Sport 2023-; Atlas 2023-2024; POLO HATCH "ZA"06> 2005-; Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Passat saloon 2014-2024; Golf Estate 1.4 2014-2017; Tiguan 2.0 4Motion 2016-2022; T-Roc BlueMotion 2017-2024; golf 2.0 2016-2020; Arteon 2017-2023; Tiguan 2.0 4Motion 2017-2024; Sharan BlueMotion 2015-2022; caddy kombi 2015-2020; Tiguan 2.0 4Motion 2016-2024; Audi RSQ3 Sportback 2019-2024; Audi Q6 2022-; Audi A3 Sportback 2019-2021; Audi Q3 quattro 2018-2019; Audi A1 Sportback 2010-2015; Audi A3 Sportback 2012-2016; Audi RSQ3 qu. 2.5 2013-2018; Audi A3 Cab. 1.4 2013-2016; Audi Q2 2.0 TDI 2016-2018; Audi TTS Coupe 2.0 2014-2023; Audi RS3 Limousine 2017-2020; Audi Q3 2.0 TDI 2014-2019; Audi RS3 Sportback 2015-2016; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi TTRS Coupe 2016-2023; Superb Combi 2023-; Kodiaq 2024-; Kodiaq 2018-2022; Octavia 2019-2024; Octavia 2012-2017; Yeti 2013-2017; Kodiaq 2016-2024; Octavia 2017-2020; Karoq 2017-2022; Superb Combi 2015-2024; Leon style 2019-; Formentor TSI CUPRA 2020-; Tarraco FR 2018-2024; Leon ST Stylance 2012-2016; Leon ST Stylance 2016-2020; Ateca Style 2016-.
