Target · Diagram
Find this reference above

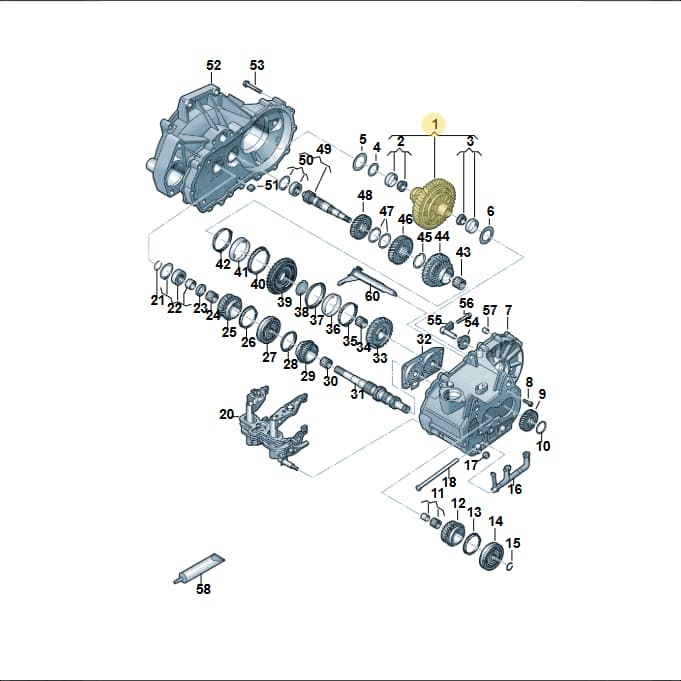

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Differential Housing, part number 0DF409021A. This housing encloses the differential gears, which allow wheels to rotate at different speeds during turns. It is a crucial part of the drivetrain assembly. The part weighs 5.645 kg and measures 0.17m x 0.17m x 0.13m. Genuine OEM differential housings are manufactured to exact specifications to maintain proper gear alignment and lubrication.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87085099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17 × 17 × 13 cm
- Shipping weight
- 5.65 kg
Parts diagram & fitment
7 vehiclesDifferential — locate 0DF409021A Volkswagen Differential Housing | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 4Washer WHT006154
- 5Washer WHT005403A
- 7Housing 0DQ301103D
- 8Bolt N90897305
- 9Gear 02T311361R
- 10Ring 085398008
- 11Bearing 085311431J
- 12Gear 02T311158AH
- 13Ring 02T311269G
- 14Synchr Hub 02T311241E
- 16Fork 02U311562H
- 17Collar Nut N02300313
- 18Part 02T301443A
- 20Fork 02U311490H
- 21Ring 02T398008
- 22Sleeve 02T311375K
- 23Washer 02T311155A
- 24Bearing 02T311132F
- 25Gear 02T311145S
- 26Ring 02T311269L
- 27Part 02T311301E
- 29Gear 02T311129AG
- 30Bearing 02T311265C
- 31Shaft 0AP311103B
- 32Support 02T311206J
- 33Gear 02T311251D
- 34Bearing 085311115
- 35Ring 085311277B
- 36Outer Ring 085311279B
- 37Ring 02T311247D
- 38Ring 085311317
- 39Synchr Hub 02T311239J
- 44Gear 02T311261AD
- 45Ring 02T311321
- 46Gear 02T311285P
- 47Ring 02T311317
- 48Gear 02T311351N
- 49Shaft 0AH311198J
- 50Sleeve 02T311372J
- 51Magnet 084301143A
- 52Housing 0DQ301107D
- 53Screw N10530304
- 54Rever Gear 02T311529L
- 55Gear Shaft 0AP311503
- 56Screw N91043701
- 57Sleeve WHT007083
- 58Seal Comp AMV18820003
- 60Drip Tray 02T301279A
Diagrams & fitment data powered by oemdiagrams.com
0DF409021A Volkswagen Differential Housing | Genuine OEM is fitted on: Polo Track 2023-; up! 1.0 TSI 2013-2017; up! 1.0 TSI 2017-2021; GOLF "ZA." 2005-2007; Polo 1.0 BlueMotion 2017-2024; Ibiza FR 2017-; fabia 2021-.
