Product overview
Genuine OEM Audi Gearbox Guard Plate, part number 0DK301325B. This protective component is designed to shield the upper section of the transmission assembly from impacts, road debris, and environmental elements, safeguarding critical internal components. It is positioned above the gearbox. Measuring 0.405m in length and weighing 0.571 kg, this plate is engineered for robust protection. Choosing a genuine OEM guard plate ensures precise mounting, correct material strength, and optimal coverage, providing essential protection for the sophisticated transmission system.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87084099
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40.5 × 32 × 11 cm
- Shipping weight
- 0.57 kg

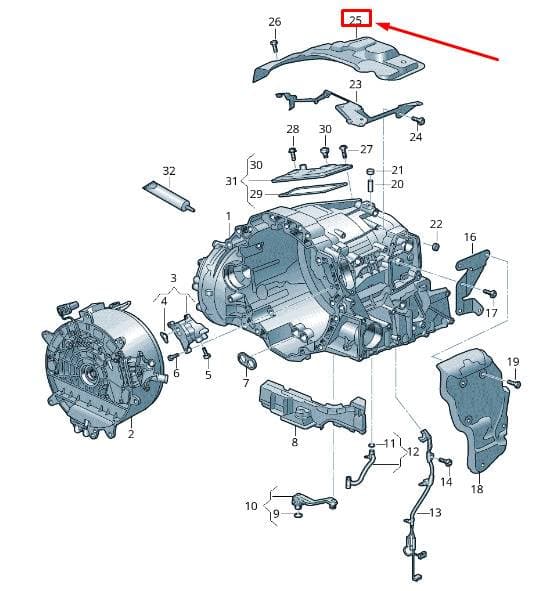

Parts diagram & fitment
4 vehiclesGuard Plate For Gearbox — locate 0DK301325B Audi Gearbox Guard Plate | Upper in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 3Control 0DK325497C
- 4Seal 0CK325446
- 5Screw N91215501
- 6Screw N91148201
- 7Grommet 0DK972921
- 8Lock 0DK315163
- 9Seal Ring WHT009273
- 10Pipe 0DK115251
- 11Seal Ring WHT003379C
- 12Pressure L 0DK301302
- 13Cable Set 0DK927415A
- 14Screw N91168701
- 16Bracket 0DK301951A
- 17Bolt N91069601
- 18Part Plate 0DK301326A
- 19Bolt N91078301
- 20Sleeve 02H409275A
- 21Ap Cap For Venting The Gearbox Cap For Venting 014301485D
- 22Cover 0DN301467
- 23Bracket 0DK301953C
- 28Bolt N10671702
- 29Seal 0DK901111
- 30Breather 0DK122444
- 31Cover 0DK901109
- 31Cover 0DK901109A
- 32Grease G000100
- 32Lubricant G055172A1
- 33Bolt N10451401
- 33Bolt N10632003
- 34Screw N91173601
Diagrams & fitment data powered by oemdiagrams.com
0DK301325B Audi Gearbox Guard Plate | Upper is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A6 L 2.0 2018-; Audi Q5 2016-2020.
